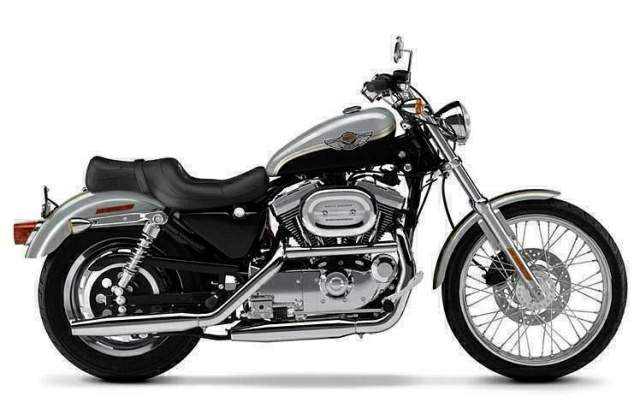

Harley-Davidson Harley Davidson XL 1200C Sportster Custom (1998-99) technical specifications
Harley-Davidson Harley Davidson XL 1200C Sportster Custom is produced in 1998-99. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 1199 cc / 73.2 cub in. , produces power 58.5 hp / 42.6 kW @ 5200 rpm and 87 Nm / @ 3900 rpm. Harley-Davidson Harley Davidson XL 1200C Sportster Custom weighs 251 kg / 554 lbs. Harley-Davidson Harley Davidson XL 1200C Sportster Custom has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson XL 1200C Sportster Custom |
| Years: | 1998-99 |
| Engine: | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder. |
| Capacity: | 1199 cc / 73.2 cub in. |
| Bore x Stroke: | 88.8 x 96.8 mm |
| Cooling System: | Air cooled, |
| Compression Ratio: | 9.7:1 |
| Induction: | Carburetor |
| Ignition: | Digital CDI |
| Starting: | Electric |
| Max Power: | 58.5 hp / 42.6 kW @ 5200 rpm |
| Max Torque: | 87 Nm / @ 3900 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.647 9.315 9.004 2nd 6.891 6.653 6.432 3rd 5.125 4.948 4.783 4th 4.248 4.102 3.965 5th 3.643 3.517 3.400 |
| Frame: | Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded |
| Front Suspension: | 39mm Forks |
| Rear Suspension: | Coil-over, dual-adjustable preload |
| Front Brakes: | Single 292mm discs 2 piston caliper |
| Rear Brakes: | Single 292mm disc 1 piston caliper |
| Front Tyre: | D402F MH90-21 54H |
| Rear Tyre: | D401 150/80B16 71H |
| Rake: | 30° |
| Trail: | 107 mm / 4.2 in |
| Dimensions: | Length 2293.6 mm / 90.3 in |
| Wheelbase: | 1534 / 60.4 in |
| Seat Height: | 710.0 mm / 28.0 in |
| Ground Clearance: | 110 mm / 4.3 in |
| Dry Weight: | 251 kg / 554 lbs |
| Wet Weight: | 267 kg / 589 lbs |
| Fuel Capacity: | 17 Litres / 4.5 gal |
