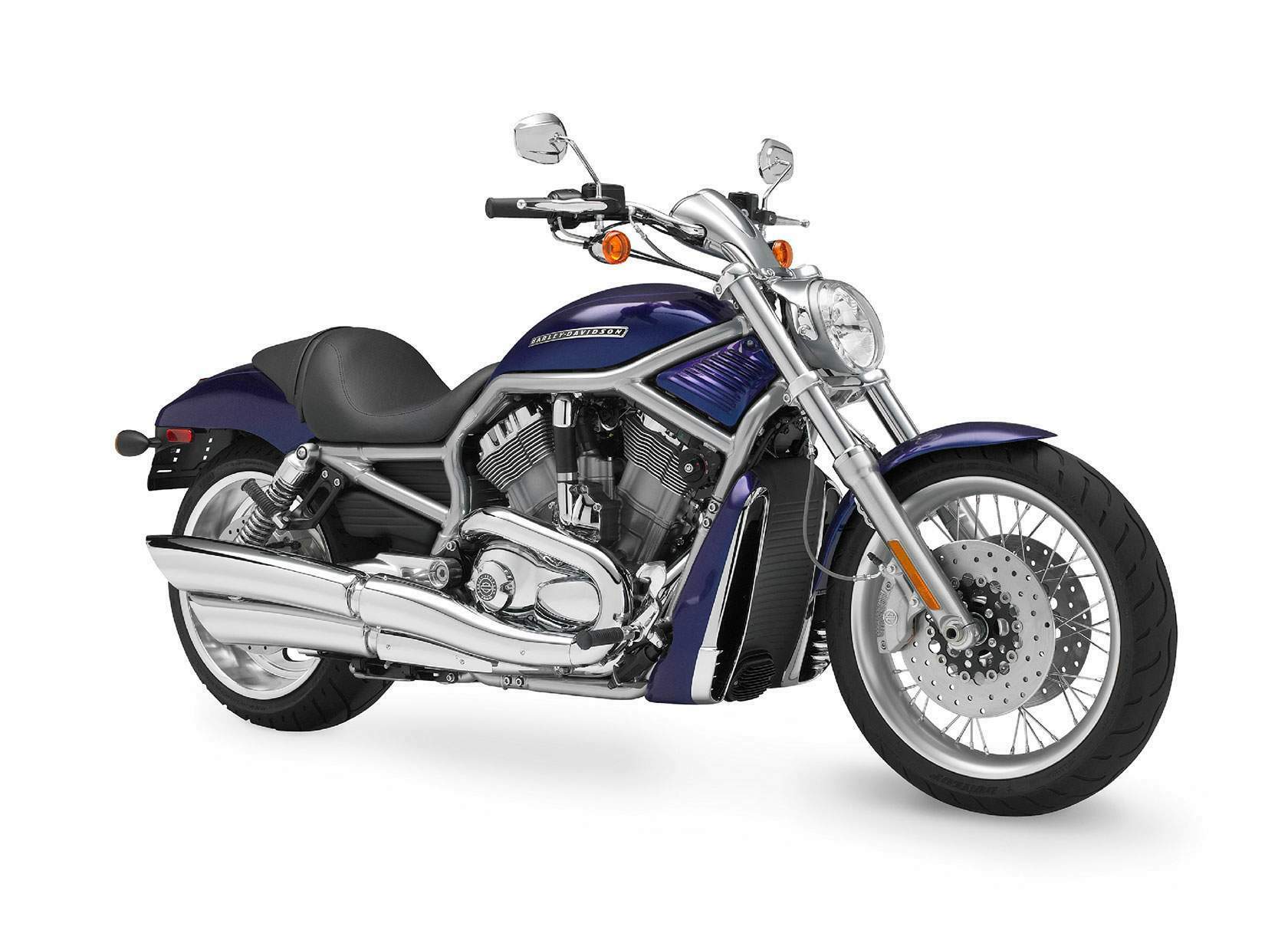

Harley-Davidson Harley Davidson VRSCAW/A V-Rod (2010) technical specifications
Harley-Davidson Harley Davidson VRSCAW/A V-Rod is produced in 2010. Engine is Four stroke, 60° V-twin, DOHC, 4 valve per cylinder., displacement 1250 cc / 76.2 cu-in , produces power 123 hp / 90.5 kW @ 8000 rpm and 115 Nm / 86 ft-lbs@ 7000 rpm. Harley-Davidson Harley Davidson VRSCAW/A V-Rod weighs 288 kg / 637 lbs. Harley-Davidson Harley Davidson VRSCAW/A V-Rod has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson VRSCAW/A V-Rod |
| Years: | 2010 |
| Engine: | Four stroke, 60° V-twin, DOHC, 4 valve per cylinder. |
| Capacity: | 1250 cc / 76.2 cu-in |
| Bore x Stroke: | 105 x 72 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 11.3;1 |
| Lubrication: | Gerotor, wet sump |
| Induction: | Electronic Sequential Port Fuel Injection |
| Ignition: | Sequential, single fire non waste spark, coil on plug |
| Battery: | Sealed,maintenance-free, 12-volt, 12 amp-hour, 200 cca (per Battery Council International rating) |
| Starting: | Electric |
| Max Power: | 123 hp / 90.5 kW @ 8000 rpm |
| Max Torque: | 115 Nm / 86 ft-lbs@ 7000 rpm |
| Clutch: | Nine plate wet pressure fed with integral compensation |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 11.752 10.969 10.969 2nd 7.898 7.371 7.371 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 5th 4.889 4.563 4.563 |
| Frame: | Steel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded |
| Front Suspension: | Huge 49mm telescopic forks |
| Front Wheel Travel: | 100 mm / 3.9 in |
| Rear Suspension: | Dual coil over adjustable shock |
| Rear Wheel Travel: | 70 mm / 2.7 in |
| Front Brakes: | 2x 300mm discs 4 piston calipers |
| Rear Brakes: | Single 300mm disc 4 piston caliper |
| Front Tyre: | 120/70 ZR19 |
| Rear Tyre: | 240/40 ZR18 |
| Rake: | 34° |
| Fork Angle: | 36° |
| Trail: | 114 mm / 4.5 in |
| Dimensions: | Length 2397.76 mm / 94.4 in Width 876.3 mm / 34.5 in Height 1211.58 mm / 47.7 in |
| Wheelbase: | 1706 mm / 67.2 in |
| Seat Height: | Laden 660.40 mm / 26 in Unladen 688.34 mm / 27.1 in |
| Dry Weight: | 288 kg / 637 lbs |
| Wet Weight: | 304 kg / 670 lb |
| Fuel Capacity: | 18.9 Litres / 5.0 US gal |
