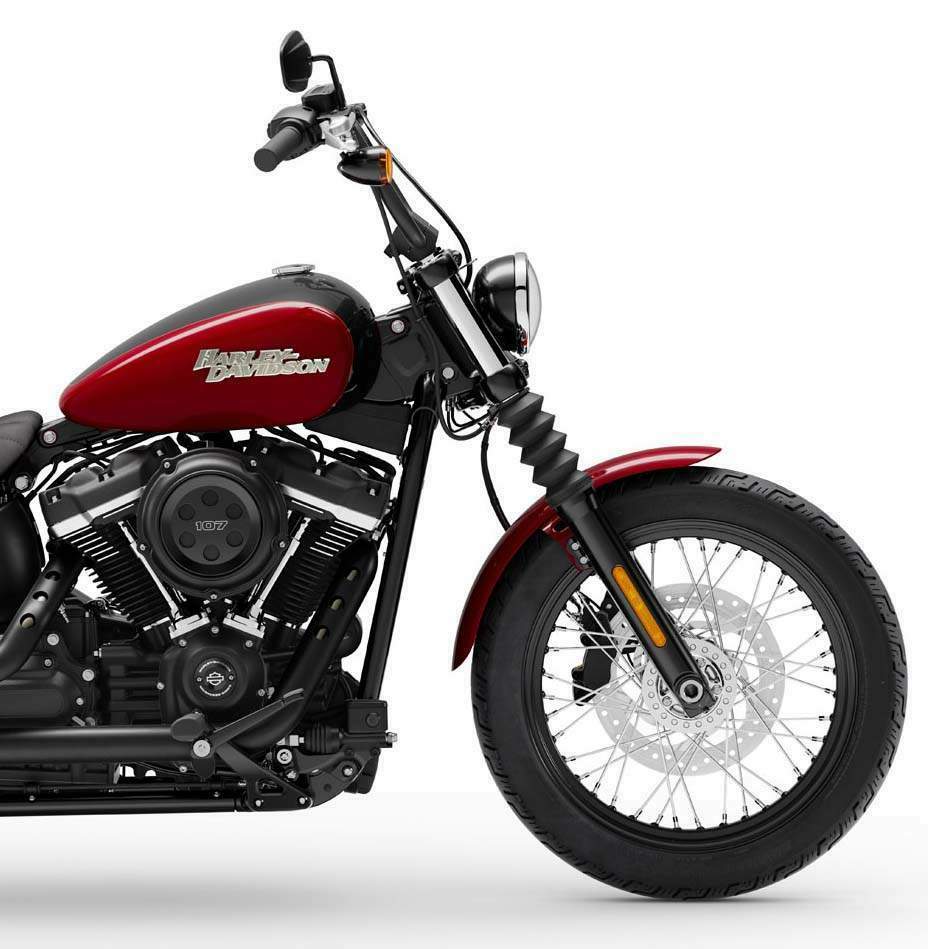

Harley-Davidson Harley Davidson Softail Street Bob (2020) technical specifications

Harley-Davidson Harley Davidson Softail Street Bob is produced in 2020. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in Harley-Davidson Harley Davidson Softail Street Bob weighs 286 kg / 630.5 lbs. Harley-Davidson Harley Davidson Softail Street Bob has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Softail Street Bob
Years:	2020
Engine:	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1746 cc / 107 cub in
Bore x Stroke:	100 x 111 mm
Cooling System:	Air cooled
Compression Ratio:	10.0:1
Exhaust:	2-into-1-into-2 dual side, catalyst in muffler
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Torque:	145 Nm / 107 ft-lb @ 3250 rpm
Clutch:	Multi-plate, wet
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Lean Angle, Left:	28.5º
Lean Angle, Right:	28.5º
Front Suspension:	Showa Inverted forks
Rear Suspension:	Mono Shock
Front Brakes:	Single disc, 4 piston caliper, fixed
Rear Brakes:	Single disc, 2 piston caliper, floating
Front Wheel:	9 Gloss Black, Steel Laced
Rear Wheel:	Gloss Black, Steel Laced
Front Tyre:	100/90B19,57H,BW
Rear Tyre:	150/80B16,77H,BW
Rake:	30°
Trail:	157 mm / 6.2 in
Dimensions:	Length: 2320 mm / 91.3 in
Wheelbase:	1630 mm / 64.2 in
Ground Clearance:	125 mm / 4.9 in
Seat Height:	Unladen 680 mm / 26.8 in
Gross Vehicle Weight Rating:	492.2 kg / 1085 lbs
Dry Weight:	286 kg / 630.5 lbs
Wet Weight:	297 kg / 654.7 lbs
Fuel Capacity:	13 2 Litres / 3.5 US gal
