Harley-Davidson Harley Davidson Softail Fat Boy (2013) technical specifications

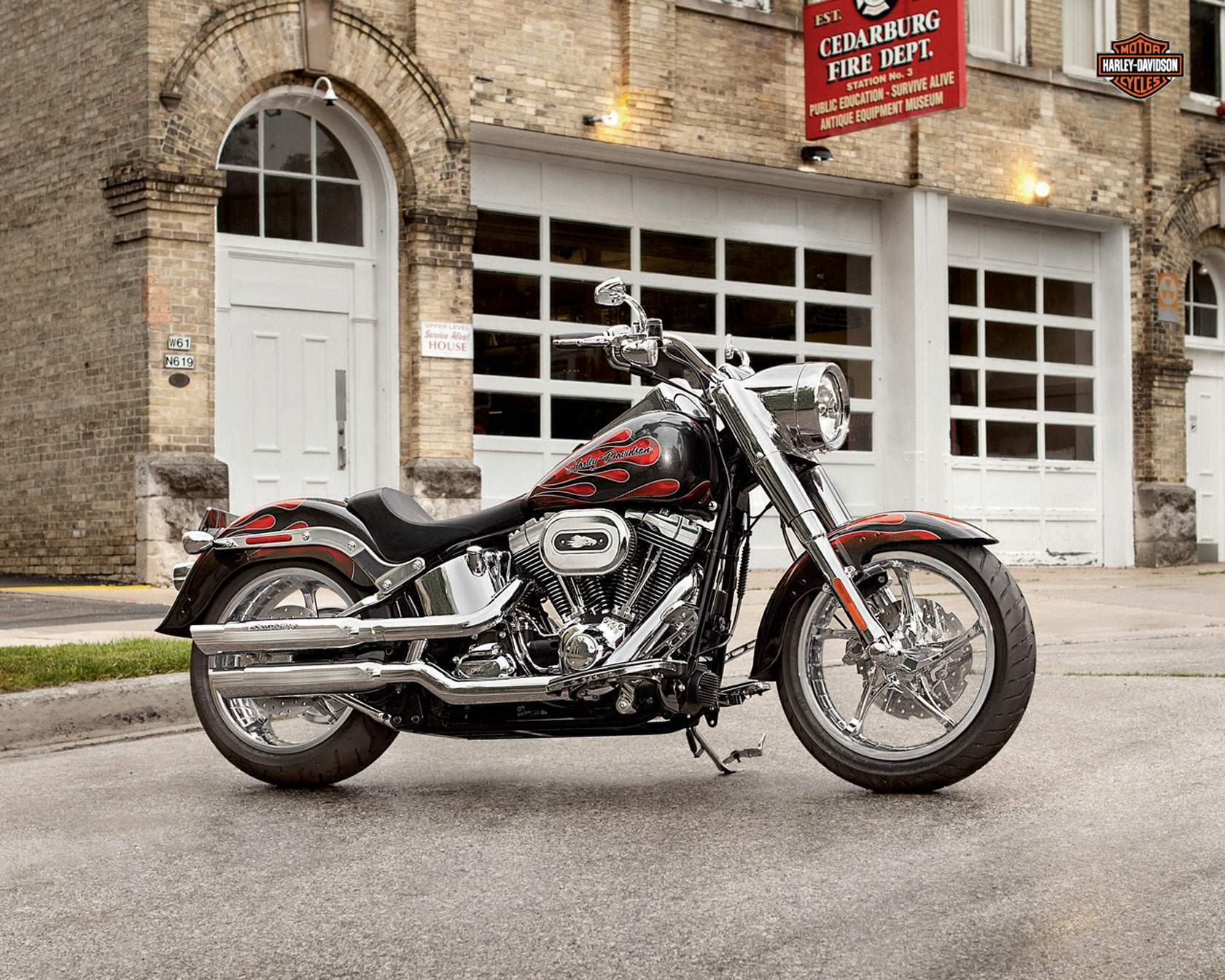

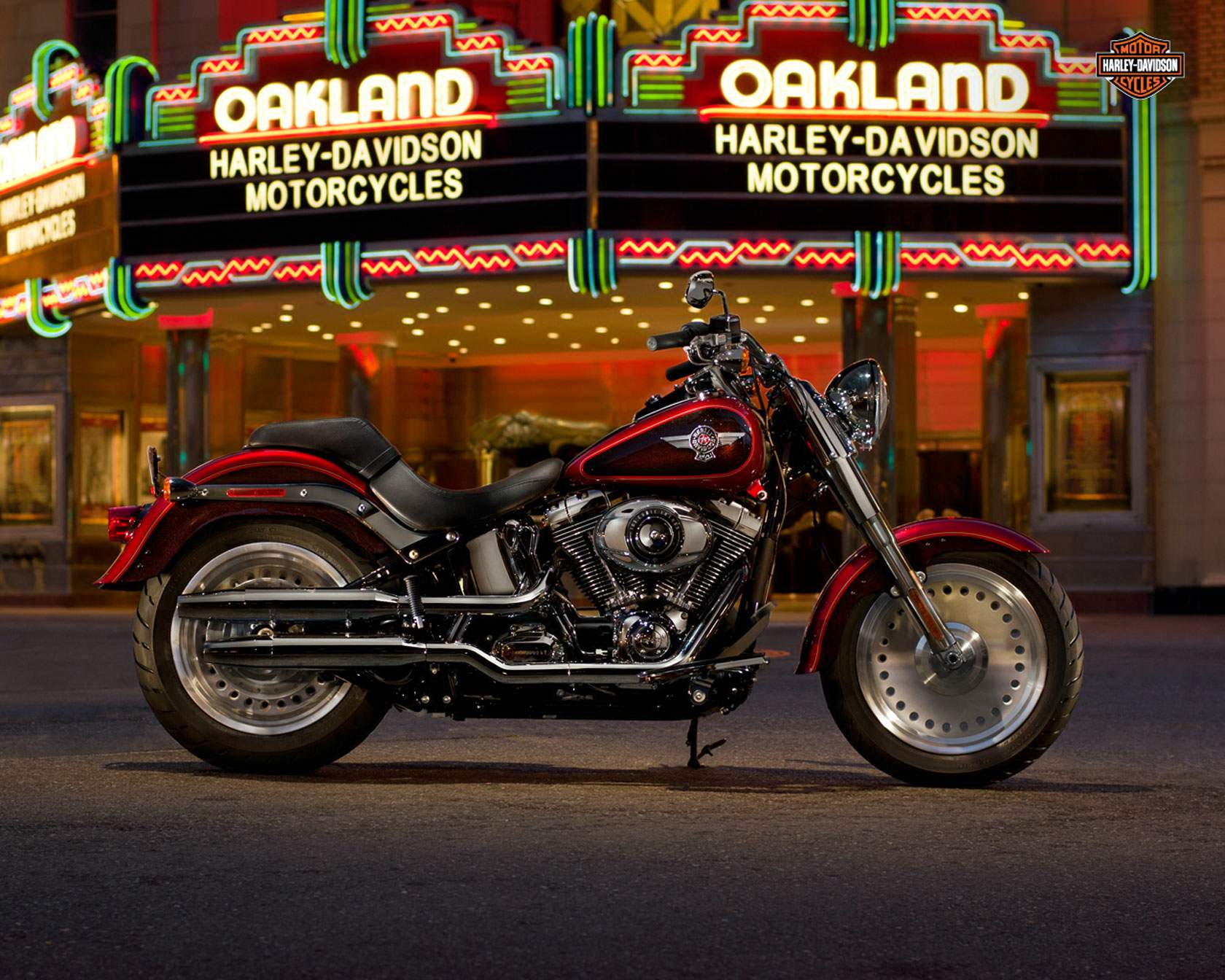

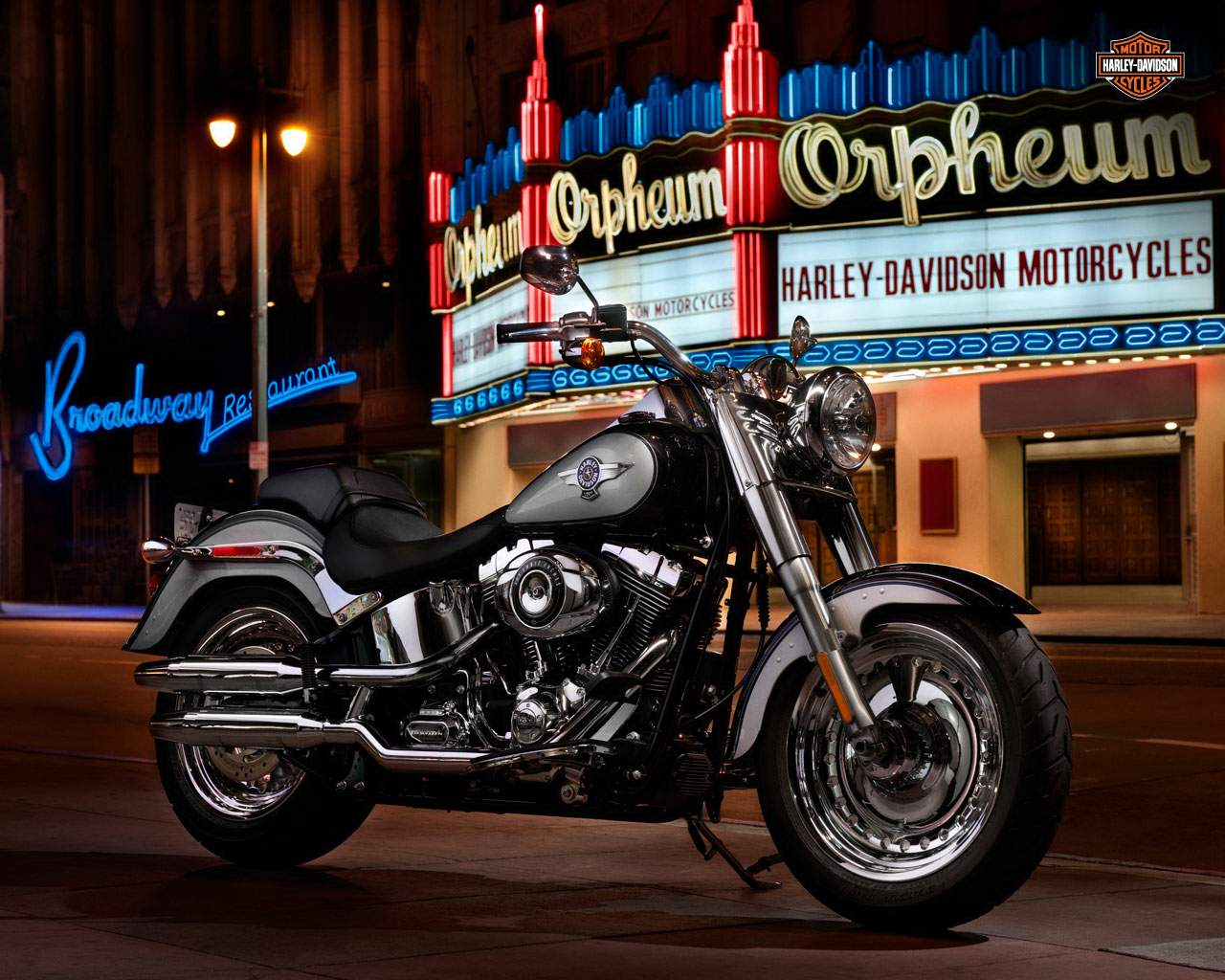

Harley-Davidson Harley Davidson Softail Fat Boy is produced in 2013. Engine is Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler, displacement 1690 cc / 103.1 cub in. Harley-Davidson Harley Davidson Softail Fat Boy wet weight is 329 kg / 725 lbs. Harley-Davidson Harley Davidson Softail Fat Boy has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson Softail Fat Boy |
| Years: | 2013 |
| Engine: | Four stroke, V-Twin, Twin Cam 103B Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder, with Integrated Oil-Cooler |
| Capacity: | 1690 cc / 103.1 cub in. |
| Bore x Stroke: | 98.4 x 111.1 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.6:1 |
| Exhaust: | Chrome, over/under shotgun exhaust with dual mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 134 Nm / 13.7 kgf-m / 98.8 ft. lbs @ 3500 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
| Front Suspension: | 41.3 mm telescopic, chrome dust covers |
| Rear Suspension: | Hidden, horizontal-mounted, coil-over shock |
| Front Brakes: | 2x Discs 4 piston caliper |
| Rear Brakes: | Single disc 2 piston caliper |
| Wheels: | Optional Style Type Mirror Polished Chrome, Bullet Hole Disc Cast Aluminum (front and rear) |
| Front Wheel: | Silver, Bullet Hole Disc Cast Aluminum |
| Rear Wheel: | Silver, Bullet Hole Disc Cast Aluminum |
| Front Tyre: | 140/75R17 67V |
| Rear Tyre: | 200/55R17 78V |
| Rake (steering head): | 31° |
| Trail: | 147 mm / 5.8 in |
| Dimensions: | Length 2396 mm / 94.3 in |
| Wheelbase: | 1635 mm / 64.2 in |
| Seat Height: | Laden 635 mm / 25.0 in Unladen 690 mm / 27.1 in |
| Gross Vehicle Weight Rating: | 526.0 kg / 1160 lbs |
| Wet Weight: | 329 kg / 725 lbs |
| Oil Capacity: | 3.3 Litres |
| Fuel Capacity: | 18.9 Litres / 5.0 US gal |
