Harley-Davidson Harley Davidson Softail Fat Bob 107 (2018-19) technical specifications

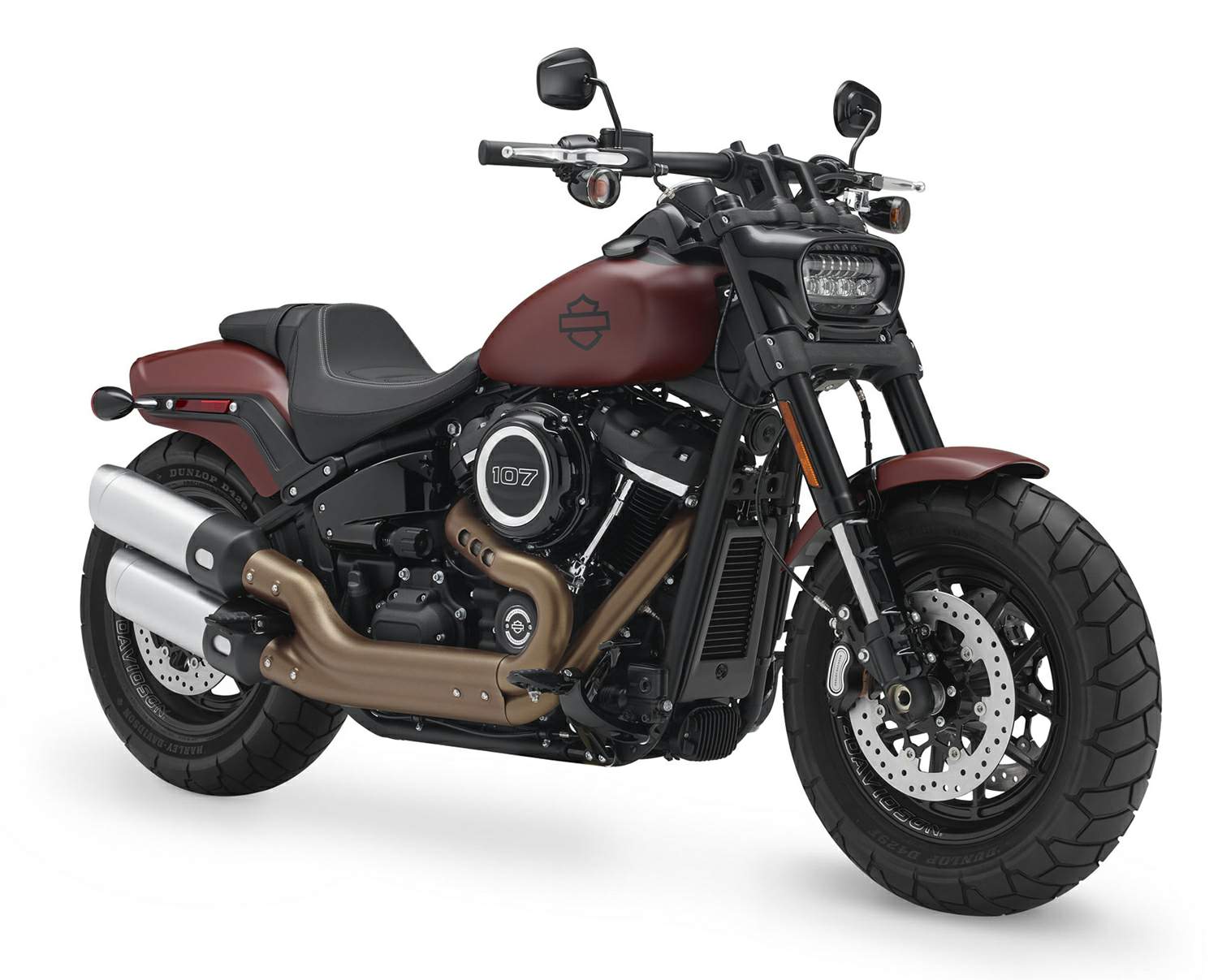

Harley-Davidson Harley Davidson Softail Fat Bob 107 is produced in 2018-19. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in Harley-Davidson Harley Davidson Softail Fat Bob 107 weighs 296 kg / 652.5 lbs. Harley-Davidson Harley Davidson Softail Fat Bob 107 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson Softail Fat Bob 107 |
| Years: | 2018-19 |
| Engine: | Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder |
| Capacity: | 1746 cc / 107 cub in |
| Bore x Stroke: | 100 x 111 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Exhaust: | 2-into-1-into-2 dual side, catalyst in muffler |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 145 Nm / 107 ft-lb @ 3250 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Primary Drive: | Chain, 34/46 ratio |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79 |
| Lean Angle, Left: | 32º |
| Lean Angle, Right: | 31º |
| Front Suspension: | Showa Inverted forks |
| Rear Suspension: | Mono shock adjustable |
| Front Brakes: | 2 x Disc, 4 piston caliper |
| Rear Brakes: | Single disc, 2 piston floating caliper |
| Front Wheel: | Denim black, Structure cast aluminum with laser etched graphics |
| Rear Wheel: | Denim black, Structure cast aluminium with laser etched graphics |
| Front Tyre: | 150/80-16,71H,BW |
| Rear Tyre: | 180/70B16,77H,BW |
| Rake (steering head): | 28° |
| Trail: | 132 mm / 5.2 in |
| Dimensions: | Length 2340 mm / 92.1 in |
| Wheelbase: | 1615 mm / 63.5 in |
| Seat Height: | Unladen 710 mm / 27.9 in |
| Ground Clearance: | 120 mm / 4.7 in |
| Dry Weight: | 296 kg / 652.5 lbs |
| Wet Weight: | 306 kg / 674.6 lbs |
| Fuel Capacity: | 13.6 Litres / US 3.6 gal |
