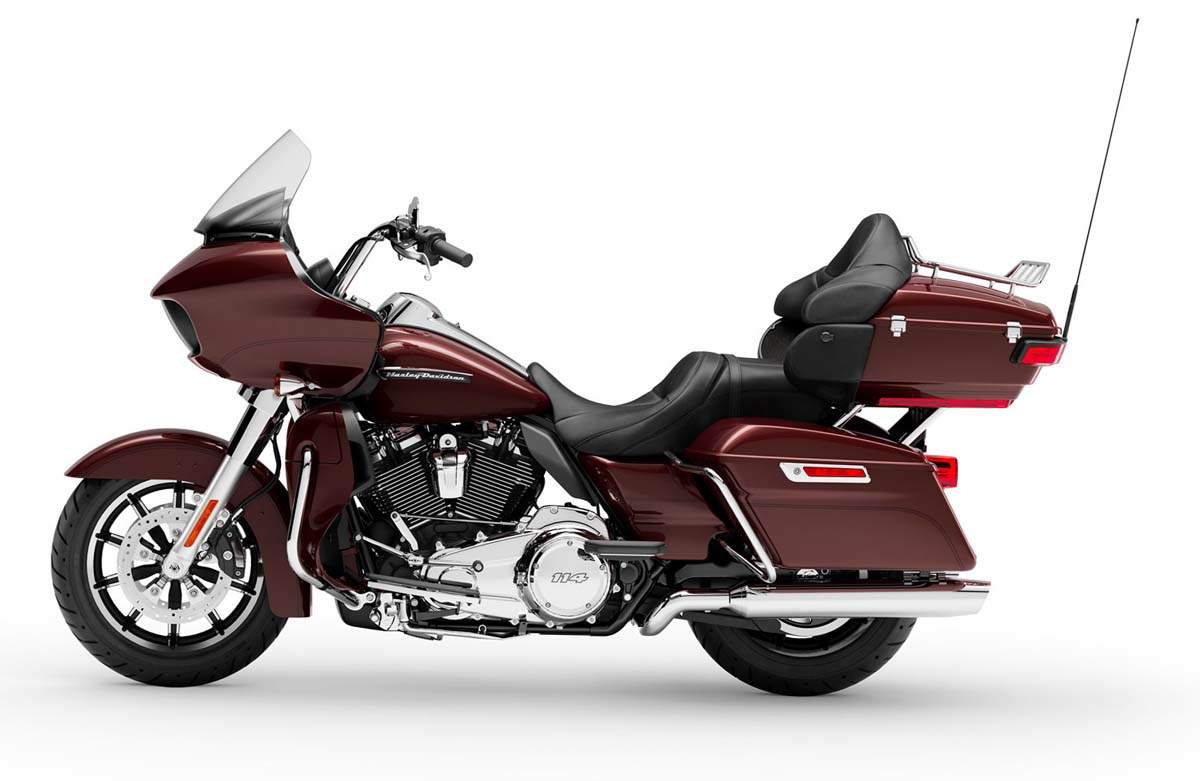

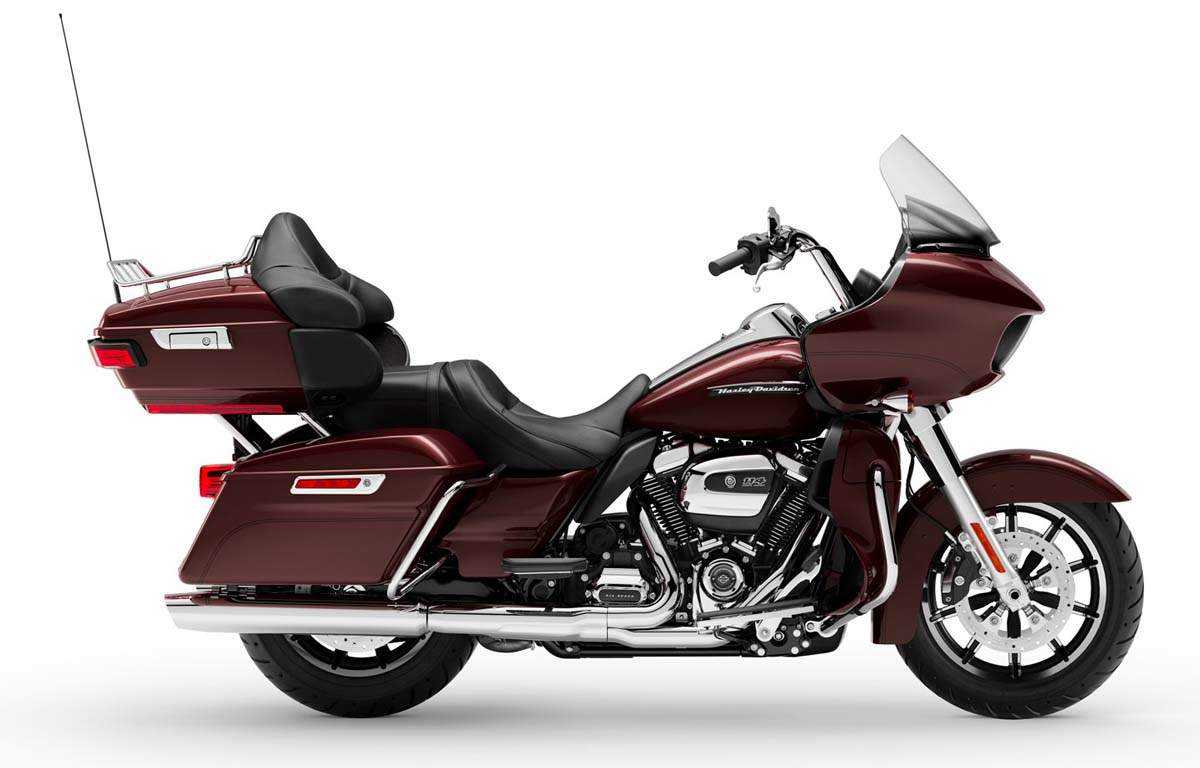

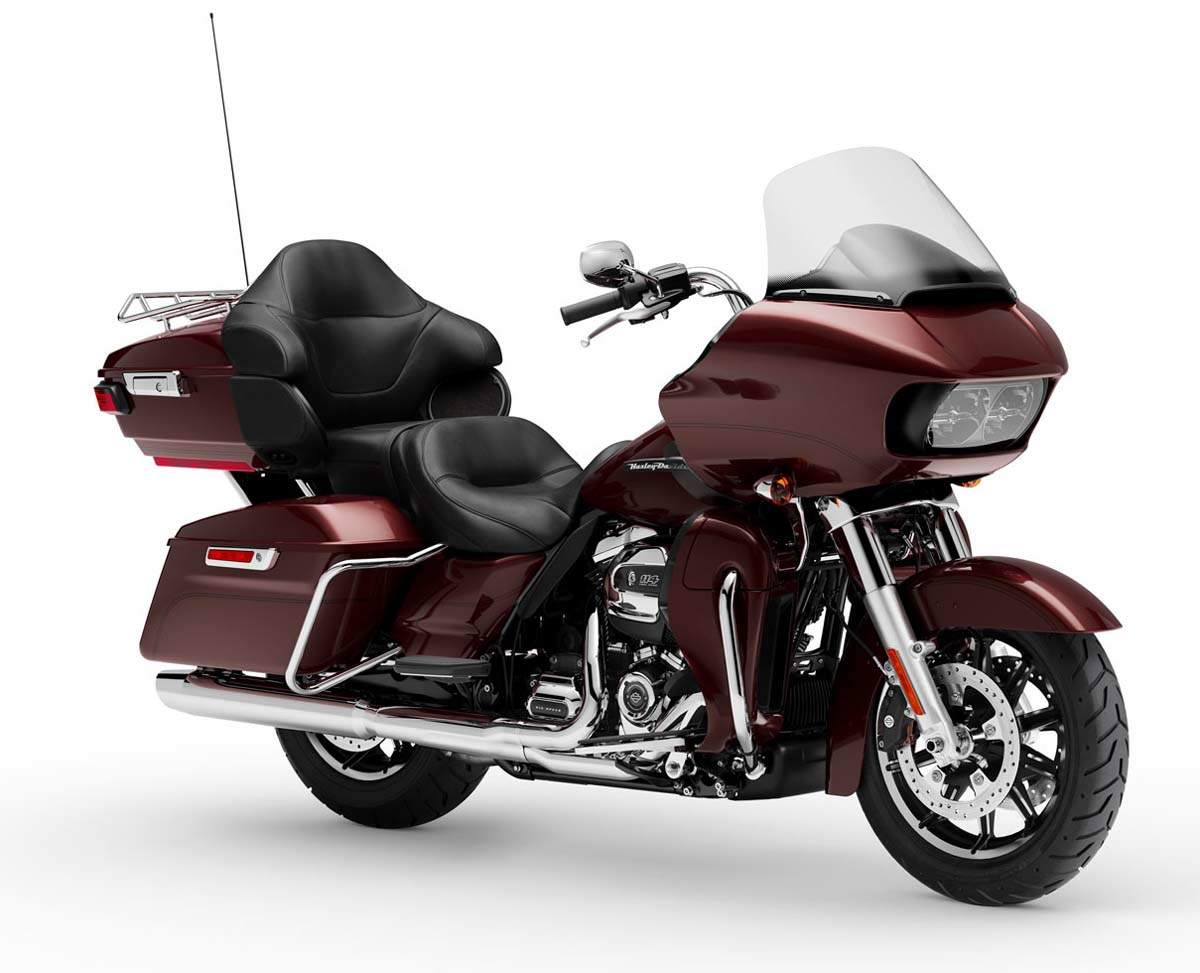

Harley-Davidson Harley Davidson Road Glide Ultra 114 (2019) technical specifications
Harley-Davidson Harley Davidson Road Glide Ultra 114 is produced in 2019. Engine is Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1868 cc / 114 cu in Harley-Davidson Harley Davidson Road Glide Ultra 114 weighs 408 kg / 889 lbs. Harley-Davidson Harley Davidson Road Glide Ultra 114 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson Road Glide Ultra 114 |
| Years: | 2019 |
| Engine: | Four stroke, V-Twin, Milwaukee-Eight 114, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder |
| Capacity: | 1868 cc / 114 cu in |
| Bore x Stroke: | 102 x 114 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.5:1 |
| Exhaust: | Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 167 Nm / 122 lb-ft @ 3250 rpm |
| Transmission: | 6 Speed |
| Primary Drive: | Chain, 34/46 ratio |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875 |
| Frame: | Mild steel, square-section backbone with twin downtubes |
| Lean Angle, Left: | 31.8º |
| Lean Angle, Right: | 31.9º |
| Front Suspension: | 41.3 mm Telescopic, cartridge-style damping |
| Rear Suspension: | Short, air-adjustable shock |
| Front Brakes: | 32 mm, 4-piston fixed caliper |
| Rear Brakes: | 32 mm, 4-piston fixed caliper |
| Wheels: | Optional Style Type: Tubeless Chrome Aluminum Profile Laced |
| Front Wheel: | Impeller Cast Aluminum |
| Rear Wheel: | Impeller, cast aluminum |
| Front Tyre: | BW 130/80B17 65H |
| Rear Tyre: | BW 180/65B16 81H |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in |
| Dimensions: | Length 2595 mm / 102.1 in |
| Wheelbase: | 1625 mm / 64.0 in |
| Seat Height: | Unladen 735 mm / 28.9 in Laden 690mm / 27.2 in |
| Ground Clearance: | 130 mm / 5.1 in |
| Gross Vehicle Weight Rating: | 616.9 kg / 1360 lbs |
| Dry Weight: | 408 kg / 889 lbs |
| Wet Weight: | 425 kg / 937 lbs |
| Oil Capacity: | 4.7 Litres / 5 US qts |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
