Harley-Davidson Harley Davidson Road Glide ST (2022) technical specifications

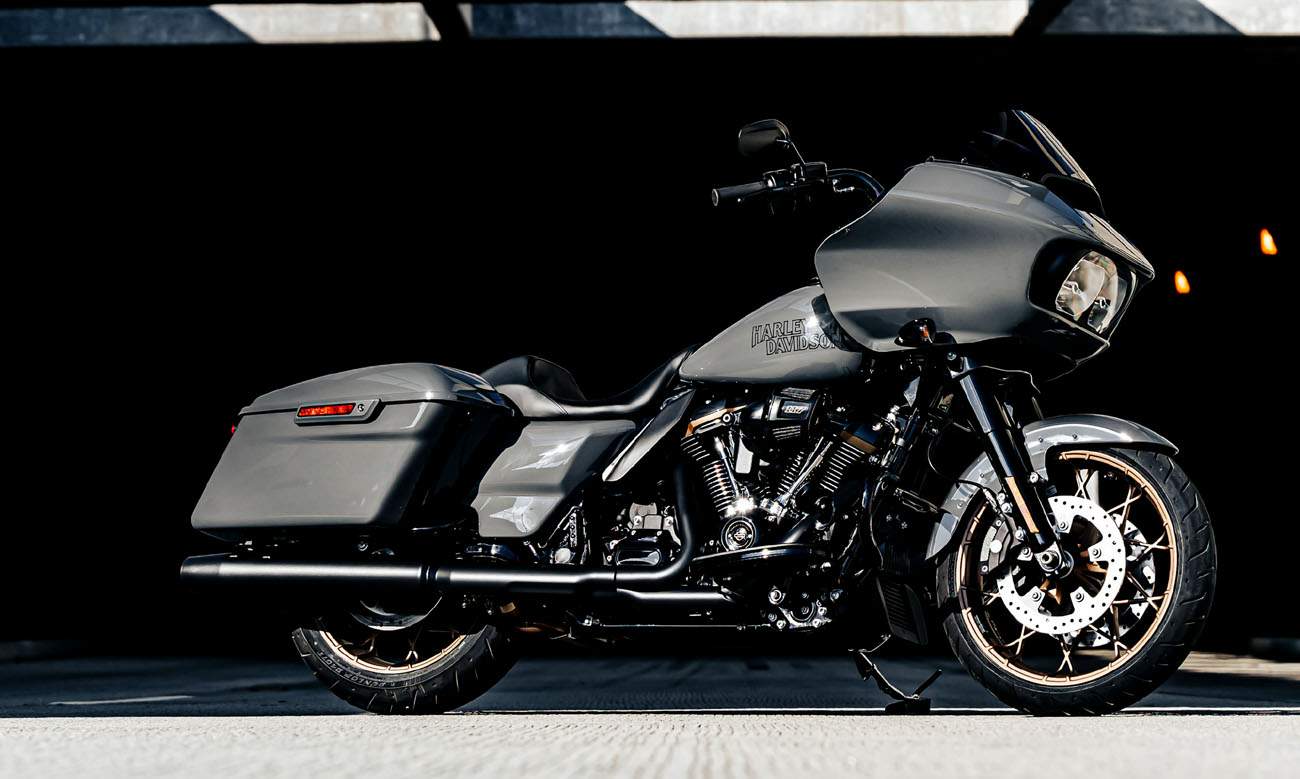

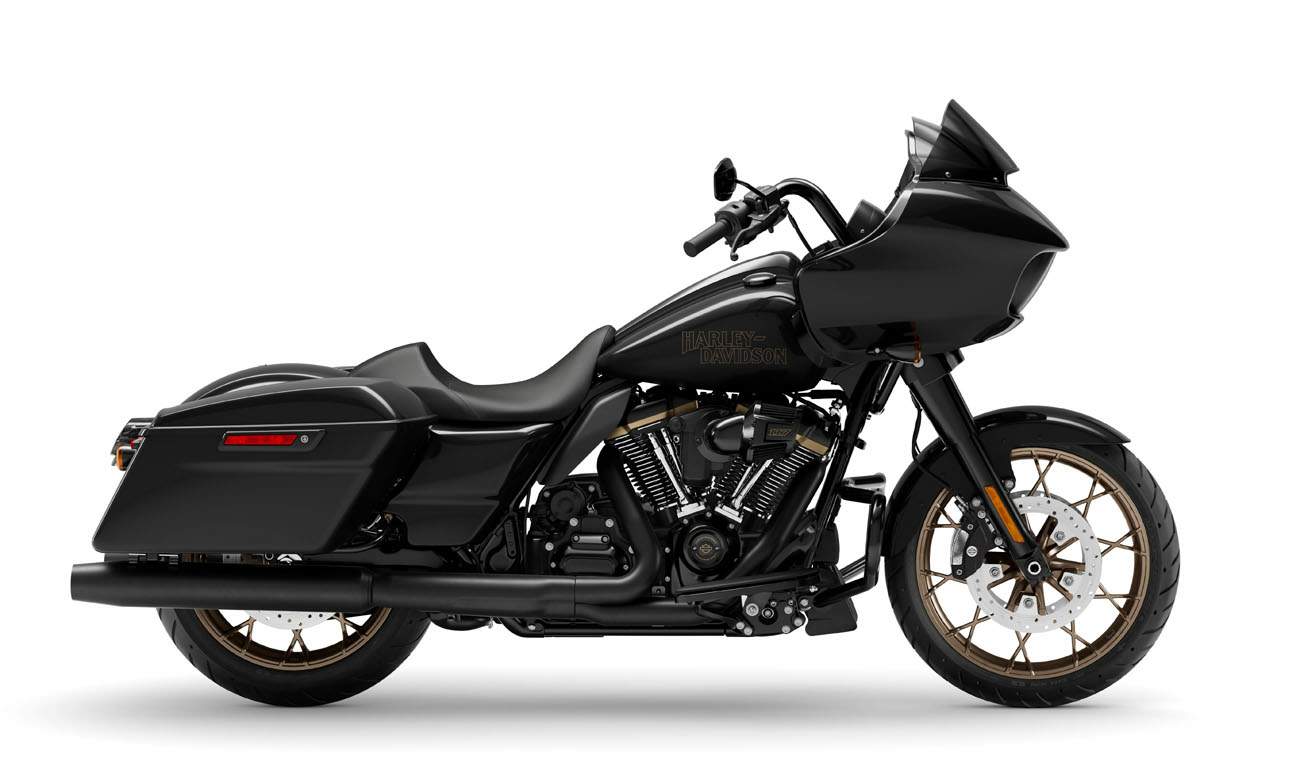

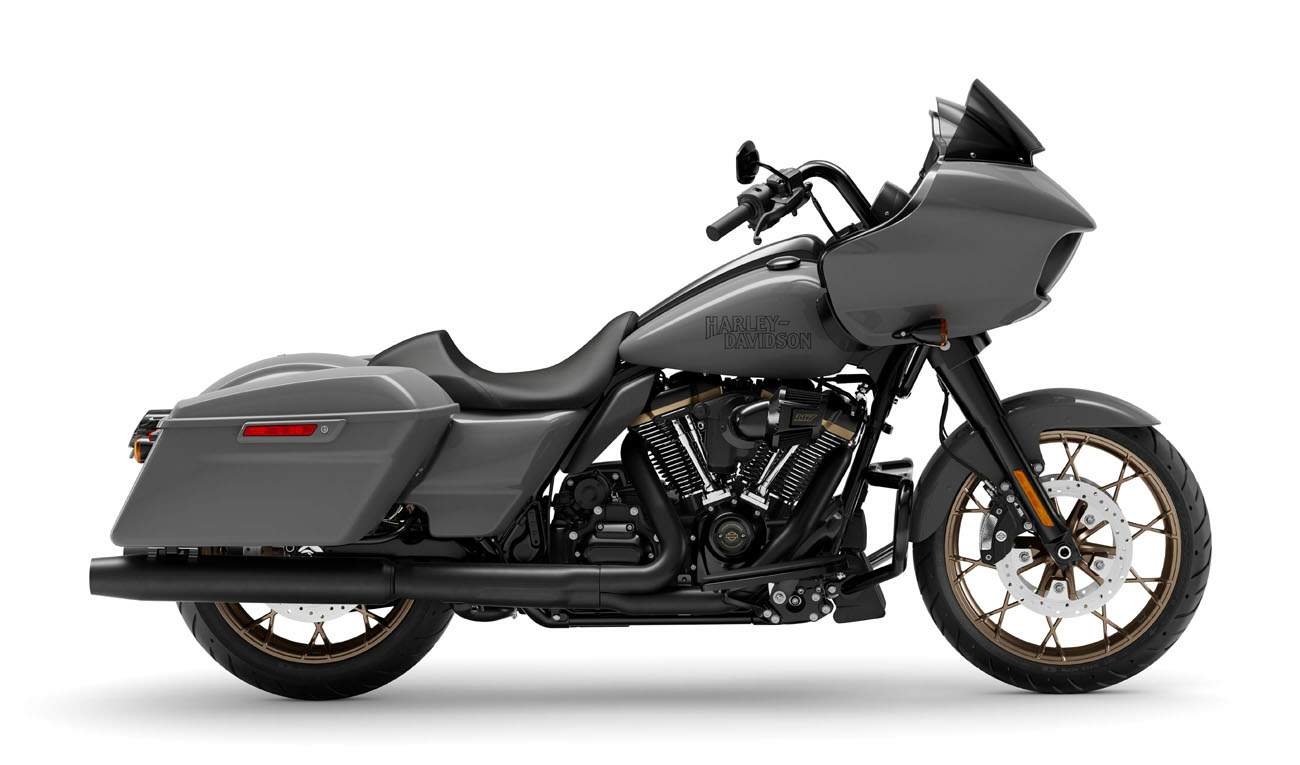

Harley-Davidson Harley Davidson Road Glide ST is produced in 2022. Engine is Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1923 cc / 117 cu-in , produces power 106 hp / 77.9 kW @ 4750 rpm and 172 Nm / 127 lb-ft @ 3750 rpm. Harley-Davidson Harley Davidson Road Glide ST wet weight is 382 kg / 842 lbs. Harley-Davidson Harley Davidson Road Glide ST has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson Road Glide ST |
| Years: | 2022 |
| Engine: | Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder |
| Capacity: | 1923 cc / 117 cu-in |
| Bore x Stroke: | 103.5 x 114.3 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.2:1 |
| Exhaust: | Dual, with crossover |
| Induction: | Electronic sequential port fuel injection (ESPFI) |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Power: | 106 hp / 77.9 kW @ 4750 rpm |
| Max Torque: | 172 Nm / 127 lb-ft @ 3750 rpm |
| Clutch: | Pressurized, dry-sump with oil cooler |
| Transmission: | 6-Speed, cruise drive |
| Primary Drive: | Chain, 34/46 ratio |
| Final Drive: | Belt, 32/68 ratio |
| Gear Ratio: | 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79 |
| Frame: | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Swingarm: | Mild steel; two-piece drawn and welded section; forged junctions; MIG welded |
| Front Suspension: | 49mm Dual bending valve |
| Front Wheel Travel: | 117 mm / 4.6 in |
| Rear Suspension: | Premium standard height hand-adjustable rear suspension |
| Rear Wheel Travel: | 76 mm / 3 in |
| Front Brakes: | 2x 300mm discs, 4 piston fixed calipers |
| Rear Brakes: | Single 300mm disc, 4 piston fixed caliper |
| ABS: | Standard |
| Wheels: | Bronze Prodigy |
| Front Tyre: | 130/60B19 61H |
| Rear Tyre: | BW 180/55B18 80H |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in |
| Dimensions: | Length 2405 mm / 94.7 in Width 955 mm / 37.6 in Height 1325 mm / 52.2 in |
| Wheelbase: | 1625 mm / 64 in |
| Seat Height: | 715 mm / 28.1 in |
| Ground Clearance: | 140 mm / 5.5 in |
| Wet Weight: | 382 kg / 842 lbs |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
