Harley-Davidson Harley Davidson FXS Blackline (2012-13) technical specifications

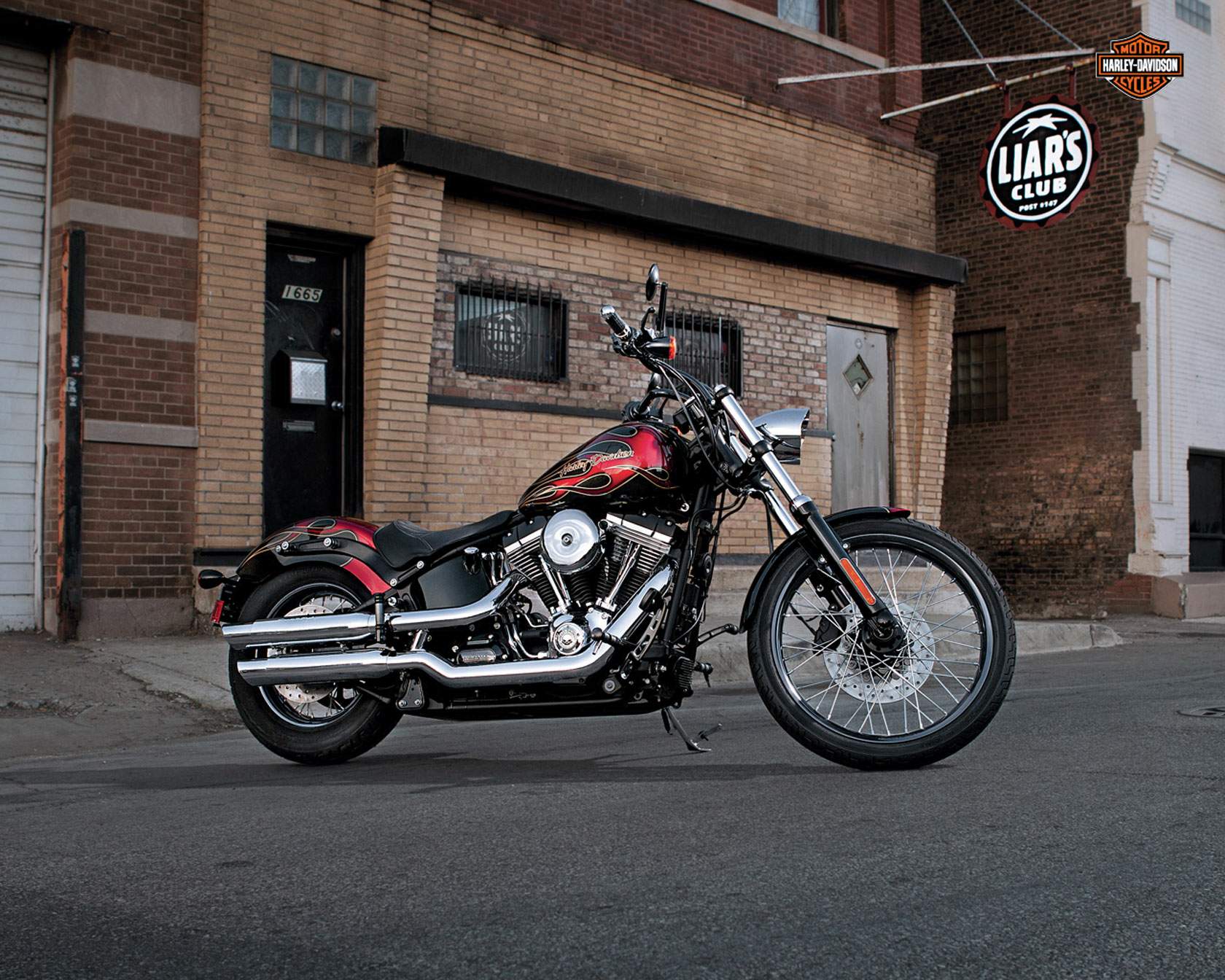

Harley-Davidson Harley Davidson FXS Blackline is produced in 2012-13. Engine is Four stroke, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1690 cc / 103.1 cu in Harley-Davidson Harley Davidson FXS Blackline weighs 294 kg / 638.5 lbs. Harley-Davidson Harley Davidson FXS Blackline has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXS Blackline |
| Years: | 2012-13 |
| Engine: | Four stroke, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Capacity: | 1690 cc / 103.1 cu in |
| Bore x Stroke: | 98.4 x 111.1 mm |
| Cooling System: | Air-cooled |
| Compression Ratio: | 9.6:1 |
| Exhaust: | Chrome, "Tommy Gun" 2-1-2 collector exhaust with dual mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 132 Nm / 13.5 kgf-m / 97.4 ft/ lbs @ 3250 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st: 9.311 2nd: 6.454 3rd: 4.793 4th: 3.882 5th: 3.307 6th: 2.79 |
| Frame: | Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded |
| Front Suspension: | 41.3 mm telescopic, chrome dust covers, 5.6 in. (143 mm) wheel travel |
| Rear Suspension: | Hidden, horizontal-mounted, coil-over, 3.6 in. 91 mm wheel travel |
| Front Brakes: | Single 292mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 2 piston caliper |
| Front Tyre: | MH90-21 54H |
| Rear Tyre: | MU85B16 77H |
| Rake: | 30° |
| Trail: | 123 mm / 4.8 in |
| Dimensions: | Length 2410 mm / 93.0 in |
| Wheelbase: | 1670 mm / 66.5 in |
| Seat Height: | Laden 610 mm / 24 in Unladen 655 mm / 26.1 in |
| Ground Clearance: | 125 mm / 4.9 in |
| Dry Weight: | 294 kg / 638.5 lbs |
| Wet Weight: | 306 kg / 682.5 lbs |
| Fuel Capacity: | 18 9 Litres / 5.0 US gal |
