Harley-Davidson Harley Davidson FXDWG Dyna Wide Glide (2013) technical specifications
Harley-Davidson Harley Davidson FXDWG Dyna Wide Glide is produced in 2013. Engine is Four stroke, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1690 cc / 103.1 cu in Harley-Davidson Harley Davidson FXDWG Dyna Wide Glide weighs 295 kg / 650 lbs. Harley-Davidson Harley Davidson FXDWG Dyna Wide Glide has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXDWG Dyna Wide Glide |
| Years: | 2013 |
| Engine: | Four stroke, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Capacity: | 1690 cc / 103.1 cu in |
| Bore x Stroke: | 98.4 x 111.1 mm |
| Cooling System: | Air-cooled |
| Compression Ratio: | 9.6:1 |
| Exhaust: | Chrome, "Tommy Gun" 2-1-2 collector exhaust with dual mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 132 Nm / 13.5 kgf-m / 97.4 ft/ lbs @ 3250 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Primary Drive: | Chain, 34/46 ratio |
| Gear Ratio: | 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790:1 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Lean Angle, Left: | 31.9º |
| Lean Angle, Right: | 28.4º |
| Front Suspension: | 49 mm with polished aluminum fork triple clamp and dual-rate springs, |
| Rear Suspension: | Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock , |
| Front Brakes: | Single 300mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 2 piston torque-free floatingcaliper |
| Front Wheel: | Black Steel Laced |
| Rear Wheel: | Black Steel Laced |
| Front Tyre: | 80/90-21 54H |
| Rear Tyre: | 180/60B17 75V |
| Rake (steering head): | 34° |
| Trail: | 132 mm / 5.2 in. |
| Dimensions: | Length 2445 mm / 96.3 in |
| Wheelbase: | 1715 mm / 67.5 in |
| Seat Height: | Laden 648 mm / 25.5 in. Unladen .680 mm / 26.8 in |
| Ground Clearance: | 100 mm / 3.9 in |
| Gross Vehicle Weight Rating: | 492.2 kg / 1085 lbs |
| Dry Weight: | 295 kg / 650 lbs |
| Wet Weight: | 307 kg / 677 lbs |
| Oil Capacity: | 2.8 Litres / 3.0 US qt |
| Fuel Capacity: | 17.8 Litres / US 4.7 gal |
| Average Consumption: | 5.6 L/100 km / 17.9 km/l / 42.0 US mpg |
Back to Harley-Davidson motorcycles
Reviews score
★
0.0
/0 rewiews
Appearance
0.0
Comfort
0.0
Performance
0.0
Durability
0.0
Maintenance cost
0.0
Appearance
0
Comment (not required)
Comfort
0
Comment (not required)
Performance
0
Comment (not required)
Durability
0
Comment(not required) - common problems
Maintenance cost
0
Comment (not required)
Additional comment(not required)
Compare bike
Moto-data World

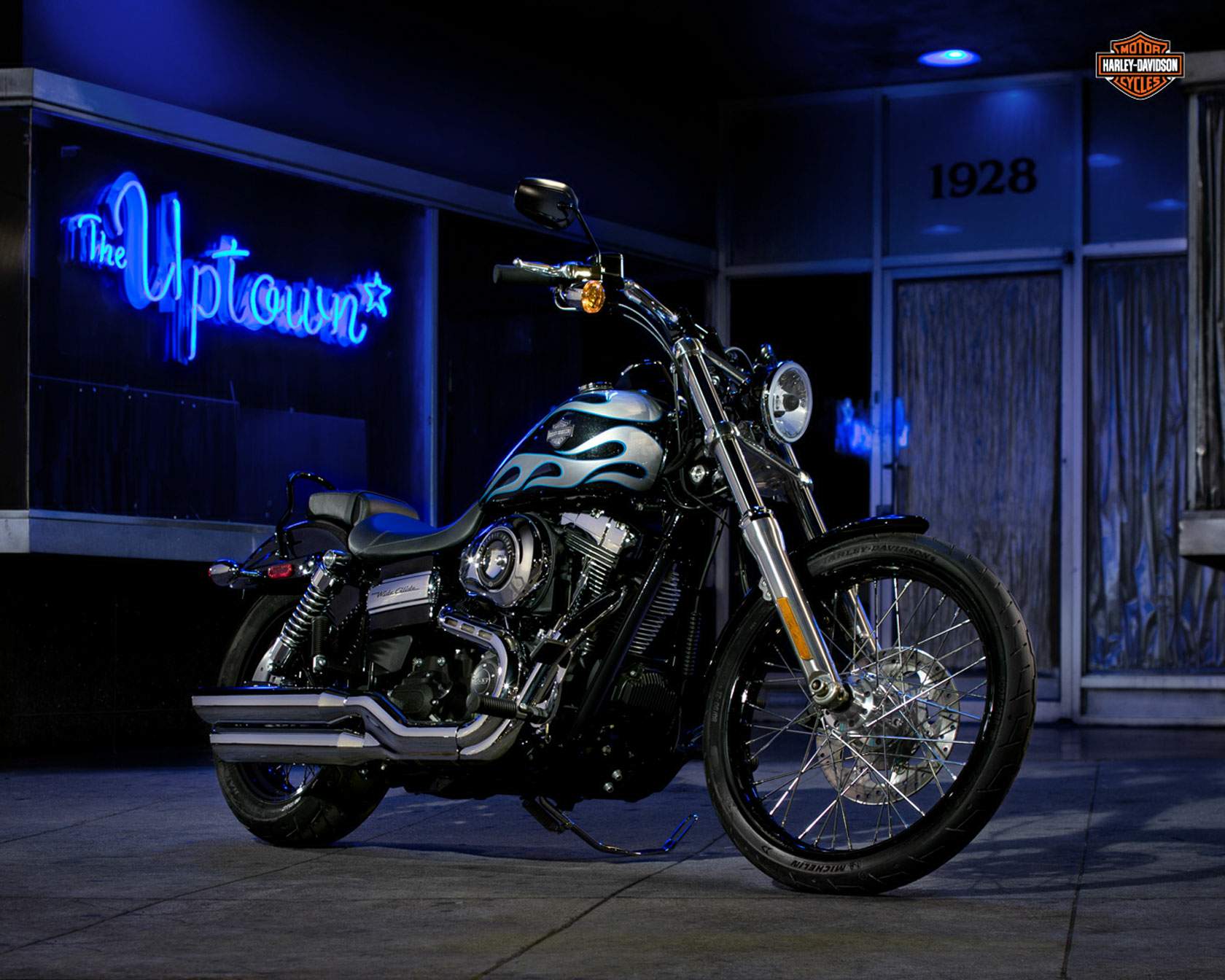

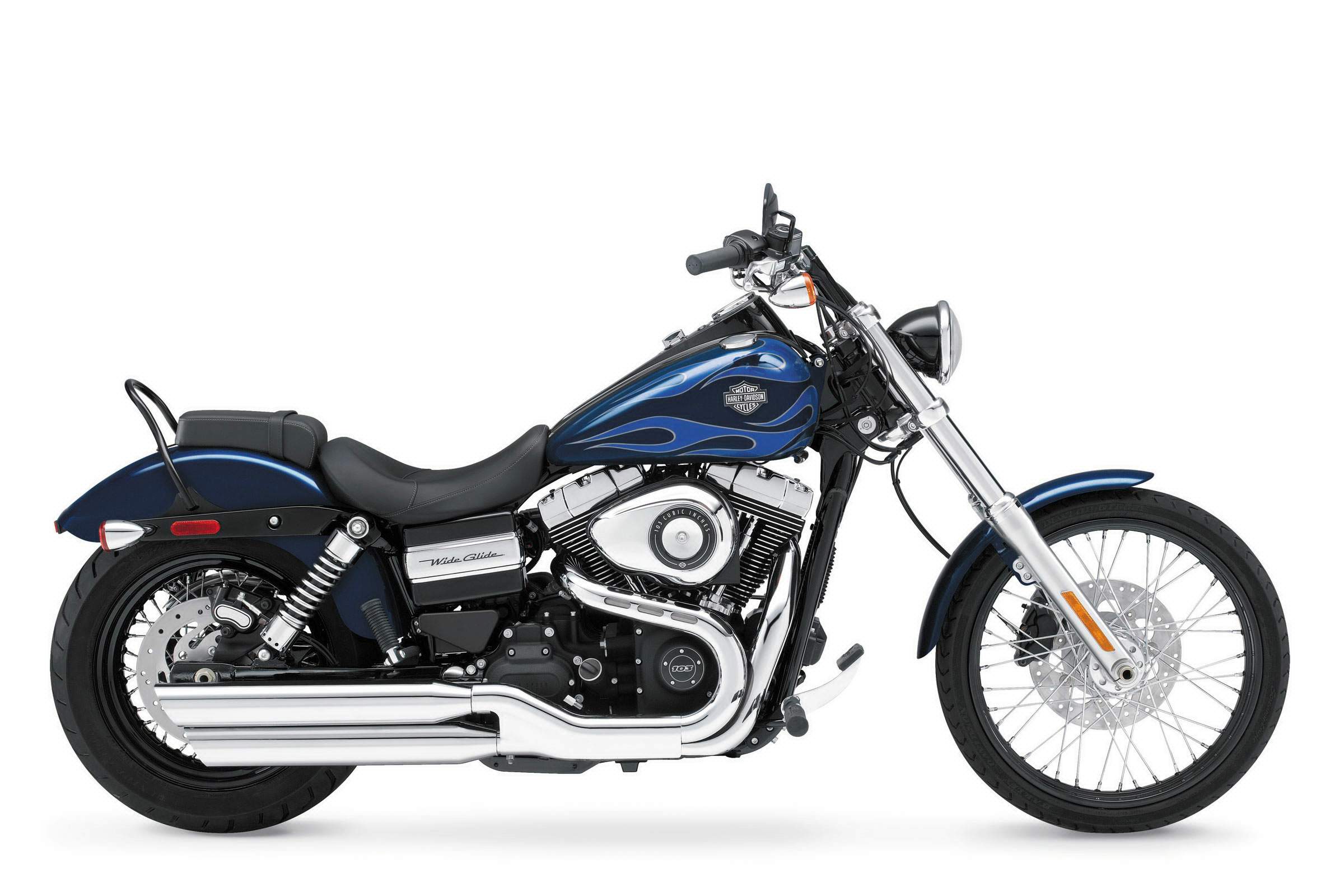

Riders submitted photos
