Technical specifications
|
| Model: |

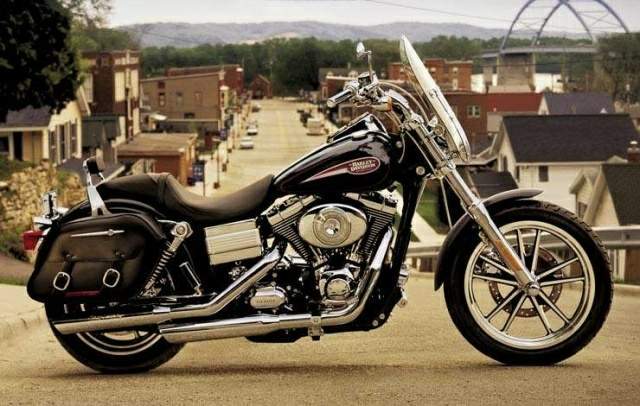

Harley Davidson FXDL/I Dyna Low Rider |
| Years: |
2006 |
|
Engine:
|
Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
|
|
Capacity:
|
1449 cc / 88.4 cu-in
|
|
Bore x Stroke:
|
95.3 x 101.6 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
8.9:1
|
|
Lubrication:
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ì pressurized oil filter
|
|
Induction:
|
Carburetion 40 mm constant velocity with enrichener and accelerator pump ESPFI 38 mm throttle bore electronic sequential port fuel injection
|
|
Ignition:
|
Single-fire, non-wasted, map-controlled spark ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
67 hp / 48.8 kW @ 5200 rpm
|
|
Max Torque:
|
116.6 Nm / 86 lb-ft @ 3500rpm
|
|
Clutch:
|
Wet 9-plate
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt 70/32 ratio (68/32 ratio)
|
|
Gear rRatio:
|
1st 10.110 2nd 6.958 3rd 4.953 4th 3.862 5th 3.150
|
|
Frame:
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
|
|
Front Suspension:
|
39 mm w/ polished aluminum fork triple clamp and dual-rate springs
|
|
Rear Suspension:
|
Coil over dual shock
|
|
Front Brakes:
|
Single 292mm disc
|
|
Rear Brakes:
|
Single 292mm disc
|
|
Front Tyre:
|
D401F 100/90-19 57H
|
|
Rear Tyre:
|
D401 150/80B16 71H
|
|
Rake:
|
29°
|
|
Fork Angle 30.5°:
|
30°
|
|
Trail:
|
114.3 mm / 4.5 in
|
|
Dimensions:
|
Length 2364.0 mm / 93.1 in
|
|
Seat Height:
|
Laden2 655 mm / 25.8 in. Unladen 680 mm / 26.80 in.
|
|
Wheelbase:
|
1,625 mm / 64.0 in
|
|
Ground Clearance:
|
142.0 mm / 5.6 in
|
|
Fuel Capacity:
|
17.4 Litres / 4.6 US gal
|
