Harley-Davidson Harley Davidson FXDF Dyna Fat Bob (2013) technical specifications

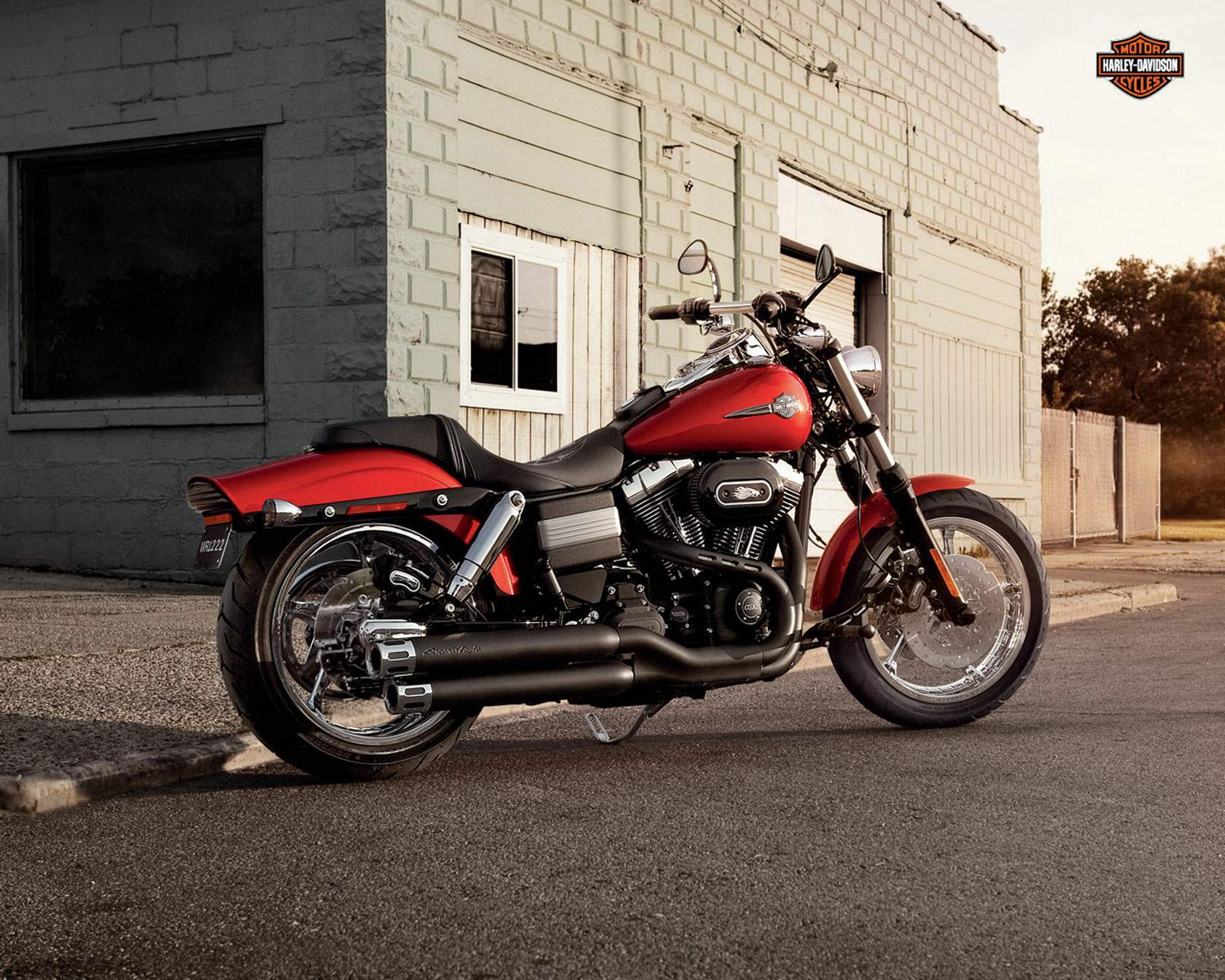

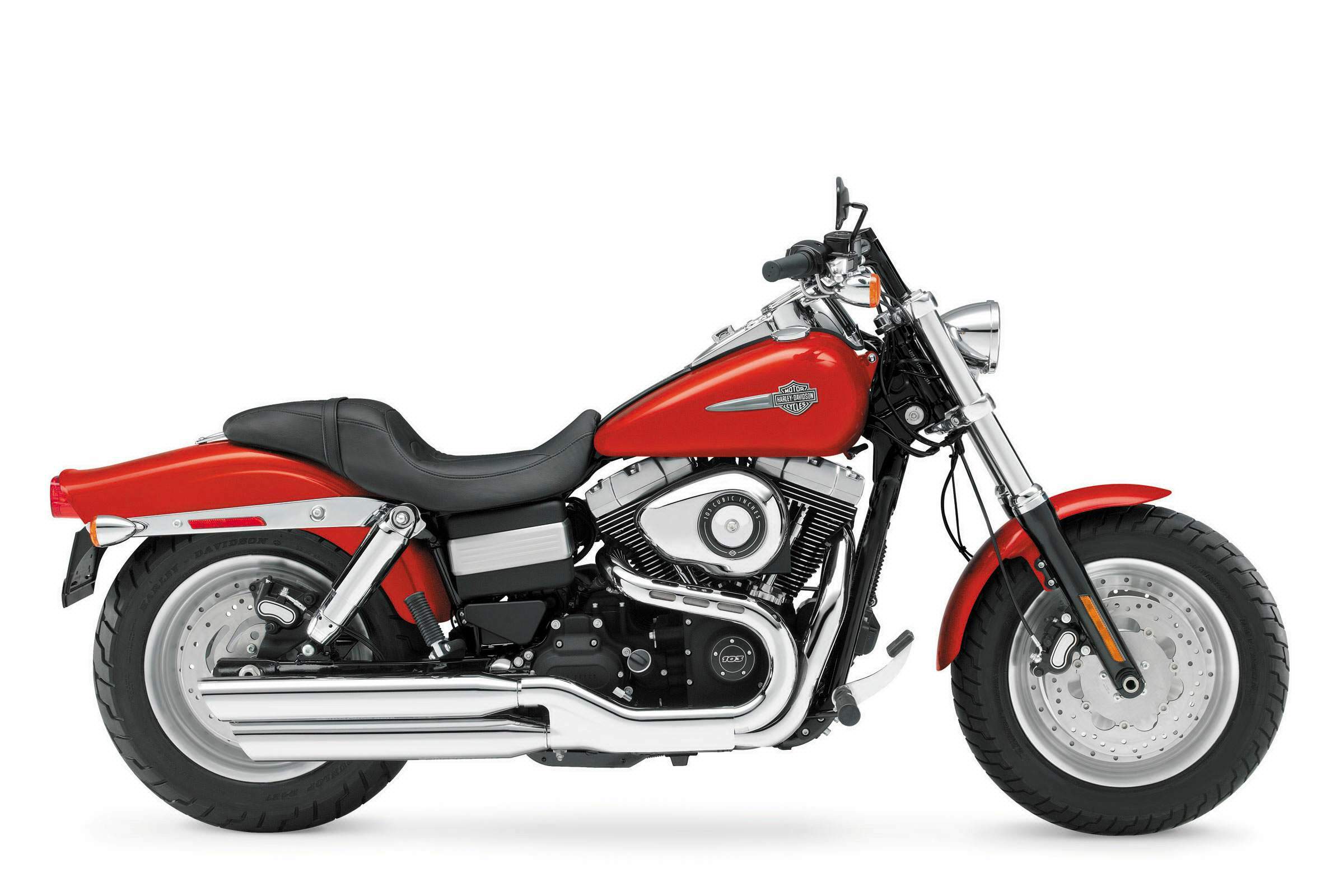

Harley-Davidson Harley Davidson FXDF Dyna Fat Bob is produced in 2013. Engine is Four stroke, V-Twin, 'Twin Cam 103™, displacement 1690 cc / 103 cu. in Harley-Davidson Harley Davidson FXDF Dyna Fat Bob wet weight is 320 kg / 706 lbs. Harley-Davidson Harley Davidson FXDF Dyna Fat Bob has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXDF Dyna Fat Bob |
| Years: | 2013 |
| Engine: | Four stroke, V-Twin, 'Twin Cam 103™ |
| Capacity: | 1690 cc / 103 cu. in |
| Bore x Stroke: | 98.4 x 111.3 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.6:1 |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 134 Nm / 98.8 ft/ lbs @ 3500 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
| Front Suspension: | 49 mm with polished aluminum fork triple clamp and dual-rate springs, |
| Front Wheel Travel: | 127 mm / 4.9 in |
| Rear Suspension: | Coil over shock |
| Rear Wheel Travel: | 54 mm / 2.1 in |
| Front Brakes: | Single 300mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 2 piston caliper |
| Front Tyre: | 130/90B16 67 |
| Rear Tyre: | 180/70B16 77H |
| Rake: | 29° |
| Trail: | 125 mm / 4.9 in |
| Dimensions: | Length 2329 mm / 91.7 in Width 889 mm / 35.0 in Height 1130 mm / 44.5 in. |
| Wheelbase: | 1618 mm / 63.7 in. |
| Seat Height: | Laden 663 mm / 26.1 in. Unladen 686 mm / 27.0 in |
| Gross Vehicle Weight Rating: | 492 kg / 1085 lbs |
| Wet Weight: | 320 kg / 706 lbs |
| Oil Capacity: | 2.8 Litres |
| Fuel Capacity: | 18.9 Litres / 5.0 gal |
