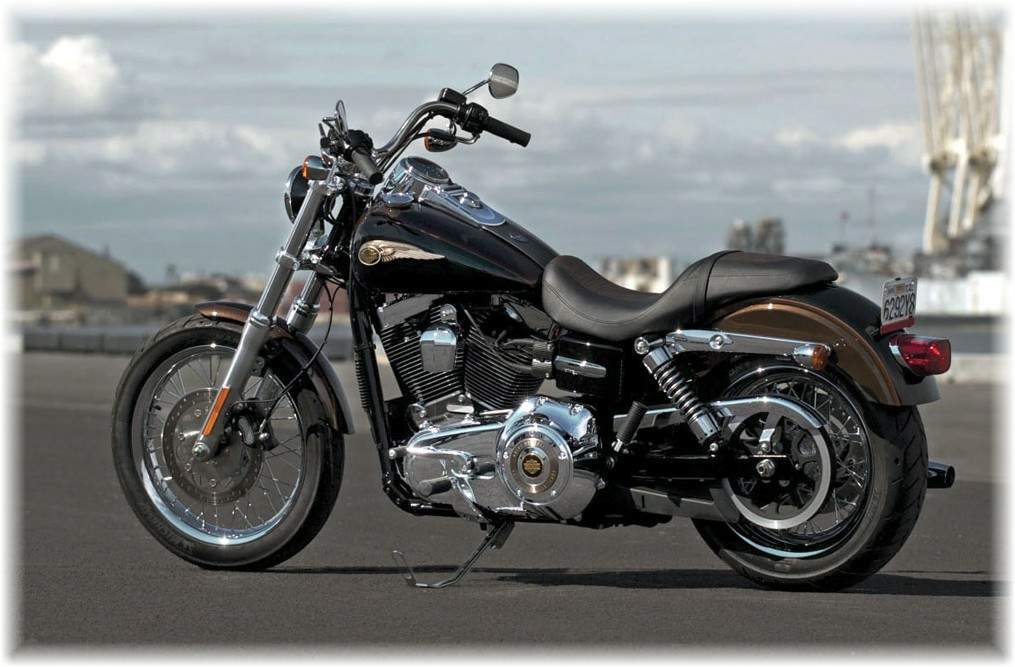

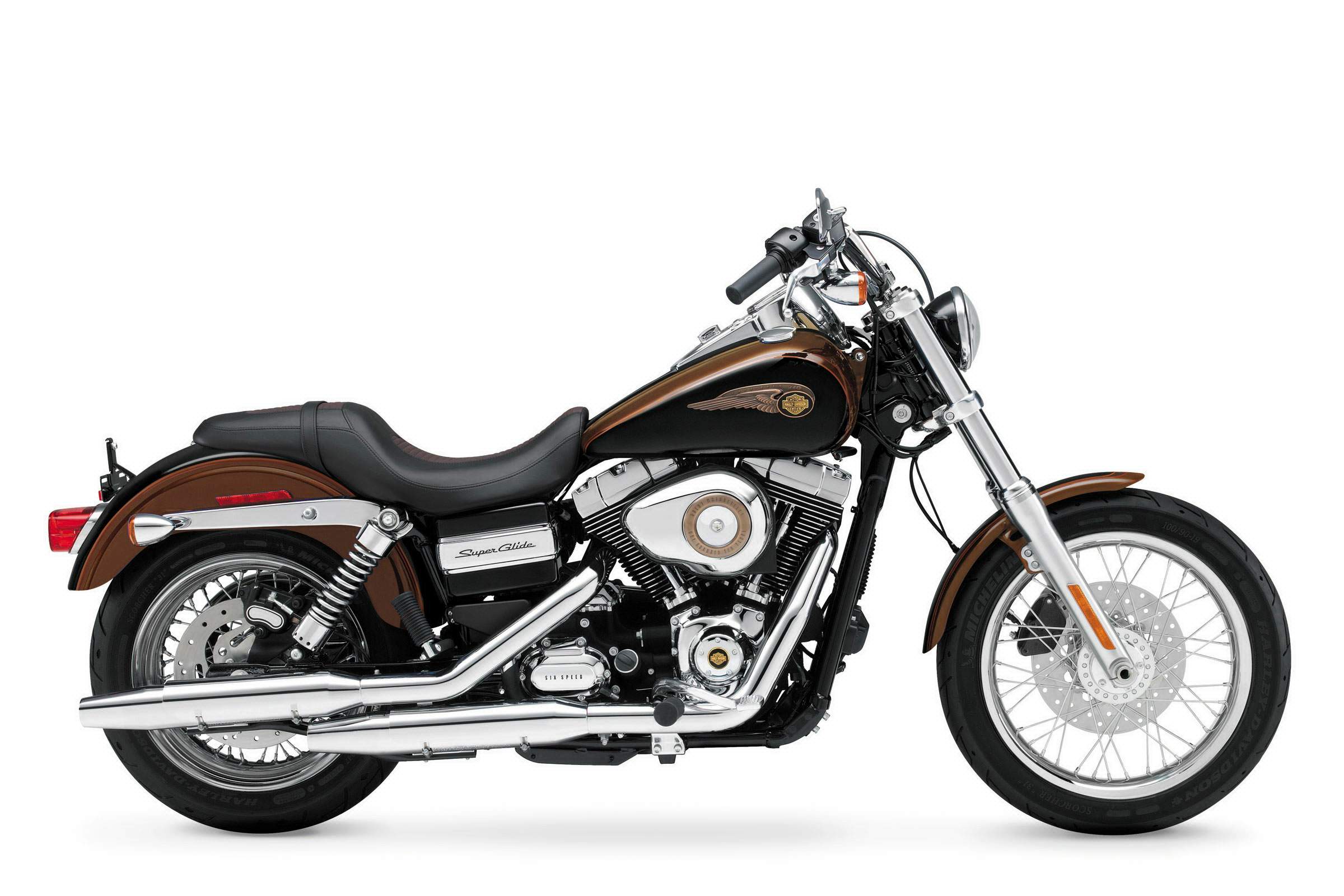

Harley-Davidson Harley Davidson FXDC Dyna Super Glide Custom 110th Anniversary Edition (2013) technical specifications
Harley-Davidson Harley Davidson FXDC Dyna Super Glide Custom 110th Anniversary Edition is produced in 2013. Engine is Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder, displacement 1584 cc / 96 cu-in Harley-Davidson Harley Davidson FXDC Dyna Super Glide Custom 110th Anniversary Edition weighs 291 kg / 641 lbs. Harley-Davidson Harley Davidson FXDC Dyna Super Glide Custom 110th Anniversary Edition has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FXDC Dyna Super Glide Custom 110th Anniversary Edition |
| Years: | 2013 |
| Engine: | Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder |
| Capacity: | 1584 cc / 96 cu-in |
| Bore x Stroke: | 95.3 x 111.1 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 124.7 Nm / 92 ft/ lbs. @ 3000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
| Front Suspension: | 49 mm with polished aluminum fork triple clamp and dual-rate springs, |
| Rear Suspension: | Coil over shock , |
| Front Brakes: | Single 300mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 4 piston caliper |
| Front Tyre: | 100/90-19 57H |
| Rear Tyre: | 160/70B17 73V |
| Rake: | 29° |
| Fork Angle: | 30.5° |
| Trail: | 114 mm / 4.3 in |
| Dimensions: | Length 2364.0 mm / 93.1 in Width 921.0 mm / 36.3 in Height 1194.0 mm / 47.0 in |
| Wheelbase: | 1640.0 mm / 64.6 in |
| Seat Height: | Laden2 655.3 mm / 25.8 in Unladen 680.0 mm / 26.8 in |
| Ground Clearance: | 142 mm / 5.6 in |
| Dry Weight: | 291 kg / 641 lbs |
| Wet Weight: | 308.0 kg / 679 lbs |
| Fuel Capacity: | 18 2 Litres / 4.8 US gal |
