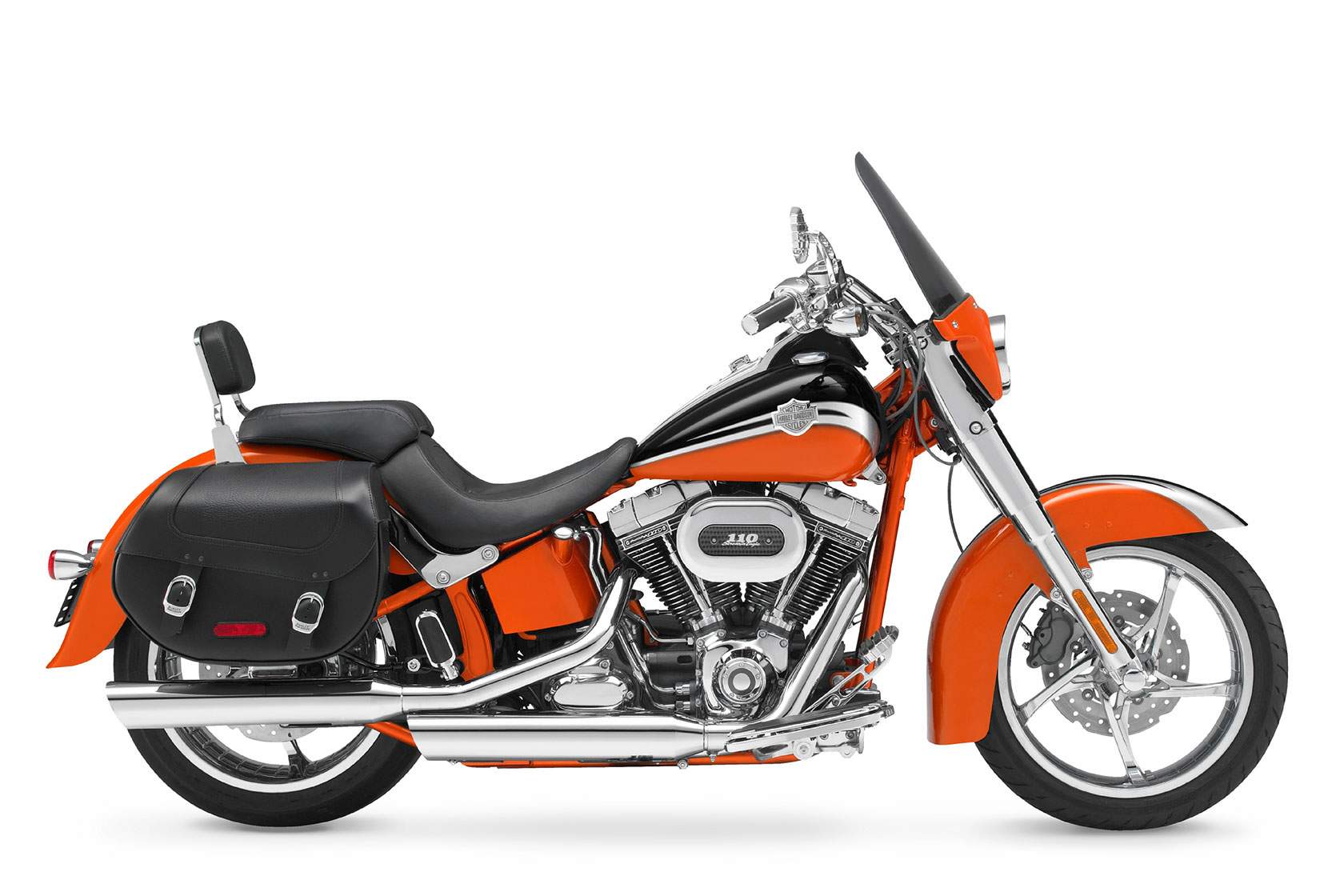

Harley-Davidson Harley Davidson FLSTSE Softail Convertible CVO (2010) technical specifications
Harley-Davidson Harley Davidson FLSTSE Softail Convertible CVO is produced in 2010. Engine is Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1802 cc / 110 cu-in Harley-Davidson Harley Davidson FLSTSE Softail Convertible CVO weighs 328.41 kg / 724 lbs. Harley-Davidson Harley Davidson FLSTSE Softail Convertible CVO has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLSTSE Softail Convertible CVO |
| Years: | 2010 |
| Engine: | Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Capacity: | 1802 cc / 110 cu-in |
| Bore x Stroke: | 101.6 x 111.25 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.6:1 |
| Exhaust: | Chrome, straight over / under shotgun, slash-cut with dual mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 146 Nm / 107.7 ft. lbs @ 3000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; color-matched to vehicle |
| Front Suspension: | 41.3 mm telescopic, chrome "beer can" covers |
| Rear Suspension: | Swingarm Mild steel tube sections, forged junctions; MIG welded; color-matched to vehicle rear shocks Hidden, horizontal-mounted, coil-over |
| Front Brakes: | Single 292mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 2 piston caliper |
| Front Tyre: | 130/70R18 |
| Rear Tyre: | 200/50R18 |
| Rake: | 32° |
| Fork Angle: | 31° |
| Trail: | 147 mm / 5.8 in |
| Dimensions: | Length 2415.54 mm / 95.1 in Width 1003.30 mm / 39.5 in Height 1290.32 mm / 50.8 in |
| Wheelbase: | 1630.6 mm / 64.2 in |
| Seat Height: | Laden2 619.76 mm / 24.4 in Unladen 650.24 mm / 25.6 in |
| Ground Clearance: | 94 mm / 3.7 in |
| Dry Weight: | 328.41 kg / 724 lbs |
| Wet Weight: | 343 kg / 756 lbs |
| Fuel Capacity: | 18.9 Litres / 5.0 US gal |
