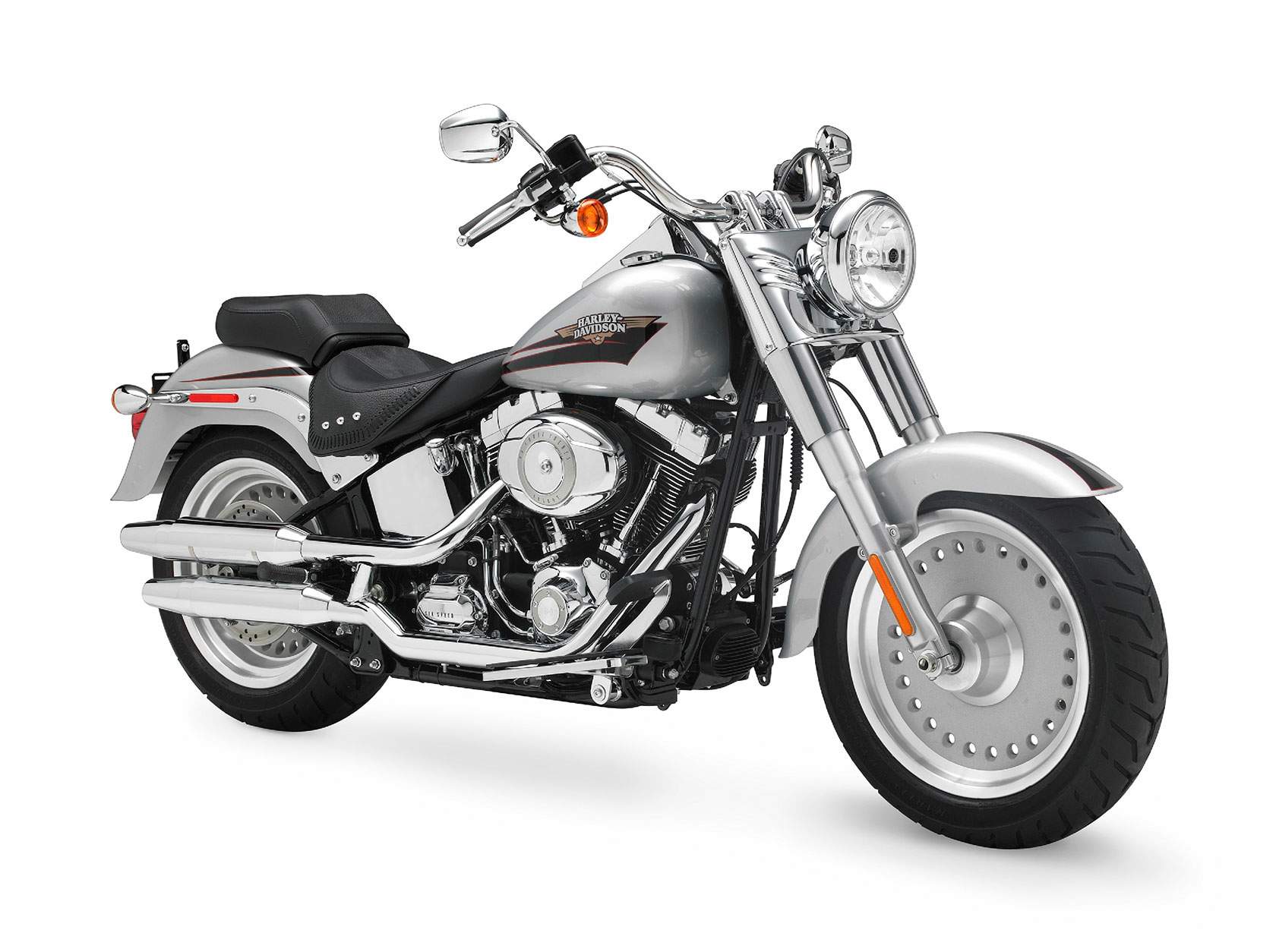

Harley-Davidson Harley Davidson FLSTF Fat Boy (2010) technical specifications
Harley-Davidson Harley Davidson FLSTF Fat Boy is produced in 2010. Engine is Four stroke, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1584 cc / 96 cu-in Harley-Davidson Harley Davidson FLSTF Fat Boy wet weight is 329.0 kg / 725 lbs. Harley-Davidson Harley Davidson FLSTF Fat Boy has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLSTF Fat Boy |
| Years: | 2010 |
| Engine: | Four stroke, Twin Cam 96BTM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Capacity: | 1584 cc / 96 cu-in |
| Bore x Stroke: | 95.25 x 111.25 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 124.7 Nm / 92 ft. lbs @ 3000 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.790 |
| Frame: | Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded |
| Front Suspension: | 41.3 mm telescopic, chrome dust covers |
| Rear Suspension: | Hidden, horizontal-mounted, coil-over shock |
| Front Brakes: | Single 292mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 4 piston caliper |
| Front Tyre: | 140/75R17 |
| Rear Tyre: | 200/55R17 |
| Rake: | 31.6° |
| Trail: | 147 mm / 5.7 in |
| Dimensions: | Length 2445 mm / 96.2 in |
| Wheelbase: | 1715 mm / 67.5 in |
| Seat Height: | Laden 635 mm / 25.0 in Unladen 690 mm / 27.1 in |
| Gross Vehicle Weight Rating: | 526.0 kg / 1160 lbs |
| Wet Weight: | 329.0 kg / 725 lbs |
| Fuel Capacity: | 18.9 Litres / 5.0 gal |
