Harley-Davidson Harley Davidson FLSTC Heritage Softail Classic (2013) technical specifications

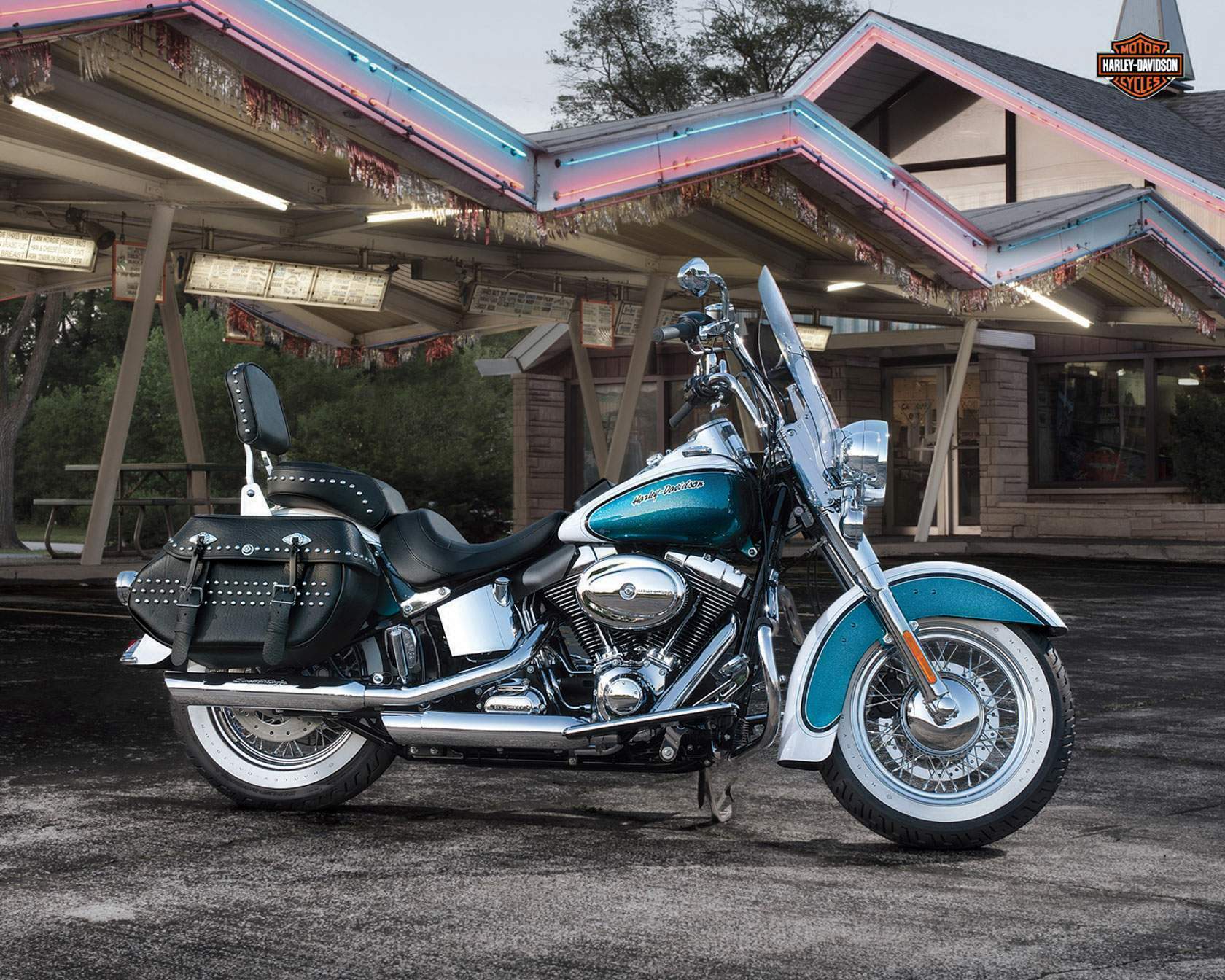

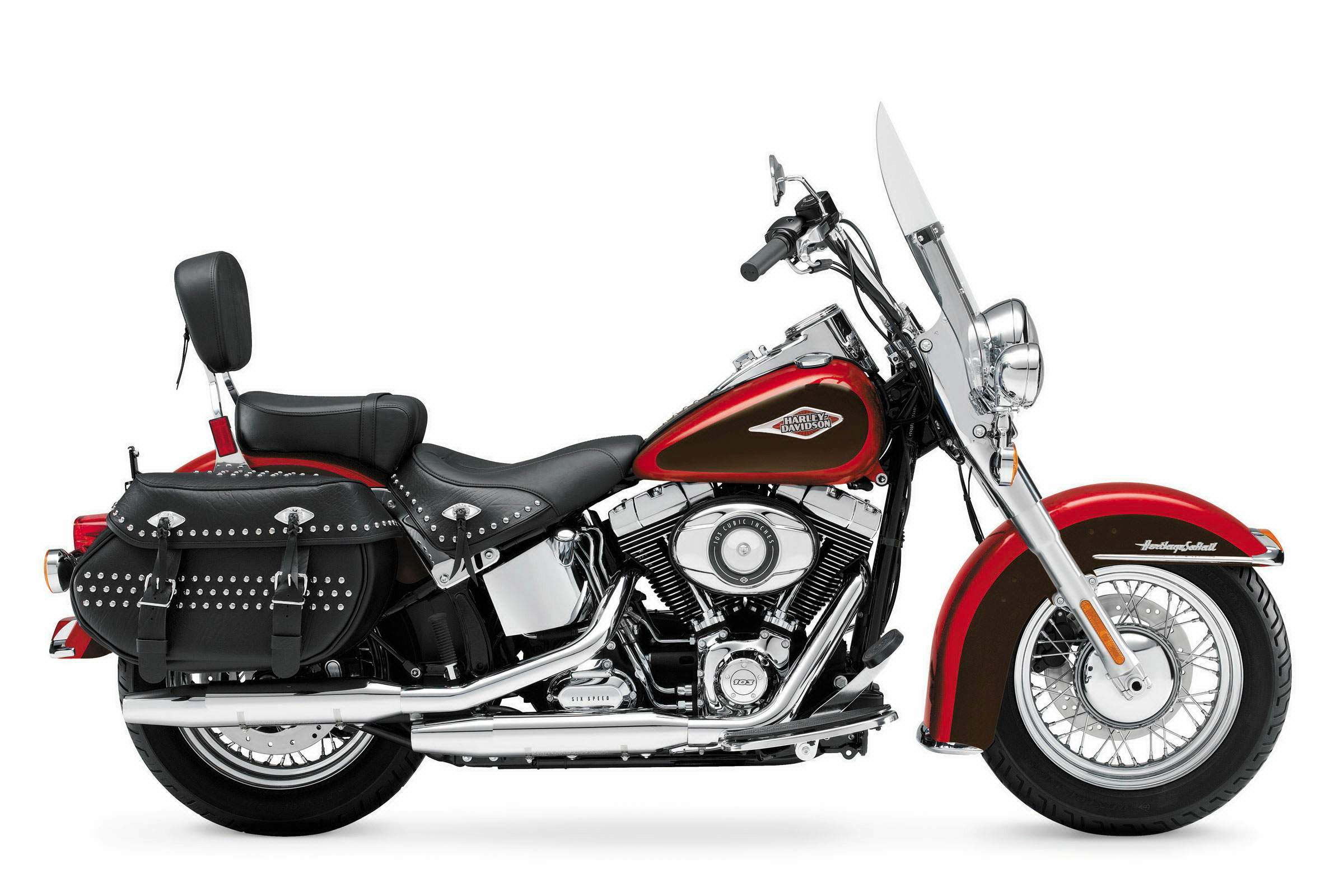

Harley-Davidson Harley Davidson FLSTC Heritage Softail Classic is produced in 2013. Engine is Four stroke, V-Twin, Twin Cam 103™ with Integrated Oil-Cooler, displacement 1690 mm / 103 cu. in Harley-Davidson Harley Davidson FLSTC Heritage Softail Classic wet weight is 345.0 kg / 761 lbs. Harley-Davidson Harley Davidson FLSTC Heritage Softail Classic has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson FLSTC Heritage Softail Classic
Years:	2013
Engine:	Four stroke, V-Twin, Twin Cam 103™ with Integrated Oil-Cooler
Capacity:	1690 mm / 103 cu. in
Bore x Stroke:	98.4 x 111.3 mm
Cooling System:	Air cooled
Compression Ratio:	9.6:1
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Torque:	134 Nm / 98.8 ft/lbs @ 3500 rpm
Transmission:	6 Speed
Final Drive:	Belt
Gear Ratio:	1st: 9.311 2nd: 6.454 3rd: 4.793 4th: 3.882 5th: 3.307 6th: 2.79
Frame:	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension:	41.3 mm telescopic, “beer can” covers
Rear Suspension:	Hidden, horizontal-mounted, coil-over shock
Front Brakes:	Single 292mm disc 4 piston caliper
Rear Brakes:	Single 292mm disc 2 piston caliper
Front Tyre:	MT90B16 72H
Rear Tyre:	150/80B16 71H
Rake:	31°
Trail:	147 mm / 5.7 in
Dimensions:	Length 2405 mm / 94.6 in
Wheelbase:	1635 mm / 64.3 in
Seat Height:	Laden 648 mm / 25.5 in Unladen 688 mm / 27.1 in.
Wet Weight:	345.0 kg / 761 lbs
Gross Vehicle Weight Rating:	526.0 kg / 1160 lbs
Oil Capacity:	3.3 Litres
Fuel Capacity:	18 9 Litres / 5.0 US gal
