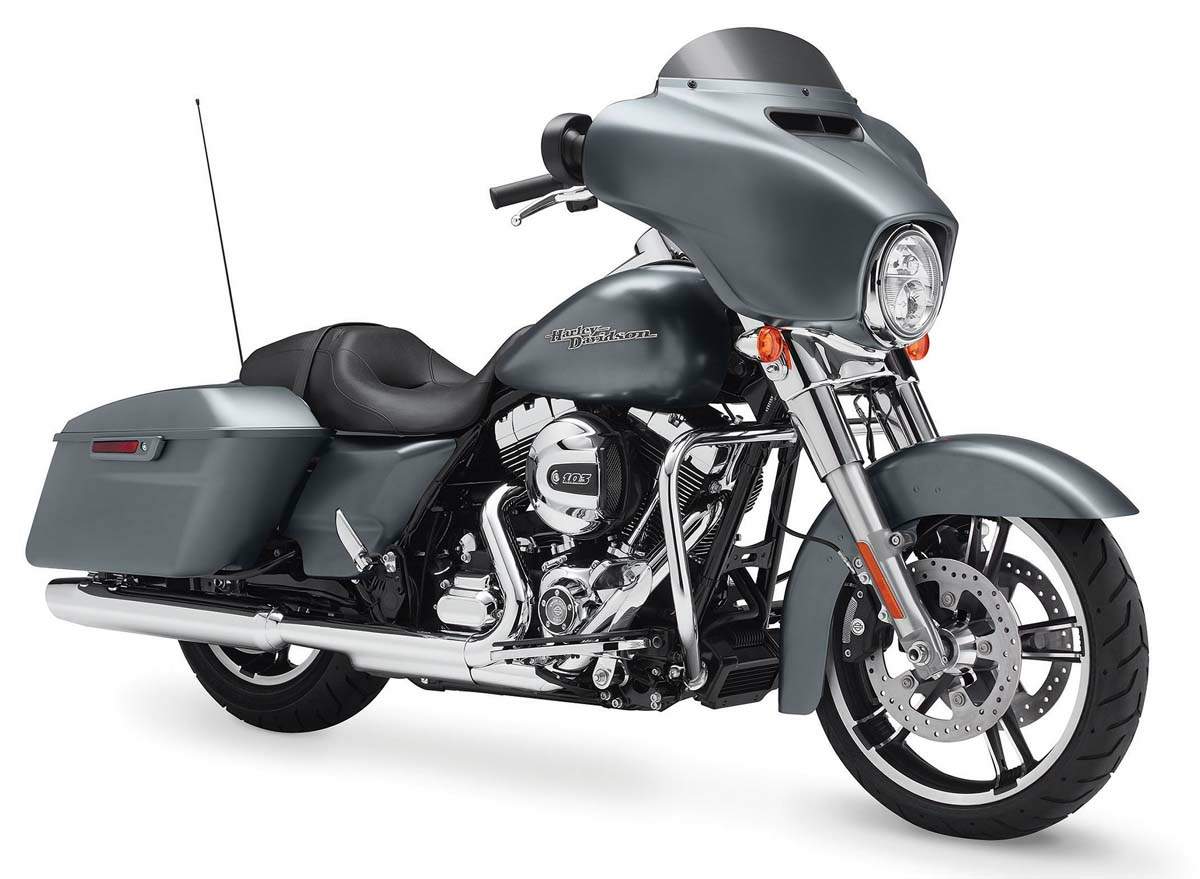

Harley-Davidson Harley Davidson FLHX Street Glide (2015) technical specifications
Harley-Davidson Harley Davidson FLHX Street Glide is produced in 2015. Engine is Four stroke, V-Twin, Twin Cam 103™ with Integrated Oil-Cooler, displacement 1690 mm / 103 cu. in Harley-Davidson Harley Davidson FLHX Street Glide weighs 355 kg / 775 lbs. Harley-Davidson Harley Davidson FLHX Street Glide has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLHX Street Glide |
| Years: | 2015 |
| Engine: | Four stroke, V-Twin, Twin Cam 103™ with Integrated Oil-Cooler |
| Capacity: | 1690 mm / 103 cu. in |
| Bore x Stroke: | 98.4 x 111.3 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.7:1 |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 142 Nm / 14.5 kgf-m / 104.7 ft/lb @ 3250 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Primary Drive: | Chain, 34/46 ratio |
| Gear Ratio: | 1st 9.312 / 2nd 6.421 / 3rd 4.774 / 4th 3.926 / 5th 3.279 / 6th 2.790:1 |
| Frame: | Mild steel, square-section backbone with twin downtubes |
| Front Suspension: | 41.3 mm telescopic, cartridge-style damping, |
| Front Wheel Travel: | 117 mm / 4.6 in |
| Rear Suspension: | Short, air-adjustable shock, |
| Rear Wheel Travel: | 51 mm / 2.0 in |
| Front Brakes: | 2 x 292 mm disc, 4 piston caliper |
| Rear Brakes: | Single 292 mm disc, 4 piston caliper |
| Wheels: | Optional Style Type Tubeless Chrome Aluminum Profile Laced |
| Front Wheel: | Black, Slotted 5-Spoke Cast Aluminum |
| Rear Wheel: | Black, Slotted 5-Spoke Cast Aluminum |
| Front Tyre: | D408F BW 130/70B18 63H |
| Rear Tyre: | D407 BW 180/65B16 81H |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in. |
| Fork Angle: | 29.2° |
| Dimensions: | Length 2450 mm / 96.5 in. |
| Seat Height: | Laden 663 mm / 26.1 in Unladen 688 mm / 27.1 in. |
| Wheelbase: | 1613 mm / 63.5 in |
| Gross Vehicle Weight Rating: | 616.9 kg / 1360 lbs |
| Dry Weight: | 355 kg / 775 lbs |
| Wet Weight: | 372 kg / 810 lbs |
| Fuel Capacity: | 22.7 Litres / US 6.0 gal |
