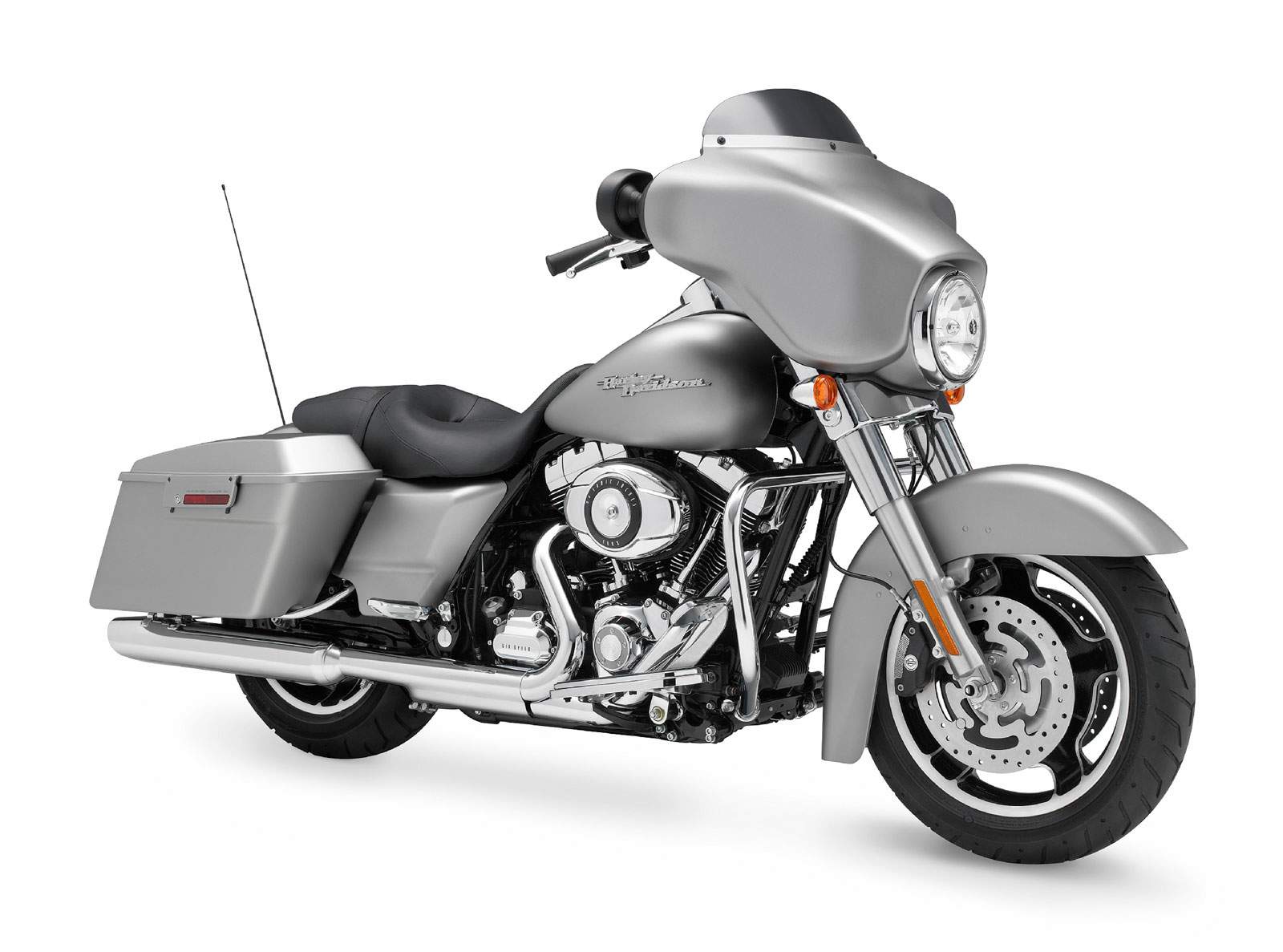

Harley-Davidson Harley Davidson FLHX Street Glide (2009) technical specifications
Harley-Davidson Harley Davidson FLHX Street Glide is produced in 2009. Engine is Four stroke, V-Twin, 'Twin Cam 96', displacement 1584 cc / 96.6 cu-in Harley-Davidson Harley Davidson FLHX Street Glide wet weight is 367 kg / 810 lbs. Harley-Davidson Harley Davidson FLHX Street Glide has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLHX Street Glide |
| Years: | 2009 |
| Engine: | Four stroke, V-Twin, 'Twin Cam 96' |
| Capacity: | 1584 cc / 96.6 cu-in |
| Bore x Stroke: | 95.25 x 111.25 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.2:1 |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 124.7 Nm / 92 ft. lbs @ 3000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.312 9.312 9.312 2nd 6.421 6.421 6.421 3rd 4.774 4.774 4.774 4th 3.926 3.926 3.926 5th 3.279 3.279 3.279 6th 2.790 2.790 2.790 |
| Frame: | Mild steel, square-section backbone with twin downtubes |
| Front Suspension: | 41.3 mm telescopic, cartridge-style damping |
| Rear Suspension: | Short, air-adjustable shock |
| Front Brakes: | 2x 292mm disc 4 piston caliper |
| Rear Brakes: | Single 292mm disc 4 piston caliper |
| Front Tyre: | MT90B16 |
| Rear Tyre: | MU85B16 |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in |
| Fork Angle: | 29.2° |
| Dimensions: | Length 2413 mm / 95.0 in. Width 965 mm / 38.0 in. Height 1326 mm / 52.2 in. |
| Wheelbase: | 1613 mm / 63.5 in |
| Seat Height: | Laden2 668.0 mm / 26.3 in Unladen 693.4 mm / 27.3 in. |
| Gross Vehicle Weight Rating: | 616 kg / 1360 lbs |
| Wet Weight: | 367 kg / 810 lbs |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
