Technical specifications
|
| Model: |

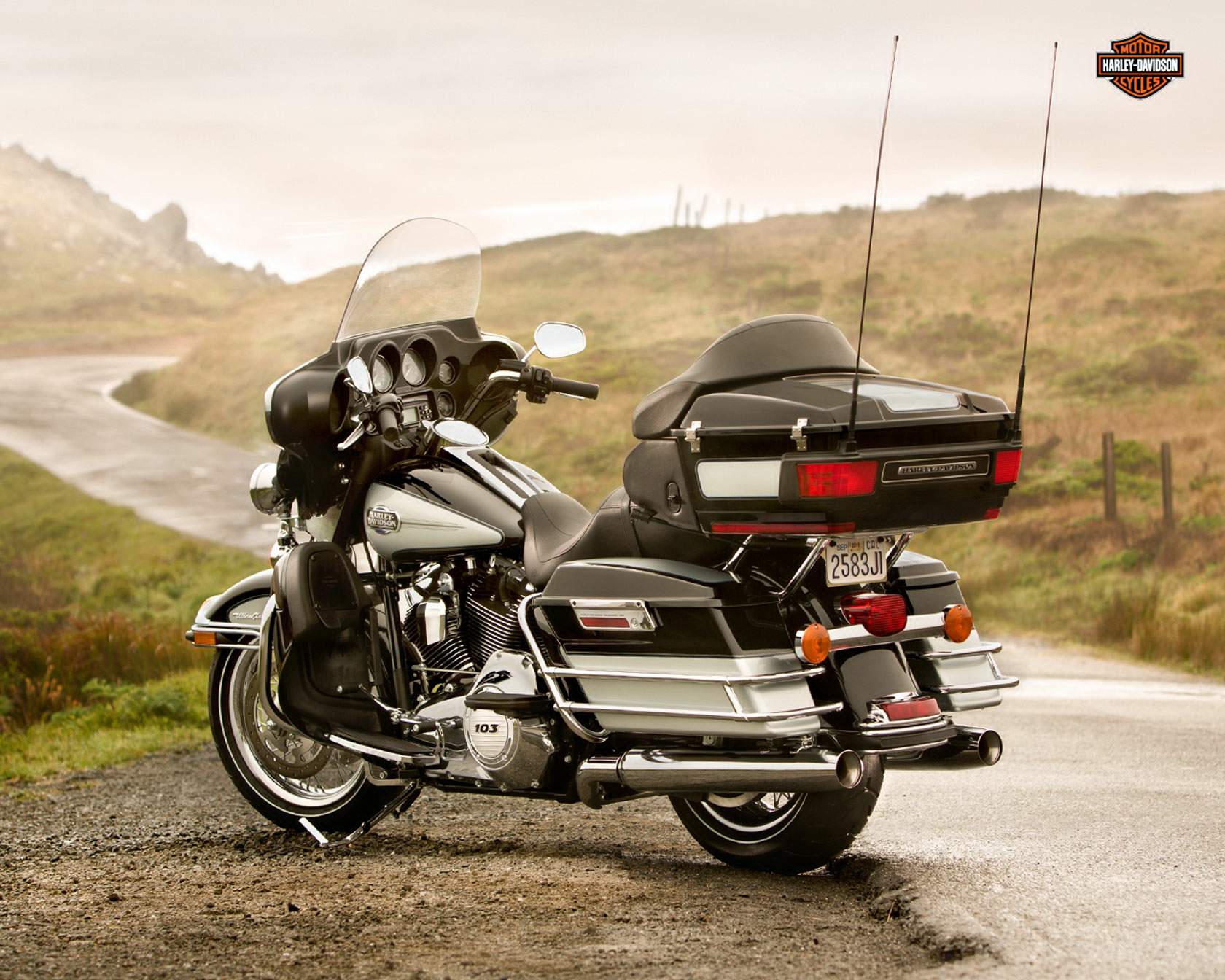

Harley Davidson FLHTCU Electra Glide Ultra Classic |
| Years: |
2013 |
|
Engine:
|
Four stroke, V-Twin, High output 'Twin Cam 103'
|
|
Capacity:
|
1690 cc / 103.1 cub in.
|
|
Bore x Stroke:
|
98.4 x 111.1 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
10.0:1
|
|
Exhaust:
|
Chrome, 2-1-2 dual exhaust with tapered mufflers
|
|
Induction:
|
Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Ignition:
|
Single-fire, non-wasted, map-controlled spark ignition
|
|
Starting:
|
Electric
|
|
Max Torque:
|
138 Nm / 14.1 kgf-m / 101.8 ft. lbs @ 3750 rpm
|
|
Clutch:
|
Multi-plate, wet
|
|
Transmission:
|
6 Speed
|
|
Primary Drive:
|
Chain 34/46 ratio
|
|
Final Drive:
|
Belt
|
|
Gear Ratio:
|
1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875
|
|
Frame:
|
Mild steel, square-section backbone with twin downtubes
|
|
Lean Angle, Left:
|
31.8º
|
|
Lean Angle, Right:
|
31.9
|
|
Front Suspension:
|
41.3 mm telescopic, cartridge-style damping
|
|
Rear Suspension:
|
Short, air-adjustable shock
|
|
Front Brakes:
|
2 x 292 mm disc, 4 piston caliper
|
|
Rear Brakes:
|
Single 292 mm disc, 4 piston caliper
|
|
Wheels, Front and Rear:
|
Impeller, cast aluminium
|
|
Front Tyre:
|
BW 130/80B17 65H
|
|
Rear Tyre:
|
BW 180/65B16 81H
|
|
Rake:
|
26°
|
|
Fork Angle:
|
29.2°
|
|
Trail:
|
170 mm / 6.7 in
|
|
Dimensions:
|
Length 2497 mm / 98.3 in width 965 mm / 38 in Height 1549 mm / 61 in
|
|
Wheelbase:
|
1625 mm / 63.9 in
|
|
Seat Height:
|
Laden2 693 mm / 27.3 in Unladen 739 mm /29.1 in
|
|
Ground Clearance:
|
130 mm / 5.1 in
|
|
Dry Weight:
|
394 kg / 869 lbs
|
|
Wet Weight:
|
411 kg / 906 lbs
|
|
Oil Capacity:
|
3.8 Litres / 4.0 US qts
|
|
Fuel Capacity:
|
22.7 Litres / 6.0 US gal
|
