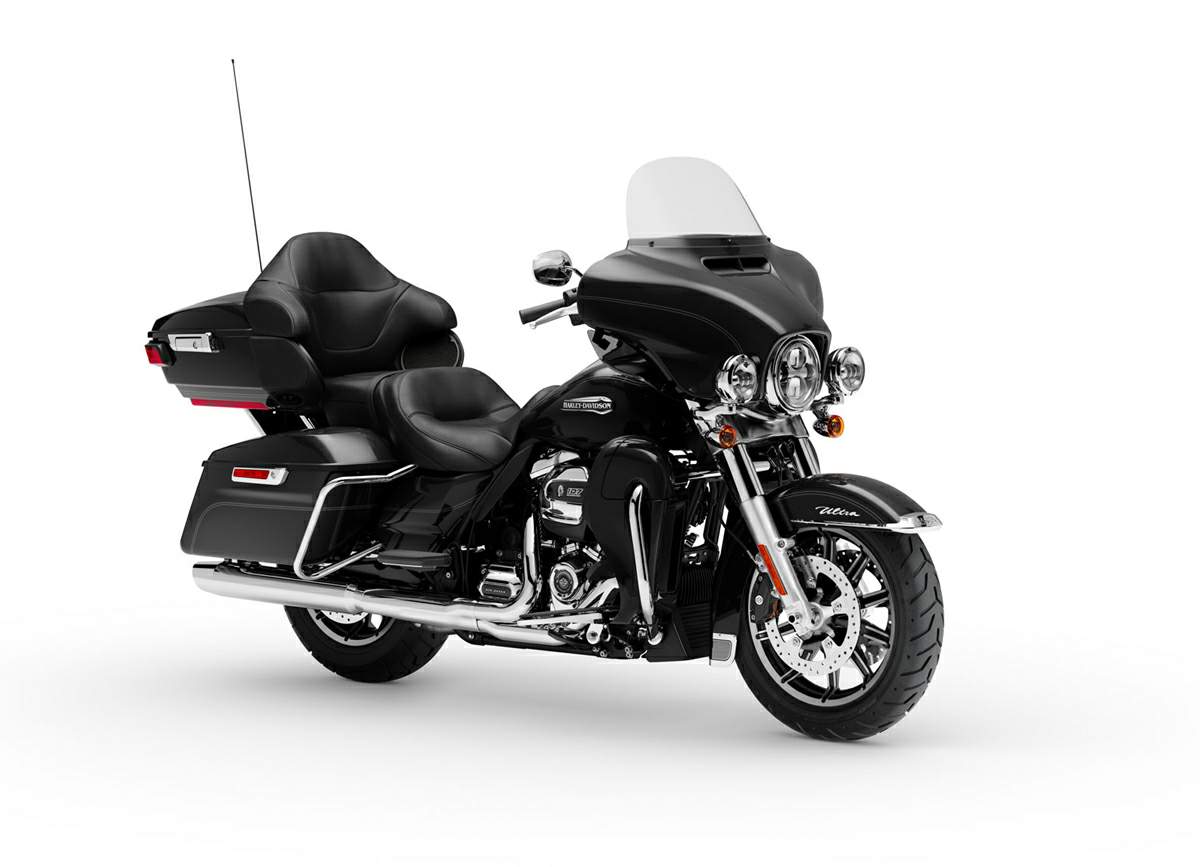

Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra (2019) technical specifications
Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra is produced in 2019. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra weighs 390 kg / 860 lbs. Harley-Davidson Harley Davidson FLHTCU Electra Glide Ultra has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson FLHTCU Electra Glide Ultra |
| Years: | 2019 |
| Engine: | Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder |
| Capacity: | 1746 cc / 107 cub in |
| Bore x Stroke: | 100 x 111 mm / 3.937 x 4.374 in |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication: | Pressurized, dry-sump with oil cooler |
| Ignition: | Single-fire, non-wasted, map-controlled spark ignition |
| Starting: | Electric |
| Max Torque: | 154 Nm / 113.6 lb-ft @ 3250 rpm |
| Clutch: | Multi-plate, wet |
| Transmission: | 6 Speed |
| Primary Drive: | Chain, 34/46 ratio |
| Final Drive: | Belt |
| Gear Ratio: | 1st 9.593 2nd 6.65 3rd 4.938 4th 4.0 5th 3.407 6th 2.875 |
| Frame: | Mild steel, square-section backbone with twin downtubes |
| Lean Angle, Left: | 31.8º |
| Lean Angle, Right: | 31.9º |
| Front Suspension: | 41.3 mm telescopic, cartridge-style damping |
| Rear Suspension: | Short, air-adjustable shock |
| Front Brakes: | 2 x 292mm disc, 4 piston caliper |
| Rear Brakes: | Single 292mm disc, 4 piston caliper |
| Wheels, Front and Rear: | Impeller, cast aluminium |
| Front Tyre: | 130/80B17 65H |
| Rear Tyre: | 180/65B16 81H |
| Rake: | 26° |
| Trail: | 170 mm / 6.7 in |
| Dimensions: | Length 2593 mm / 102.1 in |
| Wheelbase: | 1625 mm / 64 in |
| Ground Clearance: | 139 mm / 5.5 in |
| Seat Height: | Unladen 740 mm / 29.1 in Laden 696 mm / 27.4 in |
| Gross Vehicle Weight Rating: | 616.89 kg / 1360 lbs |
| Dry Weight: | 390 kg / 860 lbs |
| Wet Weight: | 406 kg / 894 lbs |
| Oil Capacity: | 4.9 Litres / 5.2 US qts |
| Fuel Capacity: | 22.7 Litres / 6.0 US gal |
