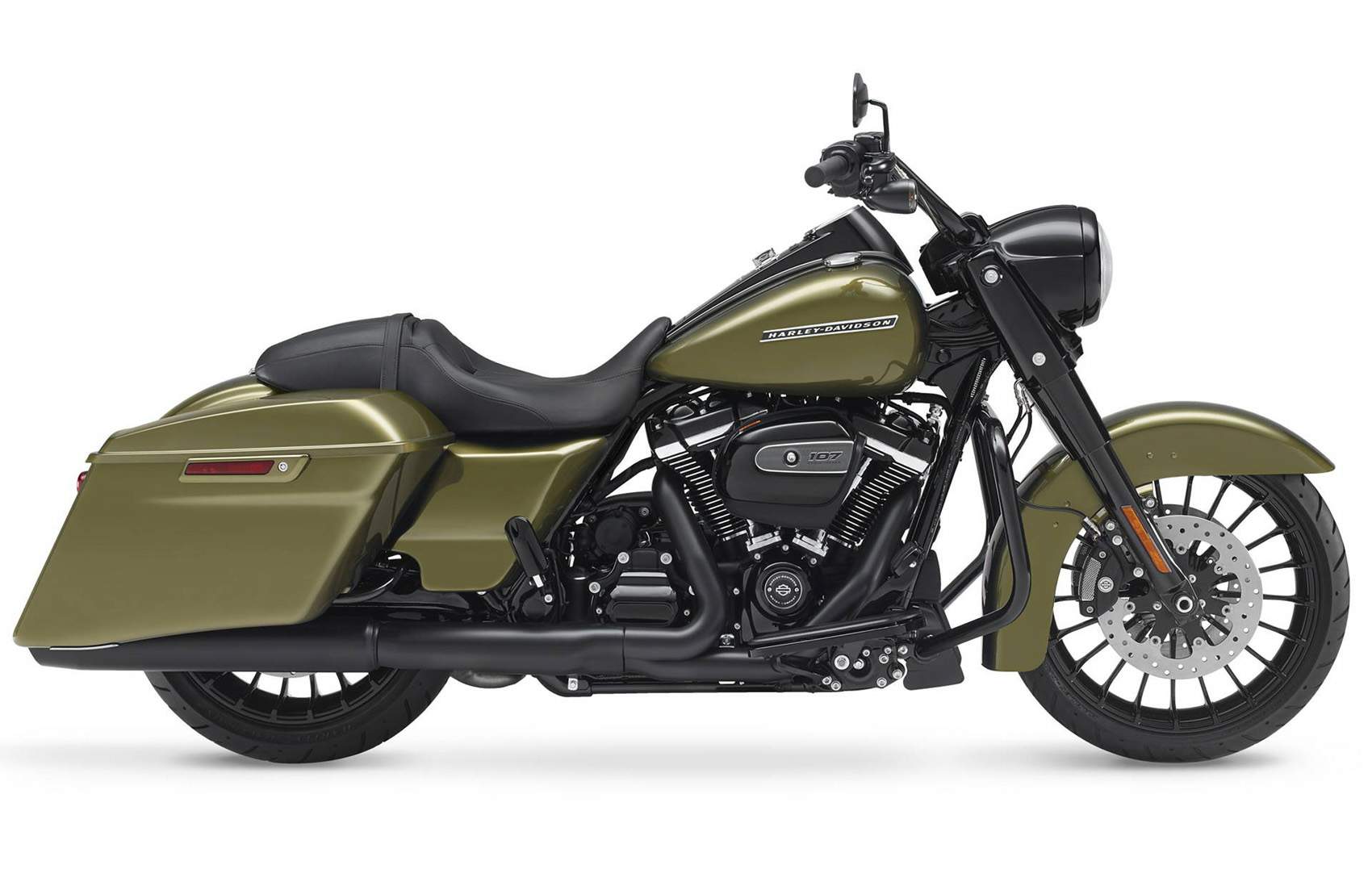

Harley-Davidson Harley Davidson FLHR Road King Special (2017-18) technical specifications

Harley-Davidson Harley Davidson FLHR Road King Special is produced in 2017-18. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in. Harley-Davidson Harley Davidson FLHR Road King Special weighs 354 kg / 781 lbs. Harley-Davidson Harley Davidson FLHR Road King Special has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson FLHR Road King Special
Years:	2017-18
Engine:	Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1746 cc / 107 cub in.
Bore x Stroke:	100 x 111 mm / 3.937 x 4.374 in
Cooling System:	Air cooled
Compression Ratio:	10.0:1
Exhaust:	Black, 2-1-2 dual exhaust with tapered mufflers
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Torque:	151 Nm / 111.4 ft/lb @ 3250 rpm
Clutch:	Hydraulically actuated 9 plate wet, Assist & Slip
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.0 / 5th 3.407 / 6th 2.875
Frame:	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension:	49 mm forks, Dual Bending Valve
Front Wheel Travel:	117 mm / 4.6 in
Rear Suspension:	Premium low height hand-adjustable rear shocks
Rear Wheel Travel:	54.6 mm / 2.15 in
Lean Angle, Left:	31º
Lean Angle, Right:	32º
Front Brakes:	2 x 300 mm disc, caliper type 32 mm, 4-piston fixed, dual floating rotors
Rear Brakes:	Single 300 mm, caliper type 32 mm, 4-piston, fixed rotor
ABS:	Standard
Wheels:	Black, Turbine Cast Aluminium
Front Wheel:	19 in x 3.5 in (483 mm x 89 mm)
Rear Wheel:	18 in x 5 in (457 mm x 127 mm)
Front Tyre:	130/60B19 61H
Rear Tyre:	180/55B18 80H
Rake:	26°
Trail:	175 mm / 6.9 in
Dimensions:	Length 2423 mm / 95.4 in Width 983 mm / 38.7 in Height 1146 mm / 45.1 in
Wheelbase:	1625 mm / 64 in
Seat Height:	Unladen 695 mm / 27.4 in. Laden 671 mm / 26.4 in
Ground Clearance:	135 mm / 5.3 in
Dry Weight:	354 kg / 781 lbs
Wet Weight:	371 kg / 818 lbs
Oil Capacity:	4.9 Litres / 5.2 US qts
Fuel Capacity:	22.7 Litres / 6.0 US gal
