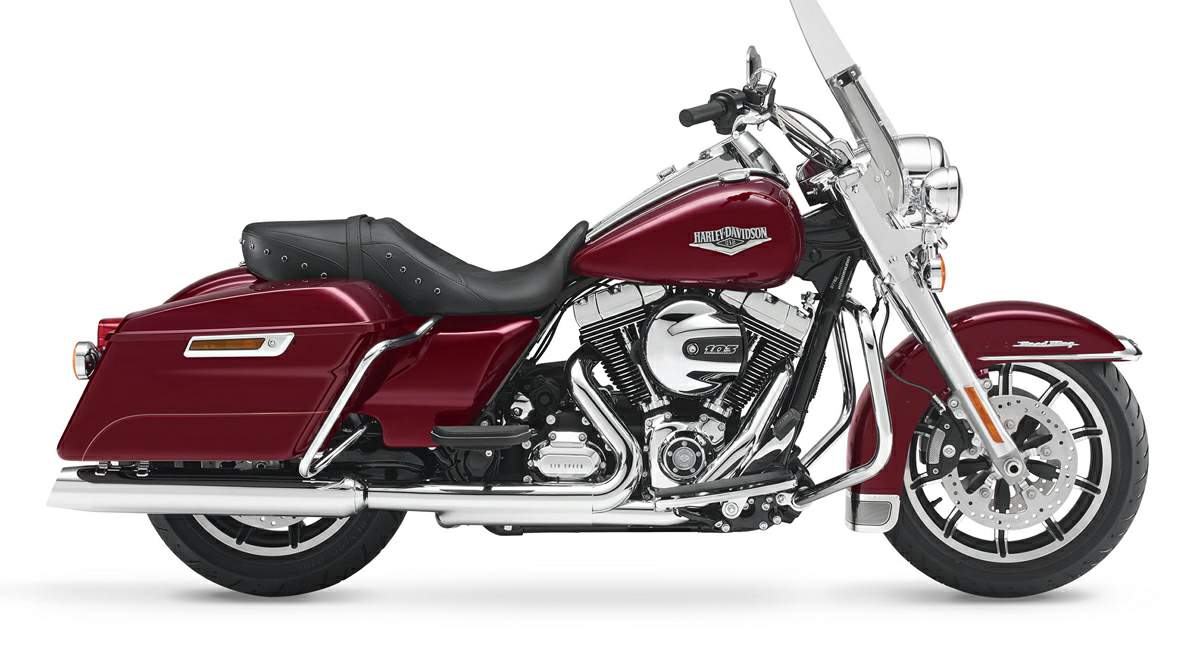

Harley-Davidson Harley Davidson FLHR Road King (2016) technical specifications

Harley-Davidson Harley Davidson FLHR Road King is produced in 2016. Engine is Four stroke, V-Twin, 'Twin Cam 103 with integrated oil cooler', displacement 1690 cc / 103.1 cub in. Harley-Davidson Harley Davidson FLHR Road King weighs 353 kg / 777 lbs. Harley-Davidson Harley Davidson FLHR Road King has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson FLHR Road King
Years:	2016
Engine:	Four stroke, V-Twin, 'Twin Cam 103 with integrated oil cooler'
Capacity:	1690 cc / 103.1 cub in.
Bore x Stroke:	98.4 x 111.1 mm
Cooling System:	Air cooled
Compression Ratio:	9.7:1
Exhaust:	Chrome, 2-1-2 dual exhaust with tapered mufflers
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starring:	Electric
Max Torque:	138 Nm / 14.1 kgf-m /102 ft/lb @ 3500 rpm
Transmission:	6 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/46 ratio
Gear Ratio:	1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4.0 / 5th 3.407 / 6th 2.875
Frame:	Mild steel, square-section backbone with twin downtubes
Lean Angle, Left:	31º
Lean Angle, Right:	33º
Front Suspension:	41.3 mm telescopic, cartridge-style damping
Rear Suspension:	Short, air-adjustable shock
Front Brakes:	2 x 292 mm disc, 4 piston caliper
Rear Brakes:	Single 292mm disc, 4 piston caliper
Wheels:	Optional Style Type Tubeless Chrome Aluminum Profile Laced
Front Wheel:	Impeller cast aluminum
Rear Wheel:	Impeller cast aluminum
Front Tyre:	130/80B17 65H
Rear Tyre:	180/65B16 81H
Rake:	26°
Trail:	170 mm / 6.7 in
Dimensions:	Length 2450 mm / 96.5 in
Wheelbase:	1625 mm / 64 in
Seat Height:	Unladen 715 mm / 28.1 in.
Ground Clearance:	135 / 5.3 in
Gross Vehicle Weight Rating:	617 kg / 1360 lbs
Dry Weight:	353 kg / 777 lbs
Wet Weight:	371 kg / 814 lbs
Oil Capacity:	3.8 Litres / 4.0 US qts
Fuel Capacity:	22.7 Litres / 6.0 US gal
