Harley-Davidson Harley Davidson CVO Road Glide Ultra (2015) technical specifications

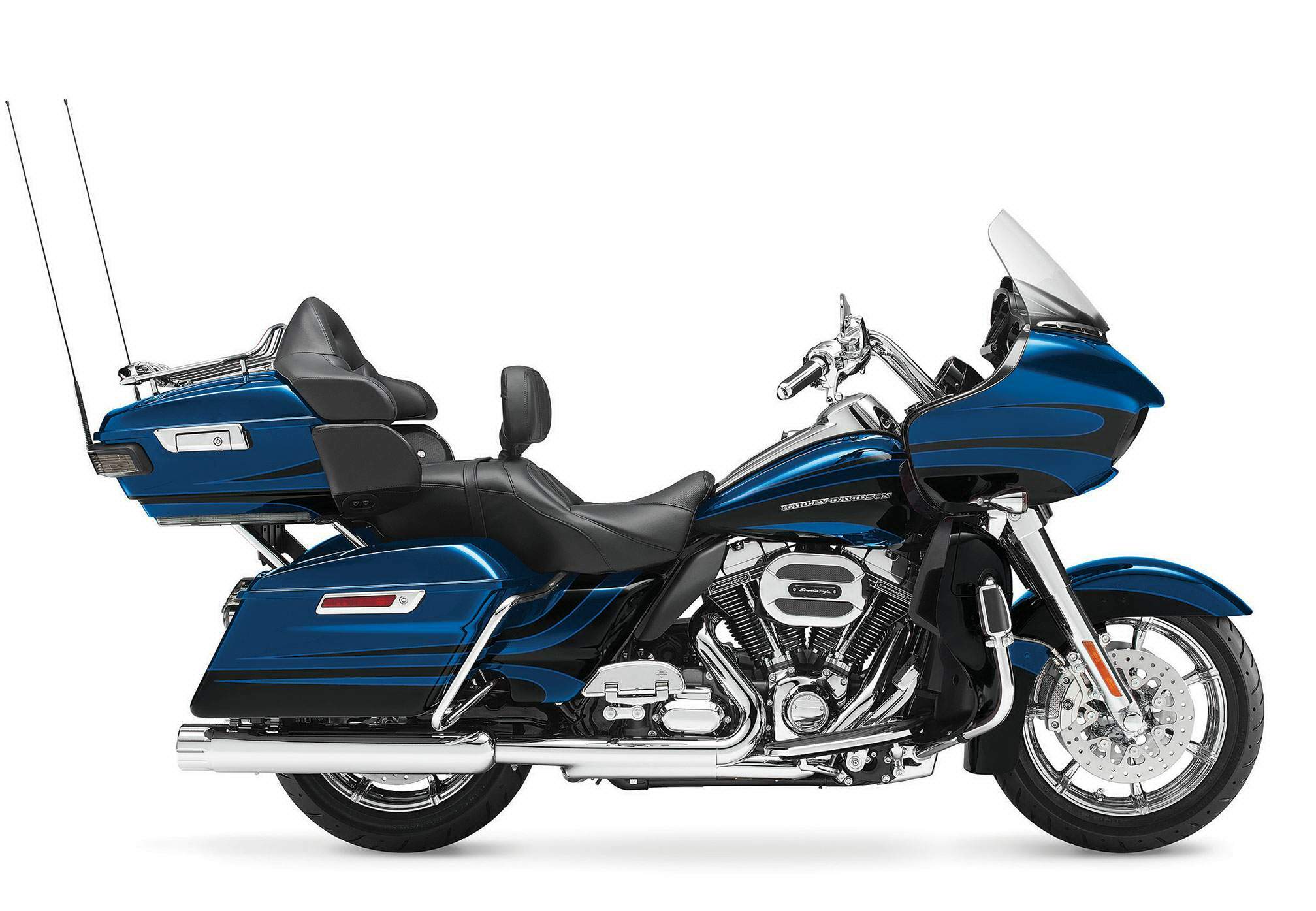

Harley-Davidson Harley Davidson CVO Road Glide Ultra is produced in 2015. Engine is Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, displacement 1804 cc / 110.1 cub in. Harley-Davidson Harley Davidson CVO Road Glide Ultra wet weight is 427.7 kg / 943 lbs. Harley-Davidson Harley Davidson CVO Road Glide Ultra has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson CVO Road Glide Ultra
Years:	2015
Engine:	Four stroke, Twin Cam 110™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Capacity:	1804 cc / 110.1 cub in.
Bore x Stroke:	101.6 x 111.3 mm
Cooling System:	Air cooled
Compression Ratio:	9.15:1
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Torque:	156 Nm / 15.9 kgf-m / 115 ft/lbs / @ 3750 rpm
Clutch:	Hydraulically actuated, 9-plate, wet, with high performance spring
Transmission:	6 Speed
Final Drive:	Belt
Gear Ratio:	1st 9.593 / 2nd 6.65 / 3rd 4.938 / 4th 4 / 5th 3.407 / 6th 2.875:1
Frame:	Mild steel, square-section backbone with twin downtubes
Front Suspension:	41.3 mm telescopic, cartridge-style damping
Rear Suspension:	Short, air-adjustable shock
Front Brakes:	2 x 292 mm disc, 4 piston caliper
Rear Brakes:	Single 292 mm disc, 4 piston caliper
Front Tyre:	D408 130/70B18 63H
Rear Tyre:	D407 180/55B18 80H
Rake:	26°
Trail:	170 mm / 6.7 in
Dimensions:	Length 2595 mm / 102.2 in.
Wheelbase:	1630 mm / 64 in.
Seat Height:	Laden 693 mm / 28.4 in Unladen 739 mm / 29.7 in.
Ground Clearance:	120 mm / 4.7 in
Gross Vehicle Weight Rating:	616.9 kg / 1360 lbs
Wet Weight:	427.7 kg / 943 lbs
Fuel Capacity:	22.7 Litres / 6.0 gal
