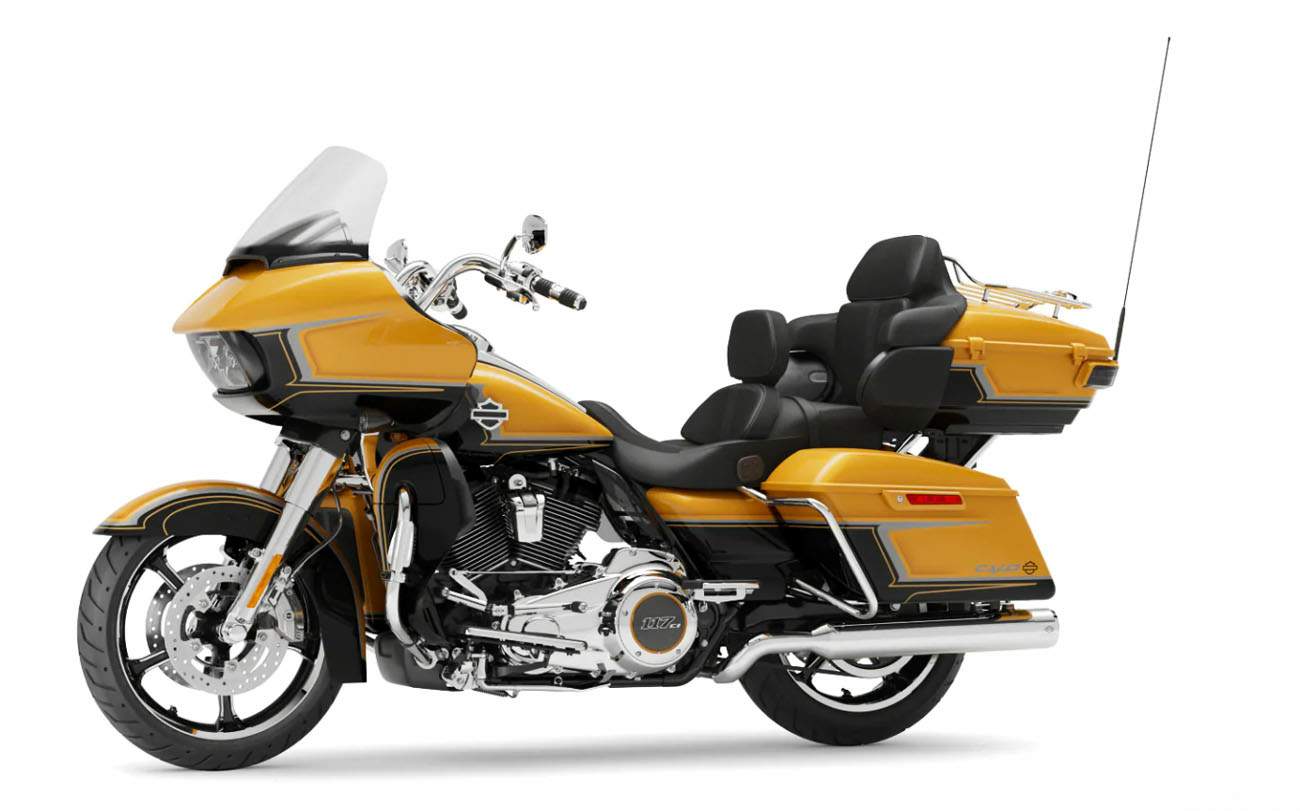

Harley-Davidson Harley Davidson CVO Road Glide Limited (2022) technical specifications

Harley-Davidson Harley Davidson CVO Road Glide Limited is produced in 2022. Engine is Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1923 cc / 117 cu-in , produces power 103 hp / 77 kW @ 5250 rpm and 169 Nm / 124.6 lb-ft @ 3500 rpm. Harley-Davidson Harley Davidson CVO Road Glide Limited weighs 420 kg / 927 lbs. Harley-Davidson Harley Davidson CVO Road Glide Limited has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson CVO Road Glide Limited
Years:	2022
Engine:	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1923 cc / 117 cu-in
Bore x Stroke:	103.5 X 114.3 mm
Cooling System:	Air cooled
Compression Ratio:	10.2:1
Exhaust:	Dual, with crossover
Induction:	Electronic sequential port fuel injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Power:	103 hp / 77 kW @ 5250 rpm
Max Torque:	169 Nm / 124.6 lb-ft @ 3500 rpm
Transmission:	6 Speed
Primary Drive:	Chain, 34/46 ratio
Final Drive:	Belt
Gear Ratio:	1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Frame:	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm:	Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension:	49mm Dual bending valve
Front Wheel Travel:	117 mm / 4.6 in
Rear Suspension:	Premium standard height hand-adjustable rear suspension
Rear Wheel Travel:	76 mm / 3 in
Front Brakes:	2 x 300mm floating rotors, 4-piston fixed caliper
Rear Brakes:	Single 300mm fixed rotor, 4-piston fixed caliper
ABS:	Standard
Wheels:	Gloss black and contrast chrome tomahawk
Wheels Optional:	Gloss black tomahawk
Front Tyre:	BW 130/60B19 61H
Rear Tyre:	BW 180/55B18 80H
Rake:	26°
Trail:	170 mm / 6.7 in
Dimensions:	Length 2570 mm / 101.2 in Width 1095 mm / 43.1 in Height 1435 mm / 56.5 in
Wheelbase:	1625 mm / 64.0 in
Seat Height:	760 mm / 29.9 in
Ground Clearance:	130 mm / 5.1 in
Dry Weight:	420 kg / 927 lbs
Wet Weight:	437 kg / 963 lbs
Fuel Capacity:	22.7 Litres / US 6.0 gal
