Gilera Nexus 500 (2003-06) technical specifications

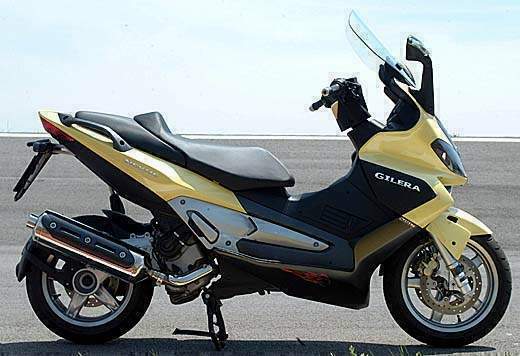

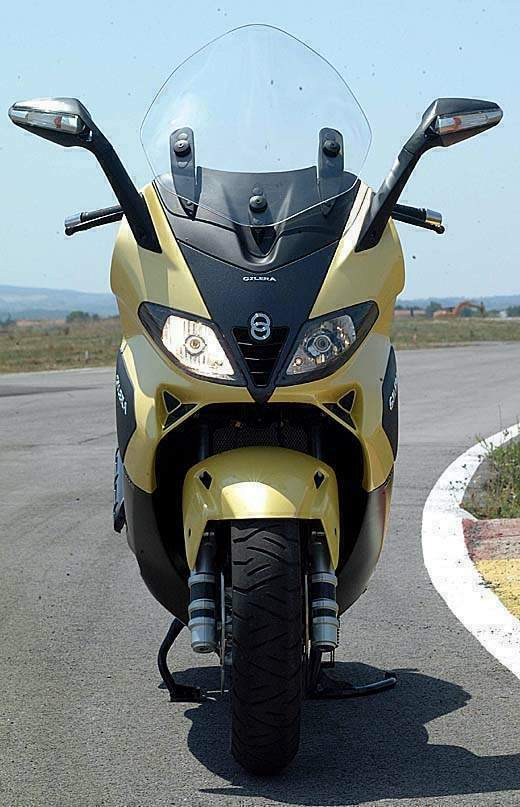

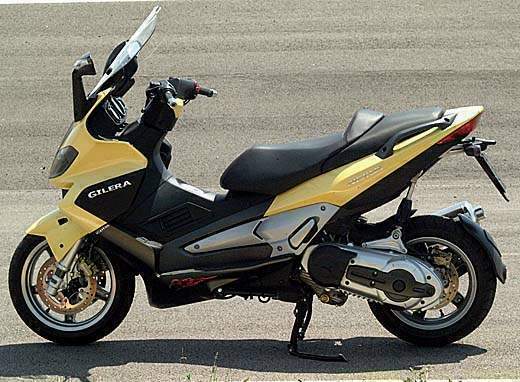

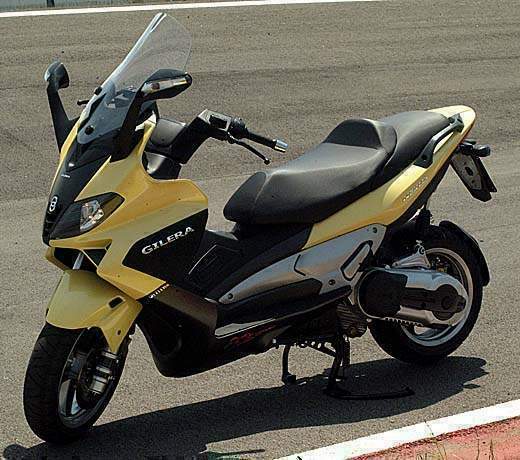

Gilera Nexus 500 is produced in 2003-06. Engine is Liquid cooled, four stroke, single cylinder, displacement 460 cc / 28.0 cu-in , produces power 40.1 hp / 29.3 kW @ 7500 rpm and 43 Nm / 31.7 lb-ft @ 5500 rpm. Gilera Nexus 500 top speed is 160.6 km/h / 100 mph. Gilera Nexus 500 wet weight is 216.0 kg / 476.2 lbs. Gilera Nexus 500 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Nexus 500
Years:	2003-06
Engine:	Liquid cooled, four stroke, single cylinder
Capacity:	460 cc / 28.0 cu-in
Bore x Stroke:	92 x 69 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Induction:	Magneti Marelli IAV Electronic injection
Lubrication:	Wet sump
Ignition:	Electronic inductive discharge
Starting:	Electric
Max Power:	40.1 hp / 29.3 kW @ 7500 rpm
Max Torque:	43 Nm / 31.7 lb-ft @ 5500 rpm
Transmission:	“Twist and Go”
Final Drive:	Belt
Front Suspension:	41mm Kayaba telehydraulic fork
Rear Suspension:	Progressive POWER DRIVE, Kayaba gas shock absorber with spring preload
Front Brakes:	2x 260mm discs 2 piston calipers
Rear Brakes:	Single 240mm discs 2 piston calipers
Front Tyre:	120/70-15
Rear Tyre:	160/60-14
Wheelbase:	1515 mm / 59.6 in
Seat Height:	765 mm / 30.1 in
Wet-Weight:	216.0 kg / 476.2 lbs
Fuel Capacity:	15 Litres / 3.9 US gal
Consumption Average:	17.8 km/lit
Standing ¼ Mile:	15.1 sec
Top Speed:	160.6 km/h / 100 mph
