Technical specifications
|
| Model: |

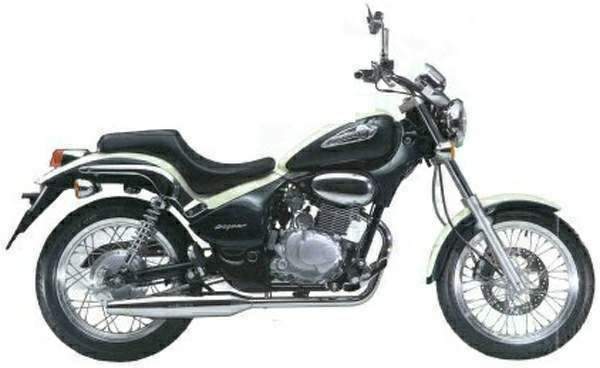

Coguar 125 |
| Years: |
2000-02 |
|
Engine:
|
Four stroke, single cylinder
|
|
Capacity:
|
124 cc / 7.6 cu-in
|
|
Bore x Stroke:
|
56.5 x 49.5 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
|
|
Induction:
|
Carburetor
|
|
Ignition:
|
CDI
|
|
Starting:
|
Electric
|
|
Max Power:
|
10.8 hp / 7.9 kW @ 8250 rpm
|
|
Max Torque:
|
9.2 Nm / 6.7 lb-ft @ 6500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
35mm Telescopic forks
|
|
Front Wheel Travel:
|
130 mm / 5.1 in
|
|
Rear Suspension:
|
Large oscillating fork, dual dampers
|
|
Rear Wheel Travel:
|
110 mm / 4.3 in
|
|
Front Brakes:
|
Single 260mm discs 2 piston caliper
|
|
Rear Brakes:
|
160mm Drum
|
|
Front Tyre:
|
100/80 -17
|
|
Rear Tyre:
|
130/70 -17
|
|
Dry Weight:
|
133 kg / 293 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.17 US gal
|
