Ducati Panigale V2 White Rosso (2020) technical specifications

Ducati Panigale V2 White Rosso is produced in 2020. Engine is Four stroke, 90° “L” twin cylinder, DOHC, Desmodromic 4 valves per cylinder, displacement 955 cc / 58.3 cu in , produces power 114 kW / 155 hp @ 10750 rpm and 104 Nm / 76.7 lb-ft @ 9000 rpm. Ducati Panigale V2 White Rosso weighs 176 kg / 388 lbs. Ducati Panigale V2 White Rosso has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Panigale V2 White Rosso
Years:	2020
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, Desmodromic 4 valves per cylinder
Capacity:	955 cc / 58.3 cu in
Bore x Stroke:	100 x 60.8 mm
Compression Ratio:	12.5:1
Cooling System:	Liquid cooled
Induction:	Fuel Injection Electronic fuel injection system. Twin injectors per cylinder. Full rideby-wire elliptical throttle bodies
Exhaust:	2-1-2-1 system, with 2 catalytic converters and 2 lambda probes
Emission:	Euro 5
Ignition:	Electronic
Starting:	Electric
Max Power:	114 kW / 155 hp @ 10750 rpm
Max Torque:	104 Nm / 76.7 lb-ft @ 9000 rpm
Clutch:	Hydraulically controlled slipper and self-servo wet multiplate clutch
Transmission:	6 Speed with Ducati Quick Shift (DQS) up/down EVO 2
Final Drive:	Chain; Front sprocket 15; Rear sprocket 43
Primary Drive:	Straight cut gears; Ratio 1.77:1
Gear Ratio:	1st 37/15 2nd 30/16 3rd 27/18 4th 25/20 5th 24/22 6th 23/24
Frame:	Monocoque Aluminium
Front Suspension:	Fully adjustable Showa BPF fork. 43 mm chromed inner tubes
Front Wheel Travel:	120 mm / 4.72 in
Rear Suspension:	Fully adjustable Sachs unit. Aluminum single-sided swingarm
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with Cornering ABS EVO
Rear Brakes:	Single 245 mm disc, 2-piston calliper with Cornering ABS EVO
Front Wheel:	5-spokes light alloy 3.50″ x 17
Rear Wheel:	5-spokes light alloy 5,50” x 17
Front Tyre:	120/70 ZR17 Pirelli Diablo Rosso Corsa II
Rear Tyre:	180/60 ZR17 Pirelli Diablo Rosso Corsa II

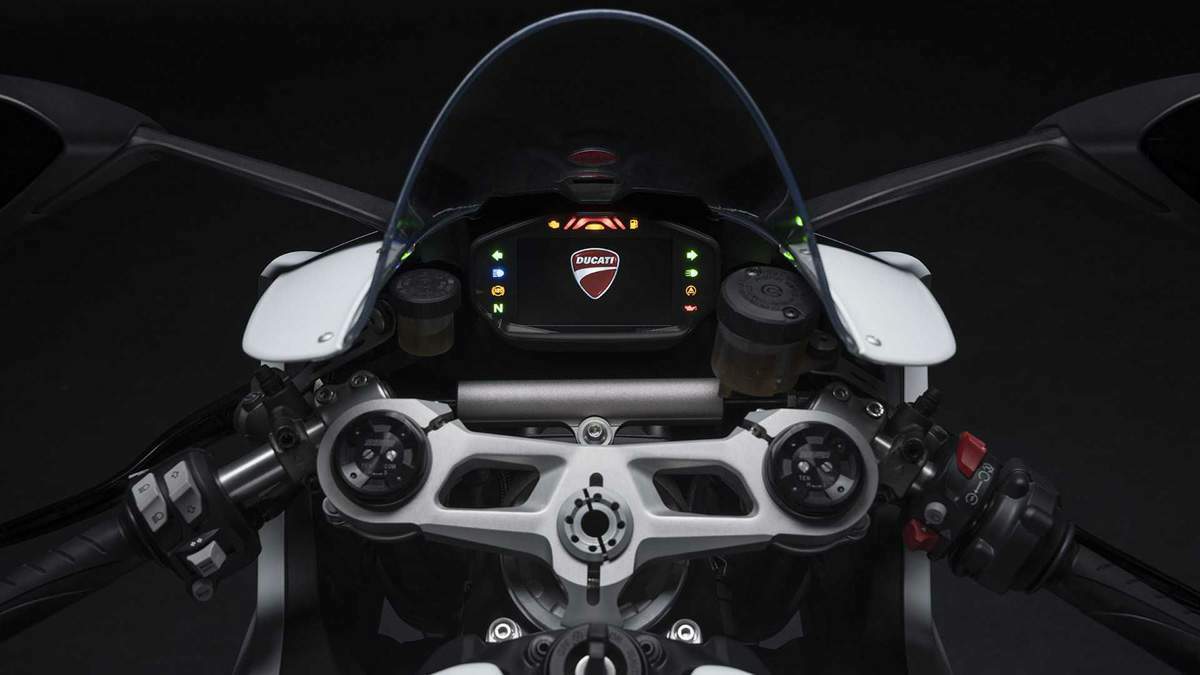

Display:	Digital unit with 4,3″ TFT colour display
Rake:	24º
Trail:	94 mm / 3.8 in
Wheelbase:	1436 mm / 56,5 in
Seat Height:	840 mm / 33.1 in
Dry Weight:	176 kg / 388 lbs
Wet Weight:	200 kg / 441 lbs
Fuel Capacity:	17 Litres / 4.5 US gal / 3.7 Imp gal
