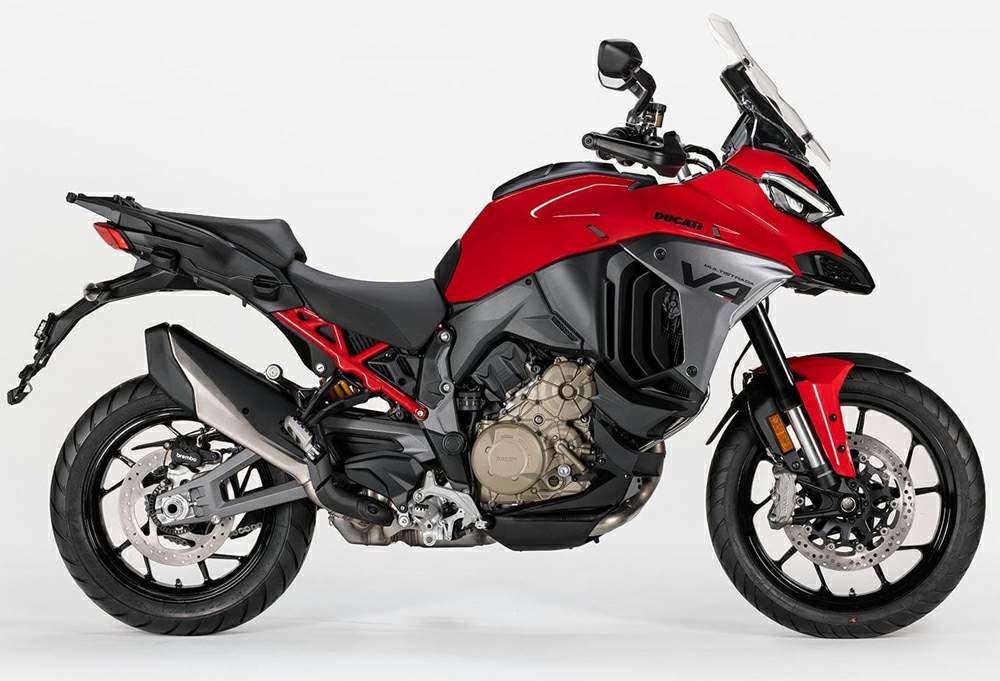

Ducati Multistrada V4 / V4S (2025) technical specifications

Ducati Multistrada V4 / V4S is produced in 2025. Engine is Four stroke, 90? Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order, displacement 1158 cc / 71 cu-in , produces power 170 hp / 125 kW @ 10500 rpm and 125 Nm / 92 lb-ft @ 8750 rpm. Ducati Multistrada V4 / V4S weighs 218 kg / 481 lbs. Ducati Multistrada V4 / V4S has 6 photos.
Technical specifications
+ Add to 'Compare list'Model: | Multistrada V4 / V4S |
Years: | 2025 |
Engine: | Four stroke, 90? Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order |
Capacity: | 1158 cc / 71 cu-in |
Bore x Stroke: | 83 x 53.5 mm |
Compression Ratio: | 14.0:1 |
Cooling System: | Liquid cooled |
Exhaust: | Stainless steel muffler, double catalytic converter and 4 lambda probes |
Emission: | Euro 5 |
Induction: | Electronic fuel injection system, ?eq 46 mm elliptical throttle bodies with Ride-by-Wire system |
Starting: | Electric |
Max Power: | 170 hp / 125 kW @ 10500 rpm |
Max Torque: | 125 Nm / 92 lb-ft @ 8750 rpm |
Clutch: | Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run |
Transmission: | 6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System |
Final Drive: | Chain, front sprocket Z16, rear sprocket Z42 |
Gear Ratios: | 1st 40/13, 2nd 36/16, 3rd 36/20, 4th 31/21, 5th 29/23, 6th 27/25 |
Primary Drive: | Straight cut gears, ratio 1.8:1 |
Frame: | Aluminum monocoque frame |
Front Suspension: | V4: 50 mm fully adjustable USD mechanical fork, compression and rebound damping adjustment. V4S: 0 mm fully adjustable USD fork, electronic compression and rebound damping adjustment with Ducati Skyhook Suspension, integrated stroke sensor |
Front Wheel Travel: | 170 mm / 6.7 in |
Rear Suspension: | V4: Fully adjustable monoshock, Remote spring preload adjustment, aluminum double-sided swingarm, automatic fast lowering device between 6 mph and 30 mph, aluminum double-sided swingarm V4S: Fully adjustable monoshock, electronic adjustment with Ducati Skyhook Suspension, automatic fast lowering device between 6 mph and 30 mph, aluminum double-sided swingarm |
Rear Wheel Travel: | 180 mm / 7.1 in |
Front Brakes: | V4: 2 x 320mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad calipers, radial master cylinder V4S: 2 x 330mm semi-floating discs, radially mounted Brembo M50 Stylema monobloc 4-piston 2-pad calipers, radial master cylinder |
Rear Brakes: | Single 280mm disc, Brembo 2-piston floating caliper |
ABS System: | Standard Cornering ABS |
Wheels: | Light alloy cast (Spoked optional) |
Front Rim: | 3 x 19 in |
Rear Rim: | 4.5 x 17 in |
Front Tyre: | 120/70 ZR 19 Pirelli Scorpion Trail II |
Rear Tyre: | 170/60 ZR 17 Pirelli Scorpion Trail II |
Rake: | 24.2? |
Trail: | 102.5 mm / 4.0 in |
Wheelbase: | 1567 mm / 61.7 in |
Seat Height: | 790 mm - 861mm / 31.1 in - 33.9 in |
Ground Clearance: | 220 mm / 8.6 in |
Dry Weight: | 218 kg / 481 lbs |
Wet Weight (without fuel): | V4: 229 kg/ 505 lbs V4S: 232 kg / 511.4 lbs |
Fuel Capacity: | 22 Litres / 5.8 US gal |
Instrumentation: | V4: 5" TFT color display V4S: 6.5 in TFT color display with Ducati Connect and full-map navigation system |
Standard Equipment: | V4: Riding Mode, Power Mode, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Ducati Cornering Light, Vehicle Hold Control, Daytime Running Light, Ducati Brake Light EVO, Ducati Quick Shift, Cruise control, Backlit handlebar switches, 5" TFT color display, Full LED headlight V4S: Riding Modes, Power Modes, ABS Cornering, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light, Ducati Cornering Light, Ducati Brake Light EVO, Vehicle Hold Control, Radar system, Ducati Skyhook Suspension, Minimum preload, Ducati Quick Shift, Cruise control, Hands-free, Backlit handlebar switches, 6.5" TFT color display with Ducati Connect and full-map navigation system, Full LED headlight |
