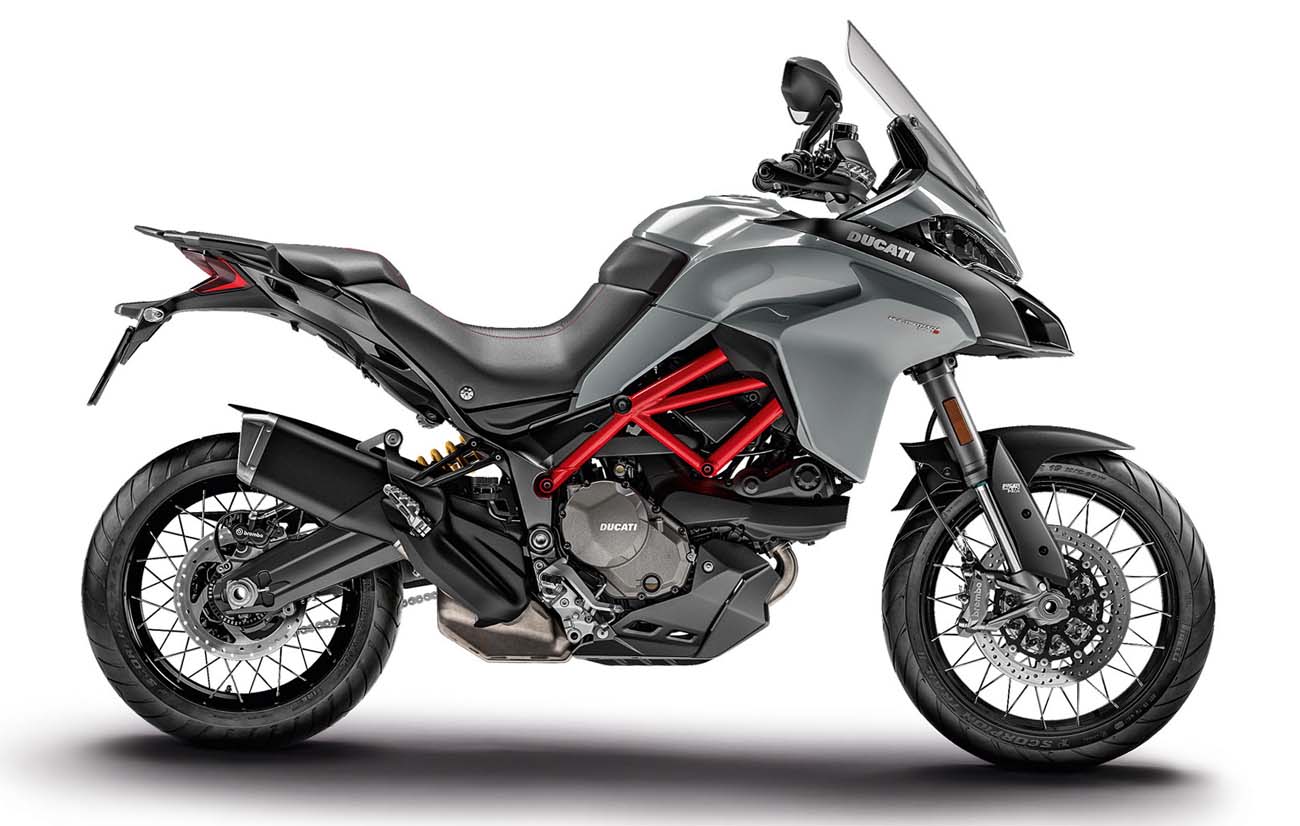

Ducati Multistrada 950 S (2020) technical specifications

Ducati Multistrada 950 S is produced in 2020. Engine is Testastretta, L-Twin cylinder, 4 valves per cylinder, Desmodromic, displacement 937 cc / 57.2 cu in , produces power 83.1 kW / 113 hp @ 9000 rpm and 96.2 Nm / 9.8 kgf-m / 71 lb-ft @ 7750 rpm. Ducati Multistrada 950 S weighs 207 kg / 456 lbs - Spoked version: 212 kg / 456 lbs. Ducati Multistrada 950 S has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Multistrada 950 S
Years:	2020
Engine:	Testastretta, L-Twin cylinder, 4 valves per cylinder, Desmodromic
Capacity:	937 cc / 57.2 cu in
Bore x Stroke:	94 x 67.5 mm
Compression Ratio:	12.6:1
Cooling System:	Liquid cooled
Induction:	Bosch electronic fuel injection system, 53 mm throttle bodies with Ride-by-Wire system
Exhaust:	Stainless steel single muffler, Catalytic converter and 2 lambda probes
Ignition:	Electronic
Starting:	Electric
Max Power:	83.1 kW / 113 hp @ 9000 rpm
Max Torque:	96.2 Nm / 9.8 kgf-m / 71 lb-ft @ 7750 rpm
Clutch:	Slipper and self-servo wet multiplate clutch with hydraulic control
Transmission:	6-Speed
Primary Drive Ratio:	Straight cut gears, ratio 1.84 : 1
Gear Ratios:	1st 37:15 / 2nd 30:17 / 3rd 28:20 / 4th 26:22 / 5th 24:23 / 6th 23:24
Final Drive Ratio:	15:43
Final Drive:	Chain, Front sprocket Z15, Rear sprocket Z43
Frame:	Tubular steel trellis frame
Front Suspension:	48 mm fully adjustable usd fork, Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension Evo (DSS)
Front Wheel Travel:	170 mm / 6.7 in
Rear Suspension:	Fully adjustable monoshock, Electronic compression, rebound damping and spring pre-load adjustment with Ducati Skyhook Suspension Evo (DSS), Aluminium double-sided swingarm
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2 x 320 mm semi-floating discs, Radially mounted Brembo monobloc 4-piston 2-pad callipers, Radial Master Cylinder, Bosch Cornering ABS
Rear Brakes:	Single 265mm disc, 2-piston floating calliper, Cornering ABS
Front Wheel:	Light alloy casted 3.0″ x 19″ - Optional Spoked: Tubeless spoked wheel in light alloy 3.0″ x 19″
Rear Wheel:	Light alloy casted 4.5″ x 17″ - Optional Spoked: Tubeless spoked wheel in light alloy 4.5″ x 17″
Front Tyre:	120/70 - R19, Pirelli Scorpion Trail II
Rear Tyre:	170/60 - R17, Pirelli Scorpion Trail II
Rake:	25°
Trail:	106 mm / 4.2 in
Wheelbase:	1594 mm / 62.8 in
Seat Height:	840 mm / 33.1 in, 860 mm /33.9 in with high seat accessory, 820 mm / 32.3 in with low seat
Dry Weight:	207 kg / 456 lbs - Spoked version: 212 kg / 456 lbs
Wet Weight:	230 kg / 507 lbs - Spoked version: 235 kg / 518 lbs
Fuel Capacity:	20 Litres / 5.3 US gal / 4.4 Imp gal
Instrumentation:	LCD, Ducati electronics Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC)
