Ducati Multistrada 1200 DVT (2017) technical specifications

Ducati Multistrada 1200 DVT is produced in 2017. Engine is Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder, displacement 1198.4 cc / 73.1 cu-in , produces power 113.3 kW / 152 hp @ 9500 rpm and 136 Nm / 13.9 kgf-m / 100.3 lb-ft @ 7500 rpm. Ducati Multistrada 1200 DVT weighs 212 kg / 467 lbs. Ducati Multistrada 1200 DVT has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Multistrada 1200 DVT
Years:	2017

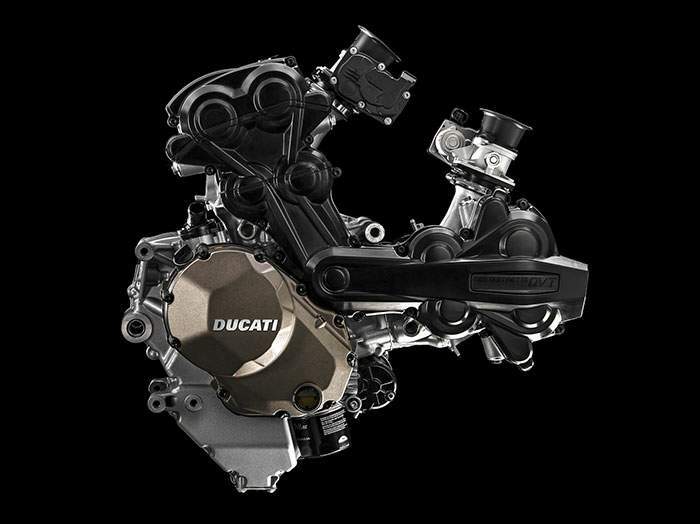

Engine:	Four stroke, 90° “L” twin cylinders,Testastretta DVT with Desmodromic Variable Timing, DOHC, 4 valves per cylinder
Capacity:	1198.4 cc / 73.1 cu-in
Bore x Stroke:	106 x 67.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5:1
Lubrication:	Wet sump
Exhaust:	Stainless steel muffler with catalytic converter and 2 lambda probes, aluminium tail pipes
Induction:	Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
Ignition:	Marelli electronic
Starting:	Electric
Max Power:	113.3 kW / 152 hp @ 9500 rpm
Max Torque:	136 Nm / 13.9 kgf-m / 100.3 lb-ft @ 7500 rpm
Clutch:	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Transmission:	6 Speed
Final Drive:	Chain; front sprocket 15; rear sprocket 40
Straight Cut Gear Ratio:	1.84:1
Gear Ratio:	1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 22/25
Frame:	Tubular steel Trellis frame
Front Suspension:	48 mm fully adjustable Upside down forks
Front Wheel Travel:	170 mm / 6.7 in
Rear Suspension:	Fully adjustable Sachs monoshock unit. Remote spring preload adjustment. Aluminium single-sided swingarm
Rear Wheel Travel:	170 mm / 6.7 in
Front Brakes:	2 x 330 mm Semi-floating discs, radially mounted Brembo monoblock Evo M50 4-piston callipers, 2-pad, radial pump with cornering ABS as standard equipment
Rear Brakes:	Single 265 mm disc, 2-piston floating calliper, with cornering ABS as standard equipment
Front Wheel:	Y-shaped 3-spoke in light alloy 3.50" x 17"
Rear Wheel:	Y-shaped 3-spoke in light alloy 6.00" x 17"
Front Tyre:	Pirelli Scopion Trail II 120/70 R17
Rear Tyre:	Pirelli Scorpion Trail II 190/55 R17
Rake:	24°
Trail:	110 mm / 4.33 in
Dimensions:	Length 2190 mm / 86.2 in Width 1000 mm / 39.8 in Height 1480 mm / 55.5 in
Wheelbase:	1535 mm / 60.2 in
Seat Height:	825 mm / 32.5 in - 845 mm / 33.3 in adjustable
Dry Weight:	212 kg / 467 lbs
Wet Weight:	235 kg / 518 lbs
Fuel Capacity:	20 Litres / 5.3 US gal / 4.4 Imp gal
