Ducati Multistrada 1200 (2012) technical specifications

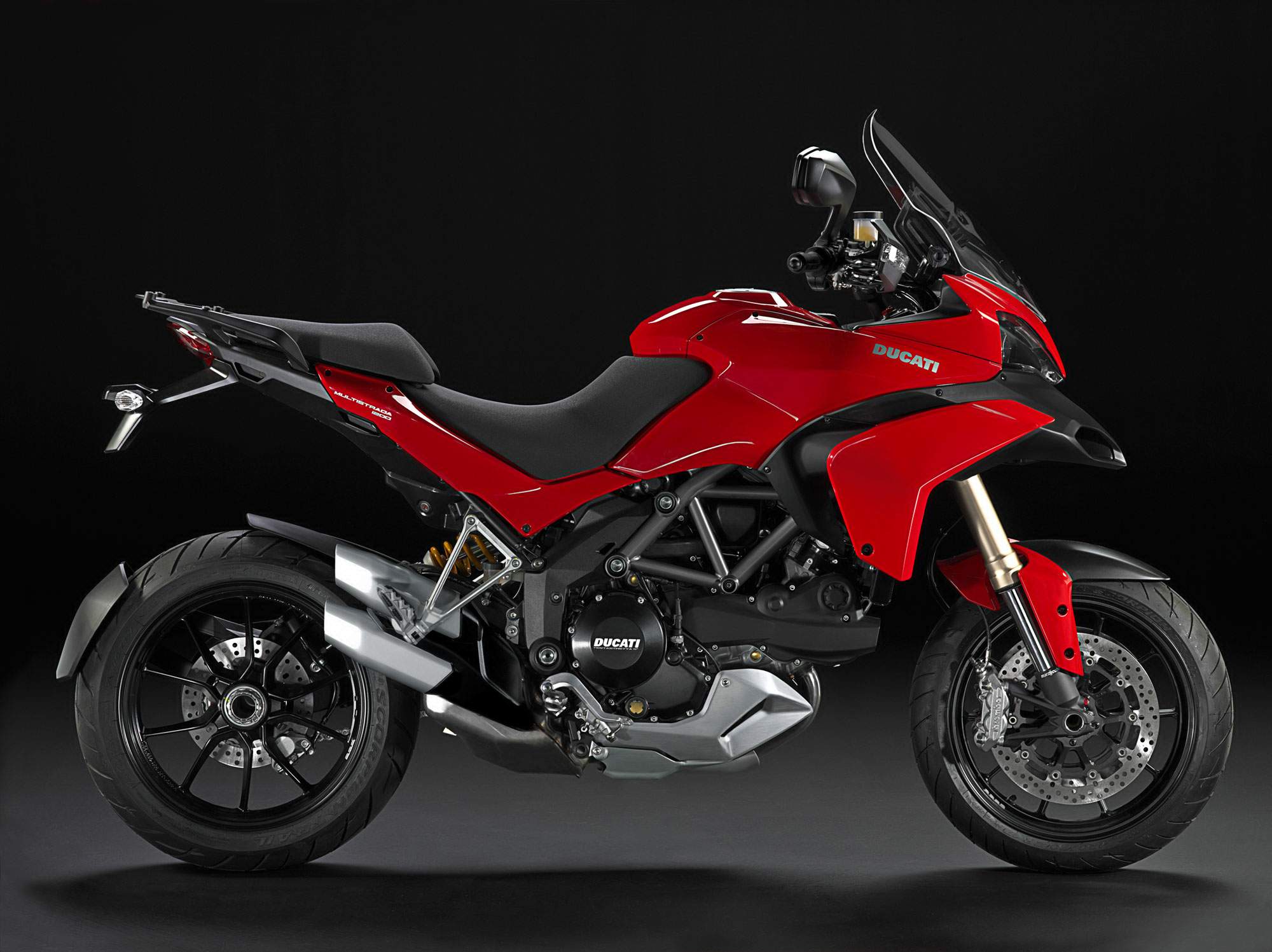

Ducati Multistrada 1200 is produced in 2012. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, displacement 1198.4 cc / 73.1 cu-in , produces power 110.3 kW / 150 hp @ 9250 rpm and 118.7 Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm. Ducati Multistrada 1200 weighs 188 kg / 417 lbs. Ducati Multistrada 1200 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Multistrada 1200 |
| Years: | 2012 |
| Engine: | Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder |
| Capacity: | 1198.4 cc / 73.1 cu-in |
| Bore x Stroke: | 106 x 67.9 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 11.5:1 |
| Lubrication: | Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
| Exhaust: | Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes |
| Induction: | Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies |
| Ignition: | Marelli electronic |
| Starting: | Electric |
| Max Power: | 110.3 kW / 150 hp @ 9250 rpm |
| Max Torque: | 118.7 Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm |
| Clutch: | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
| Transmission: | 6 Speed |
| Final Drive: | Chain #530, front sprocket 15; rear sprocket 40 |
| Straight Cut Gear Ratio: | 1.84:1 |
| Gear Ratio: | 1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25 |
| Frame: | Tubular steel trellis frame |
| Front Suspension: | Marzocchi 50 mm fully adjustable USD forks |
| Front Wheel Travel: | 170 mm / 6.7 in |
| Rear Suspension: | Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
| Rear Wheel Travel: | 170 mm / 6.7 in |
| Front Brakes: | 2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment |
| Rear Brakes: | Single 245 mm disc, 2-piston caliper |
| Front Wheel: | 10-spoke light alloy, 3.50 x 17 |
| Rear Wheel: | 10-spoke light alloy, 6.00 x 17 |
| Front Tyre: | 120/70 - ZR17 |
| Rear Tyre: | 190/55 - ZR17 |
| Rake: | 25° |
| Trail: | 110 mm / 4.33 in |
| Dimensions: | Length: 2200 mm / 86.6 in Width: 945 mm / 37.2 in Height: 1310 mm / 51.5 in |
| Wheelbase: | 1530mm / 60.2 in |
| Seat Height: | 850 mm / 33.4 in |
| Dry Weight: | 188 kg / 417 lbs |
| Wet Weight: | 217 kg / 478 lbs |
| Fuel Capacity: | 20 Litres / 5.3 US gal / 4.4 Imp gal |
