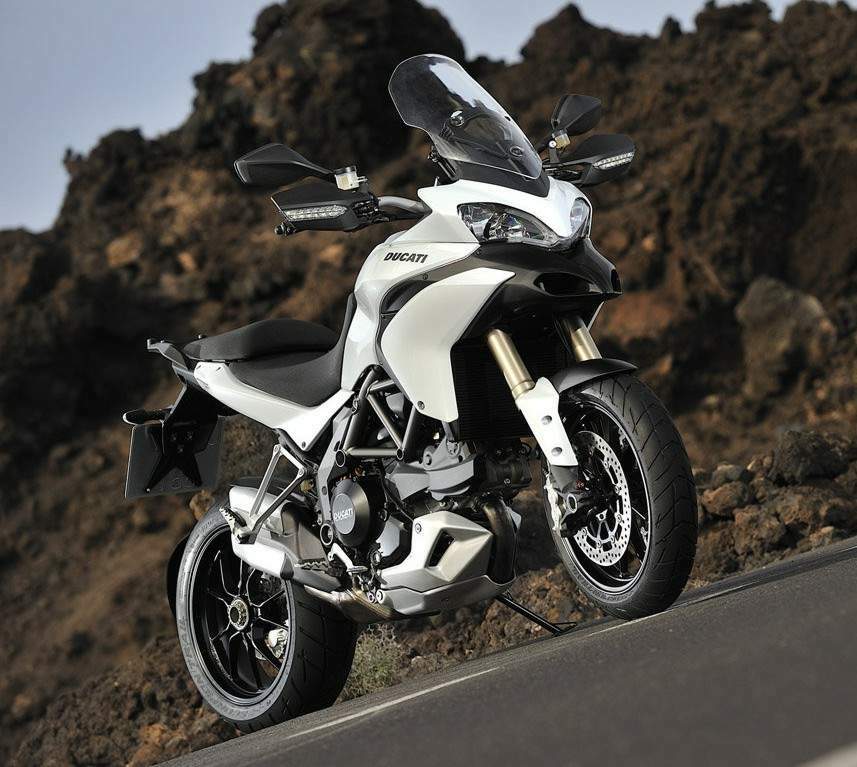

Ducati Multistrada 1200 (2010) technical specifications
![Ducati Multistrada 1200 technical specifications Ducati Multistrada 1200 technical specifications](https://www.moto-data.net/media/ducati/pics/ducati-multistrada-1200-2010[1].jpg)
Ducati Multistrada 1200 is produced in 2010. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, displacement 1198.4 cc / 73.1 cu in , produces power 110.3 kW / 150 hp @ 9250 rpm and 118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm. Ducati Multistrada 1200 weighs 188 kg / 417 lbs. Ducati Multistrada 1200 has 5 photos.
Technical specifications
+ Add to 'Compare list'Model: | Multistrada 1200 |
Years: | 2010 |
Engine: | Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder |
Capacity: | 1198.4 cc / 73.1 cu in |
Bore x Stroke: | 106 x 67.9 mm |
Cooling System: | Liquid cooled |
Compression Ratio: | 11.5:1 |
Lubrication: | Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
Exhaust: | Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes |
Induction: | Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies |
Ignition: | Marelli electronic |
Start5ing: | Electric |
Max Power: | 110.3 kW / 150 hp @ 9250 rpm |
Max Torque: | 118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm |
Clutch: | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run. |
Transmission: | 6 Speed |
Final Drive: | Chain #530, front sprocket 15; rear sprocket 40 |
Straight Cut Gear Ratio: | 1.84:1 |
Gear Ratio: | 1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25 |
Frame: | Tubular steel trellis frame |
Front Suspension: | Marzocchi 50 mm fully adjustable USD forks |
Front Wheel Travel: | 170 mm / 6.7 in |
Rear Suspension: | Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm |
Rear Wheel Travel: | 170 mm / 6.7 in |
Front Brakes: | 2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment |
Rear Brakes: | Single 245 mm disc, 2-piston caliper |
Front Wheel: | 10-spoke light alloy, 3.50 x 17 |
Rear Wheel: | 10-spoke light alloy, 6.00 x 17 |
Front Tyre: | 120/70 - ZR17 |
Rear Tyre: | 190/55 - ZR17 |
Rake: | 25° |
Trail: | 110 mm / 4.33 in |
Dimensions: | Length: 2200 mm / 86.6 in Width: 945 mm / 37.2 in Height: 1310 mm / 51.5 in |
Wheelbase: | 1530mm / 60.2 in |
Seat Height: | 850 mm / 33.4 in |
Dry Weight: | 188 kg / 417 lbs |
Wet Weight: | 217 kg / 478 lbs |
Fuel Capacity: | 20 Litres / 5.3 US gal / 4.4 Imp gal |
