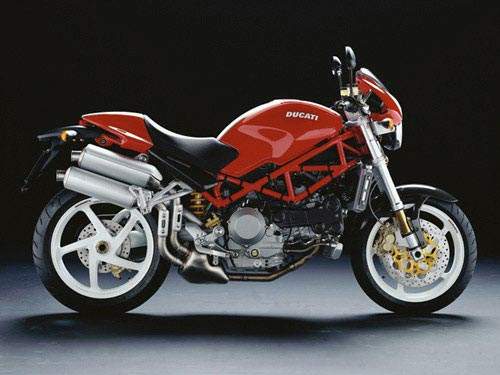

Ducati Monster S4R (2005) technical specifications

Ducati Monster S4R is produced in 2005. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven, displacement 996 cc / 60.8 cu in , produces power 83.4 kW / 113 hp @ 8750 rpm and 95.5 Nm / 9.6 kgf-m / 70.4 ft-lb @ 7000 rpm. Ducati Monster S4R top speed is 235.5 km/h / 146.3 mph. Ducati Monster S4R weighs 193 kg / 425lbs. Ducati Monster S4R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Monster S4R
Years:	2005
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, belt driven
Capacity:	996 cc / 60.8 cu in
Bore x Stroke:	96 x 68.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.6:1
Lubrication:	Wet sump
Engine Oil:	Semi-Synthetic, 10W/40
Exhaust:	2 x Aluminium mufflers with 3-way catalytic converter (non-catalytic on USA version)
Induction:	Marelli electronic fuel injection, 50 mm throttle bodies
Ignition:	Analogue CDI (Capacitive Discharge Ignition)
Spark Plug:	Champion, RA59GC, NGK DCPR9EX
Starting:	Electric
Max Power:	83.4 kW / 113 hp @ 8750 rpm
Max Torque:	95.5 Nm / 9.6 kgf-m / 70.4 ft-lb @ 7000 rpm
Clutch:	Dry multiplate with hydraulic control
Transmission:	6 Speed
Final Drive:	Chain; front sprocket 15; rear sprocket 42
Primary Drive Ratio:	Straight cut gears, ratio 1.85:1 (32/59)
Gear Ratio:	1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Final Drive Ratio:	2.8:1 (15/42)
Frame:	Tubular steel trellis
Front Suspension:	Showa upside-down fully adjustable 43 mm fork.
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Progressive linkage with Showa fully adjustable monoshock with piggy back. Aluminium single armed swing-arm.
Rear Wheel Travel:	148 mm / 5.8 in
Front Brakes:	2 x 320 mm Discs, 4 piston calipers
Rear Brakes:	Single 245 mm disc, 2 piston caliper
Front Tyre:	120/70 - ZR17
Rear Tyre:	180/55 - ZR17
Rake:	24°
Trail:	96 mm / 3.8 in
Dimensions:	Length: 2121 mm / 83.5 in Width: 790 mm / 31.1 in Height 1030 mm / 40.6 in
Wheelbase:	1440 mm / 56.7 in
Seat Height:	806 mm / 31.7 in
Dry Weight:	193 kg / 425lbs
Fuel Capacity:	15 L / 4.0 US gal / 3.3 Imp gal
Consumption Average:	5.4 L/100 km / 18.5 km/l / 43.5 US mpg / 52.3 Imp mpg
Standing ¼ Mile:	10.8 sec
Top Speed:	235.5 km/h / 146.3 mph
Reviews:	Motorbikes Today /Motocorse
