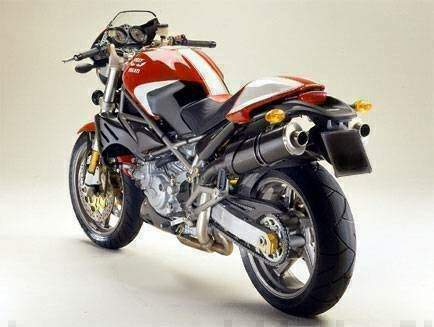

Ducati Monster S4 Fogarty (2001) technical specifications

Ducati Monster S4 Fogarty is produced in 2001. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder, displacement 916 cc / 55.9 cu in , produces power 74 kW / 101 hp / @ 8750 rpm and 92 Nm / 9.3 kgf-m / 67.85 ft-lb @ 7000 rpm. Ducati Monster S4 Fogarty top speed is 239 km/h / 148.5 mph. Ducati Monster S4 Fogarty weighs 193 kg / 425.5 lbs. Ducati Monster S4 Fogarty has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Monster S4 Fogarty
Years:	2001
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder
Capacity:	916 cc / 55.9 cu in
Bore x Stroke:	94 x 66 mm
Cooling System:	Liquid cooled
Compression Ratio:	11:1
Lubrication:	Wet sump
Engine Oil:	Semi-Synthetic, 10W/40
Induction:	Marelli electronic fuel injection,50mm throttle body
Ignition:	Analogue CDI (Capacitive Discharge Ignition)
Spark Plug:	Champion, RA59GC
Starting:	Electric
Max Power:	74 kW / 101 hp / @ 8750 rpm
Max Torque:	92 Nm / 9.3 kgf-m / 67.85 ft-lb @ 7000 rpm
Clutch:	Dry multiplate with hydraulic control
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Tubular steel trellis
Front Suspension:	Showa 43 mm upside-down fully adjustable fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Progressive linkage with fully adjustable Sachs monoshock with piggy back aluminum swing arm.
Rear Wheel Travel:	148 mm / 5.8 in
Front Brakes:	2 x 320 mm Discs, 4 piston calipers
Rear Brakes:	Single 245 mm disc, 2 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	24°
Trail:	96 mm / 3.8 in
Dimensions:	Length: 2121 mm / 83.5 in Width: 885 mm / 34.8 in Height 1222 mm / 48.1 in
Wheelbase:	1440 mm / 56.7 in
Seat Height:	803 mm / 31.6 in
Dry Weight:	193 kg / 425.5 lbs
Fuel Capacity:	15 Litres / 4.0 US gal / 3.3 Imp gal
Reserve:	3.5 L / 0.9 US gal / 0.8 Imp gal
Consumption Average:	5.3 L/100 km / 18.7 km/l / 44 US mpg / 53 Imp mpg
Standing ¼ Mile:	11.1 sec / 198 km/h / 123 mph
Top Speed:	239 km/h / 148.5 mph
