Ducati Monster 821 (2017-18) technical specifications

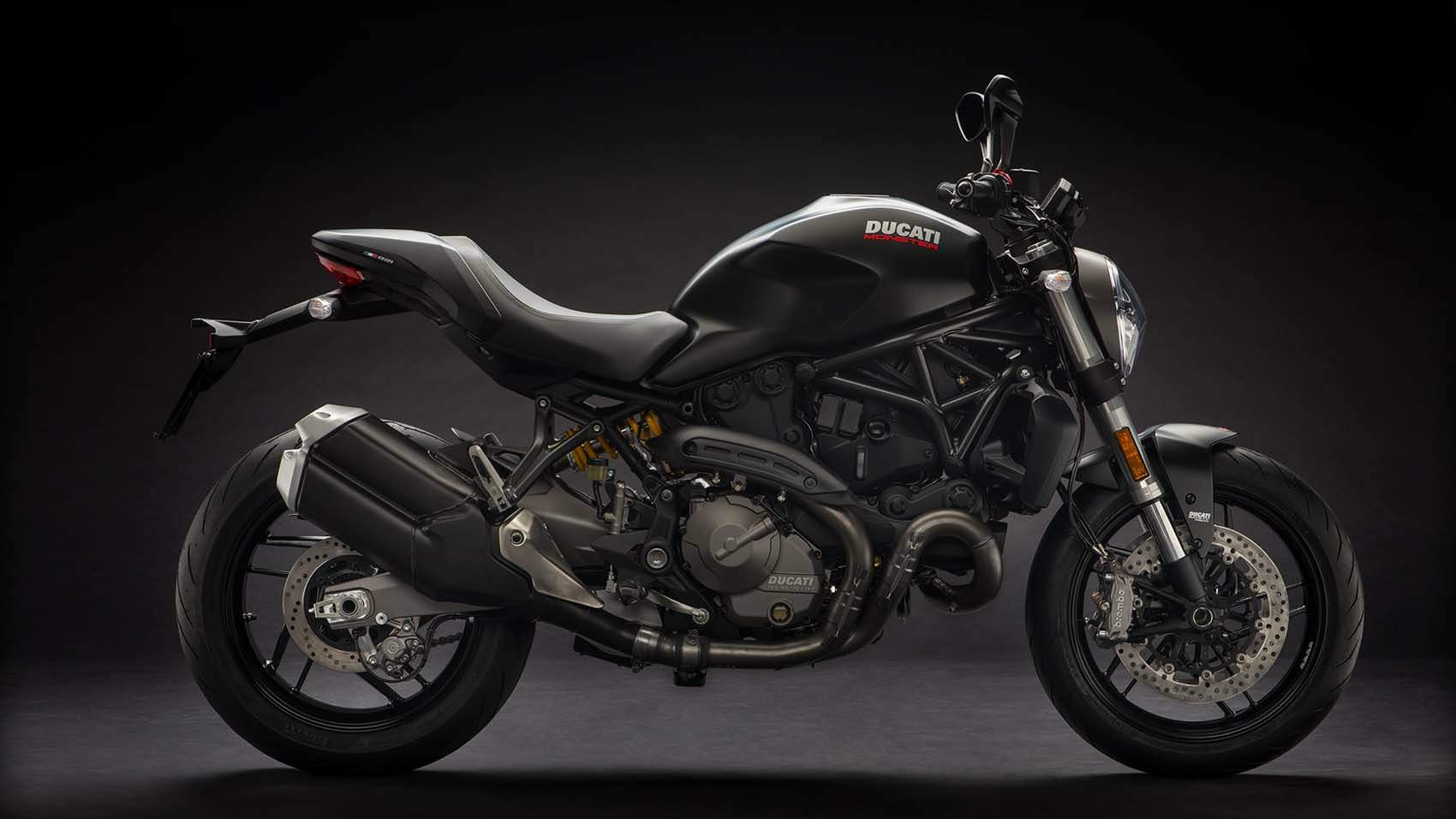

Ducati Monster 821 is produced in 2017-18. Engine is Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, displacement 821 cc / 50.1 cu-in , produces power 80 kW / 109 hp @ 9250 rpm and 86 Nm / 9.1 kgf-m / 63 lb-ft @ 7750 rpm. Ducati Monster 821 weighs 180.5 kg / 398 lbs. Ducati Monster 821 has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Monster 821
Years:	2017-18
Engine:	Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder
Capacity:	821 cc / 50.1 cu-in
Bore x Stroke:	88 x 67.5 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.8:1
Exhaust:	Stainless steel muffler and aluminium and cap; lightweight 2-1 system with catalytic converter with 2 lambda probes
Induction:	Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Ignition:	Marelli electronic
Starting:	Electric
Max Power:	80 kW / 109 hp @ 9250 rpm
Max Torque:	86 Nm / 9.1 kgf-m / 63 lb-ft @ 7750 rpm
Clutch:	Slipper and self-servo wet multiplate clutch with mechanical control
Transmission:	6 Speed
Final Drive:	Chain, Front sprocket 15; Rear sprocket 46
Gear Ratio:	1st 37/15 2nd 30/17 3rd 28/20 4th 26/22 5th 24/23 6th 23/24
Primary Drive:	Straight cut gears, ratio 1.85:1
Frame:	Tubular steel Trellis frame attached to the cylinders head
Front Suspension:	Kayaba 43mm upside-down fork
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Progressive linkage with adjustable monoshock. Aluminum double-sided swingarm
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 mm semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axial pump with ABS as standard equipment
Rear Brakes:	Single 245 mm disc, 2-piston floating calliper with ABS as standard equipment
Front Wheel:	10-spoke in light alloy, 3.50" x 17"
Rear Wheel:	10-spoke in light alloy, 5.50" x 17"
Front Tyre:	120/70 ZR 17 Pirelli Diablo Rosso III
Rear Tyre:	180/55 ZR17 Pirelli Diablo Rosso III
Rake:	24.3°
Trail:	93.2mm / 3.7in
Wheelbase:	1480 mm / 58.3 in
Seat Height:	785 mm - 810 mm / 30.9 in - 31.9 in
Dry Weight:	180.5 kg / 398 lbs
Wet Weight:	206 kg / 454 lbs
Fuel Capacity:	16.5 Litres / 4.36 US gal
