Ducati Monster 696 (2013) technical specifications

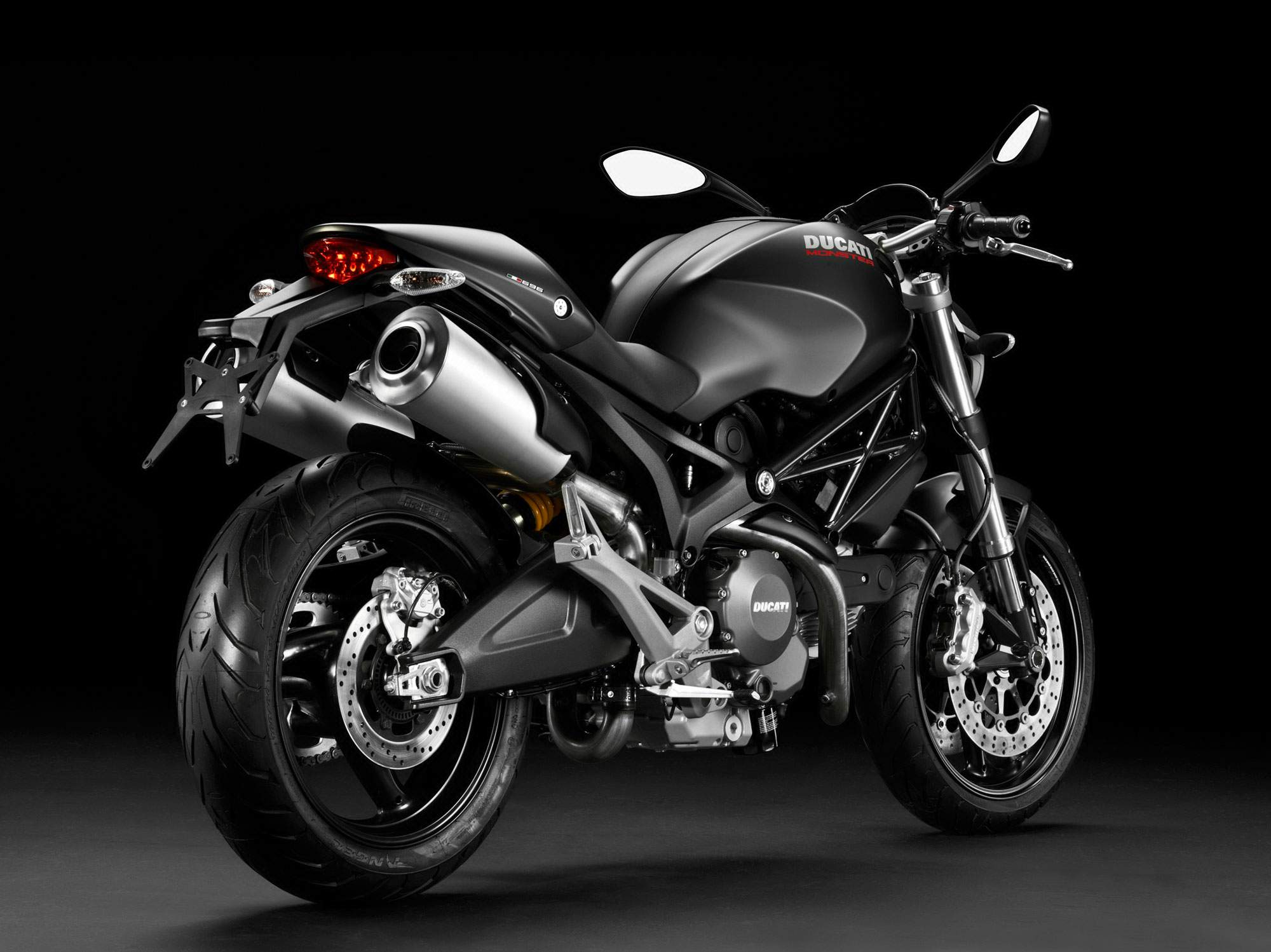

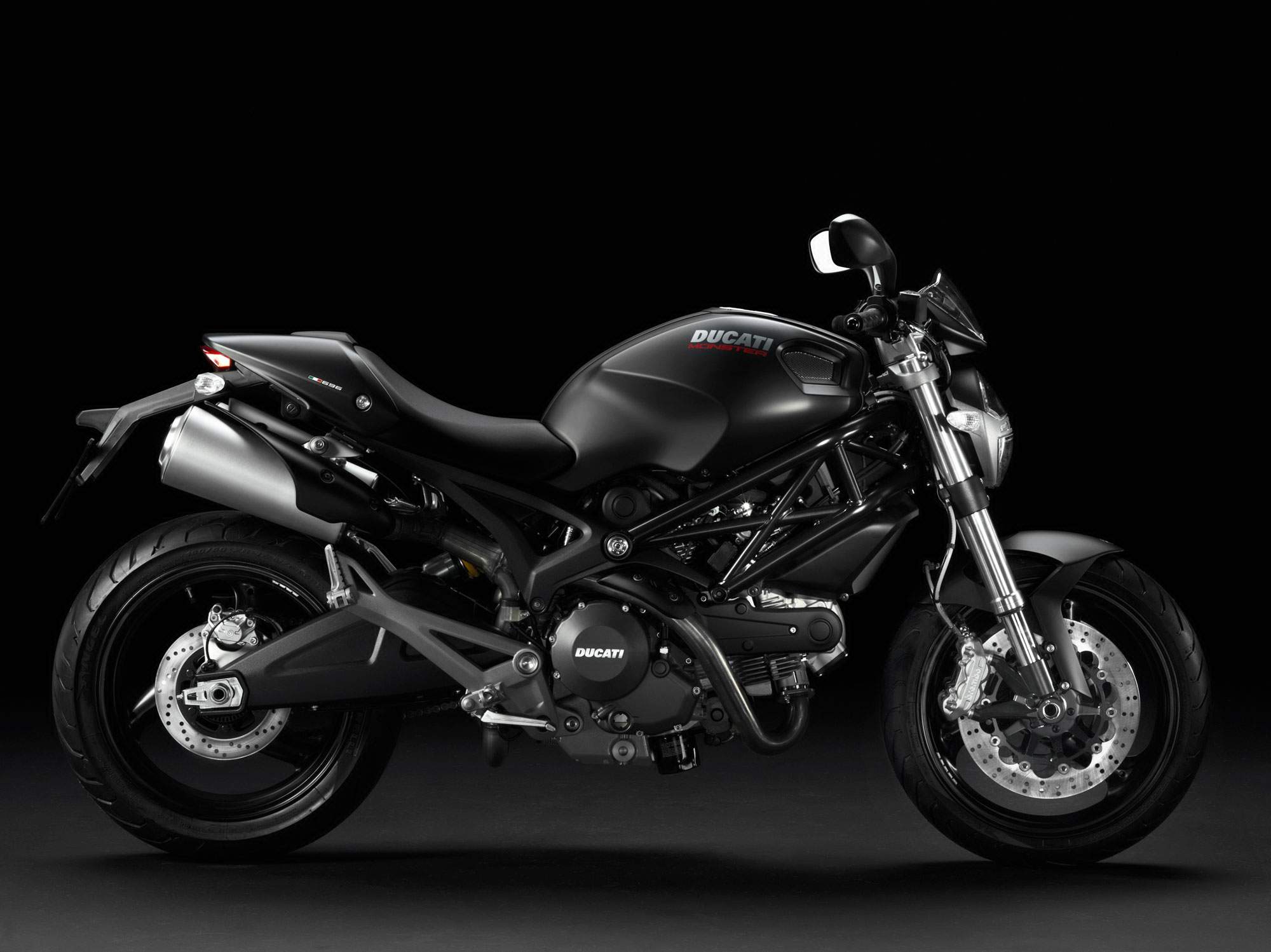

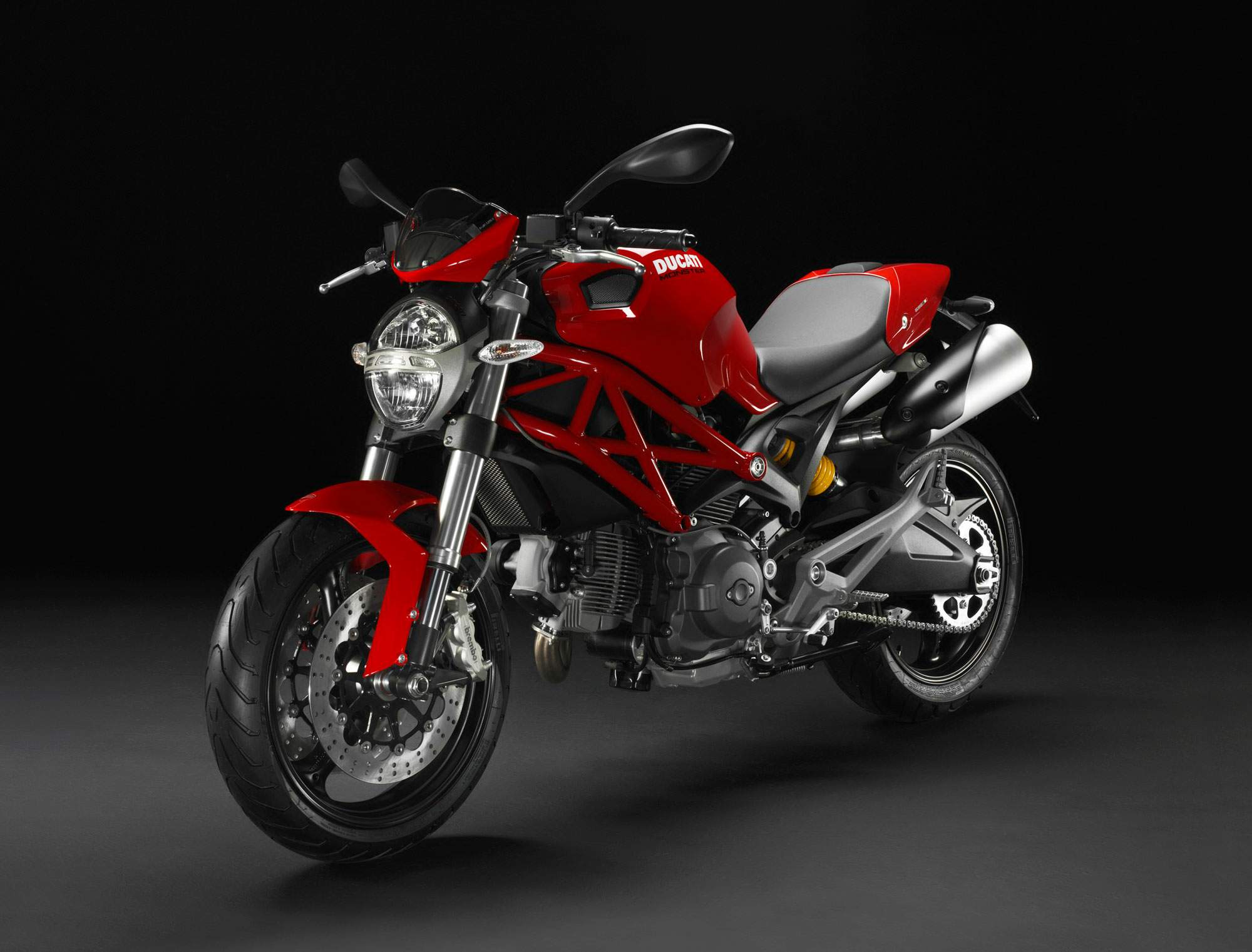

Ducati Monster 696 is produced in 2013. Engine is Four stroke, 90°“L”twin cylinder, SOHC, 2 desmodromic valves per cylinder, displacement 696 cc / 42.4 cu-in , produces power 58.8 kW / 78.8 hp @ 9000 rpm and 69 Nm / 7.0kgf-m / 50.9 ft-lb @ 7750 rpm. Ducati Monster 696 top speed is 210 km/h / 130mph. Ducati Monster 696 weighs 161 kg / 355 lbs. Ducati Monster 696 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Monster 696 |
| Years: | 2013 |
| Engine: | Four stroke, 90°“L”twin cylinder, SOHC, 2 desmodromic valves per cylinder |
| Capacity: | 696 cc / 42.4 cu-in |
| Bore x Stroke: | 88 x 57.2 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.7:1 |
| Induction: | Marelli Injection. Siemens electronic fuel injection, 45mm throttle body |
| Ignition: | Marelli electronic |
| Starting: | Electric |
| Exhaust: | Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
| Max Power: | 58.8 kW / 78.8 hp @ 9000 rpm |
| Max Torque: | 69 Nm / 7.0kgf-m / 50.9 ft-lb @ 7750 rpm |
| Clutch: | APTC wet multiplate with hydraulic control |
| Transmission: | 6 Speed |
| Final Drive: | Chain; front sprocket 15; rear sprocket 39 |
| Gear Ratio: | 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26 |
| Frame: | Tubular steel trellis frame |
| Front Suspension: | Progressive linkage with preload and rebound adjustable Sachs monoshock |
| Rear Wheel Travel: | 148 mm / 5.8 in |
| Front Brakes: | 2x 320 mm Discs, 4 piston calipers |
| Rear Brakes: | Single 245mm disc, 2 piston caliper |
| Wheels: | 3-spoke light alloy |
| Front Tyre: | 120/60 ZR17 |
| Rear Tyre: | 160/60 ZR17 |
| Rake: | 24° |
| Trail: | 87mm / 3.42 in |
| Wheelbase: | 1450mm / 57.1 in |
| Seat Height: | 770 mm / 30.3 in |
| Dry Weight: | 161 kg / 355 lbs |
| Wet-Weight: | 185 kg / 407 lbs |
| Fuel Capacity: | 15 Litres / 3.8 US gal / 3.3 Imp gal |
| Consumption Average: | 6.1 L/100 km / 16.4 km/l / 38.6 USmpg / 46.3 Imp mpg |
| Standing ¼ Mile: | 12.7 sec |
| Top Speed: | 210 km/h / 130mph |
