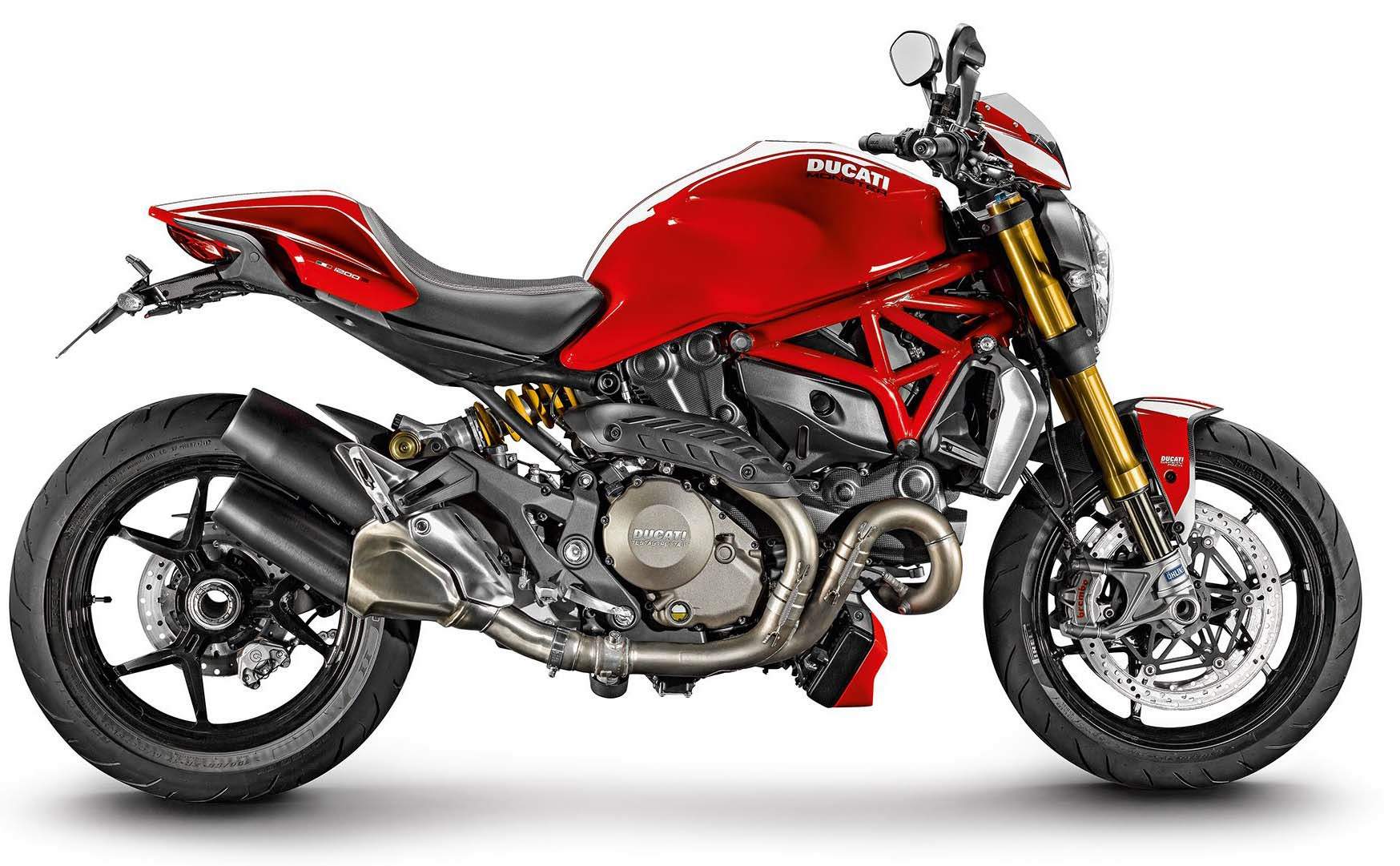

Ducati Monster 1200 S Stripe (2015) technical specifications

Ducati Monster 1200 S Stripe is produced in 2015. Engine is Four stroke, Testastretta 11° L-Twin, DOHC, 4 Desmodromically actuated valves per cylinder, displacement 1198 cc / 73.1 cu-in , produces power 108.2 kW / 145 hp @ 8750 rpm and 124.5 Nm / 12.7 kgf-m / 91.8 lb-ft @ 7250 rpm. Ducati Monster 1200 S Stripe weighs 182 kg / 401 lbs. Ducati Monster 1200 S Stripe has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Monster 1200 S Stripe
Years:	2015
Engine:	Four stroke, Testastretta 11° L-Twin, DOHC, 4 Desmodromically actuated valves per cylinder
Capacity:	1198 cc / 73.1 cu-in
Bore x Stroke:	106 x 67.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.5:1
Lubrication:	Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Induction:	Electronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Exhaust:	Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Ignition:	Marelli electronic
Starting:	Electric
Max Power:	108.2 kW / 145 hp @ 8750 rpm
Max Torque:	124.5 Nm / 12.7 kgf-m / 91.8 lb-ft @ 7250 rpm
Clutch:	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission:	6 Speed
Final Drive:	Chain, front sprocket 15; rear sprocket 41
Gear Ratio:	1st 37/15 2nd 30/17 3rd 27/20 4th 24/22 5th 23/24 6th 22/25
Primary Drive:	Straight cut gears, ratio 1.84:1
Frame:	Tubular steel Trellis frame attached to the cylinders head
Front Suspension:	Ohlins fully adjustable 48mm usd forks
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm
Rear Wheel Travel:	152 mm / 5.9 in
Front Brakes:	2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, radial pump with Bosch ABS as standard
Rear Brakes:	Single 245mm disc, 2-piston floating calliper with Bosch ABS as standard equipment
Front Tyre:	120/70 - ZR 7 Pirelli Diablo Rosso II
Rear Tyre:	190/55 - ZR17 Pirelli Diablo Rosso II
Front wheel:	Y shaped, 3-spoke in light alloy 3.50 x 17
Rear wheel:	Y-shaped 3-spoke in light alloy 6.00 x 17
Wheelbase:	1511 mm / 59.5in
Rake:	24.3°
Trail:	93.2 mm / 3.7 in
Seat Height:	785 mm - 810 mm / 30.9in - 31.9 in, adjustable
Dry Weight:	182 kg / 401 lbs
Wet-Weight:	209 kg / 461 lbs
Fuel Capacity:	17.5 Litres / 4.6 US gal / 3.8 Imp gal
Standard Equipment:	Riding modes,Power modes, DSP Ducati Safety Pack (ABS + DTC), RbW, passanger handles and seat cover, ready for anti-theft system and DDA
Instrumentation:	Colour TFT display
