Ducati Hyperstrada 820 (2014) technical specifications

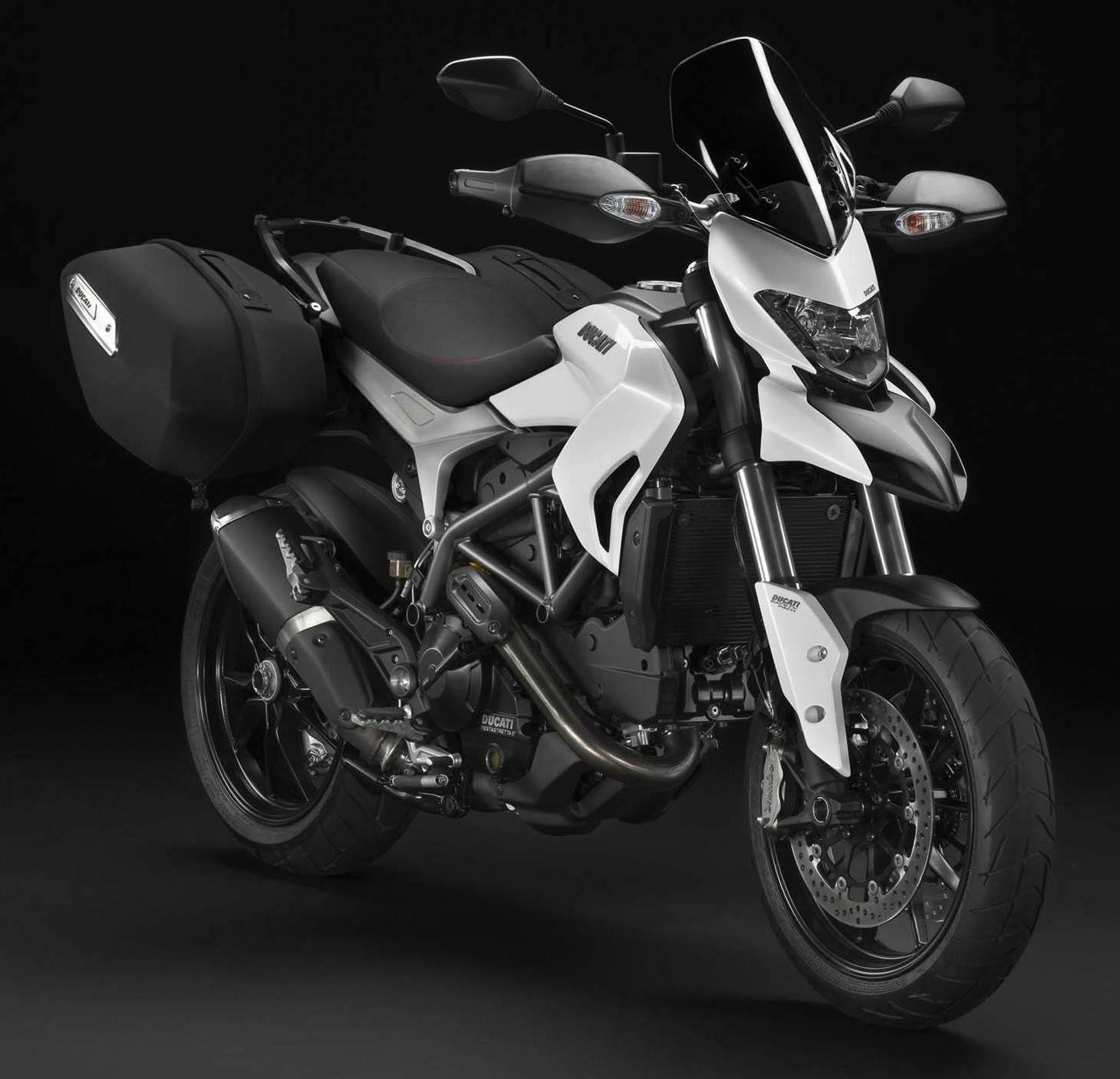

Ducati Hyperstrada 820 is produced in 2014. Engine is Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder, displacement 821 cc / 50.1 cu-in , produces power 110 hp / 80.9 kW @ 9250 rpm and 89.2 Nm / 9.1kgm / 65.8 kgf-m @ 7750 rpm. Ducati Hyperstrada 820 weighs 181 kg / 399 lbs. Ducati Hyperstrada 820 has 10 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Hyperstrada 820
Years:	2014
Engine:	Four stroke, Testastretta 11° L-Twin, 4 Desmodromically actuated valves per cylinder
Capacity:	821 cc / 50.1 cu-in
Bore x Stroke:	88 x 67.5 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.8:1
Induction:	Magneti Marelli electronic injection, 52mm throttle body, ride-by-wire
Ignition:	Marelli electronic
Starting:	Electric
Exhaust:	Exhaust '2 in 1 'with catalytic converter with twin lambda probe.
Max Power:	110 hp / 80.9 kW @ 9250 rpm
Max Torque:	89.2 Nm / 9.1kgm / 65.8 kgf-m @ 7750 rpm
Clutch:	APTC multi-disc wet clutch with control cable
Transmission:	6 Speed
Final Drive:	Chain, front sprocket 15, rear sprocket 45
Gear Ratio:	1st 37/15 / 2nd 30/17 / 3rd 28/20 / 4th 26/22 / 5th 24/23 / 6th 23/24
Primary drive:	Straight cut gears, ratio 1.84:1
Frame:	Tubular steel Trellis
Front Suspension:	Kayaba 43 mm upside-down
Front Wheel Travel.:	130 mm / 5.9 in
Rear Suspension:	Progressive with adjustable Sachs monoshock. Single-sided swingarm in aluminum,
Rear Wheel Travel.:	150 mm / 5.9 in
Front Brakes:	2 x 320mm semi-floating discs, Brembo Monobloc M4-32 radially mounted 4-piston calipers with ABS
Rear Brakes:	Single 245mm disc, 2-piston caliper with ABS
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Front wheel:	10-spoke in light alloy, 3.50" x 17"
Rear wheel:	10-spoke in light alloy, 5.50" x 17"
Rake:	25.5°
Trail:	104 mm / 4.0 in
Dimensions:	Length 2100 mm / 82.6 in Width 920 m m / 36.2 in Height 1320 mm / 51.9 in
Wheelbase:	1490 mm / 58.6 in
Seat Height:	850 mm / 33.5in (Low version: 830mm / 32.7in)
Dry Weight:	181 kg / 399 lbs
Wet Weight:	204 kg / 450 lbs
Fuel Capacity:	16 Litres / 4.2 US gal / 3.5 Imp gal
