Ducati Hypermotard 939 SP (2016) technical specifications

Ducati Hypermotard 939 SP is produced in 2016. Engine is Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic, displacement 937 cc / 57.2 cu in , produces power 83.1 kW / 113 hp @ 9000 rpm and 97.9 Nm / 9.98 kgf-m / 72.2 lb-ft @ 7500 rpm. Ducati Hypermotard 939 SP weighs 178 kg / 392 lbs. Ducati Hypermotard 939 SP has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Hypermotard 939 SP
Years:	2016
Engine:	Testastretta 11°, L-Twin cylinder, 4 valve per cylinder, Desmodromic
Capacity:	937 cc / 57.2 cu in
Bore x Stroke:	94 x 67.5 mm
Cooling System:	Liquid cooled
Compression Ratio:	13.1:1
Exhaust:	Single stainless steel muffler with catalytic converter and two lambda probes
Induction:	Magneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system
Ignition:	Electronic
Starting:	Electric
Max Power:	83.1 kW / 113 hp @ 9000 rpm
Max Torque:	97.9 Nm / 9.98 kgf-m / 72.2 lb-ft @ 7500 rpm
Clutch:	Slipper and self-servo wet multiplate clutch mechanically operated
Transmission:	6-Speed
Final Drive:	Chain, front sprocket 15, rear sprocket 43
Primary Drive:	Straight cut gears, 1.85:1 ratio
Gear Ratios:	1st 37:15 / 2nd 30:17 / 3rd 28:20 / 4th 26:22 / 5th 24:23 / 6th 23:24
Frame:	Tubular steel Trellis frame
Front Suspension:	Öhlins fully adjustable 50mm usd forks
Front Wheel Travel:	185 mm / 7.3 in
Rear Suspension:	Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
Rear Wheel Travel:	175 mm / 6.9 in

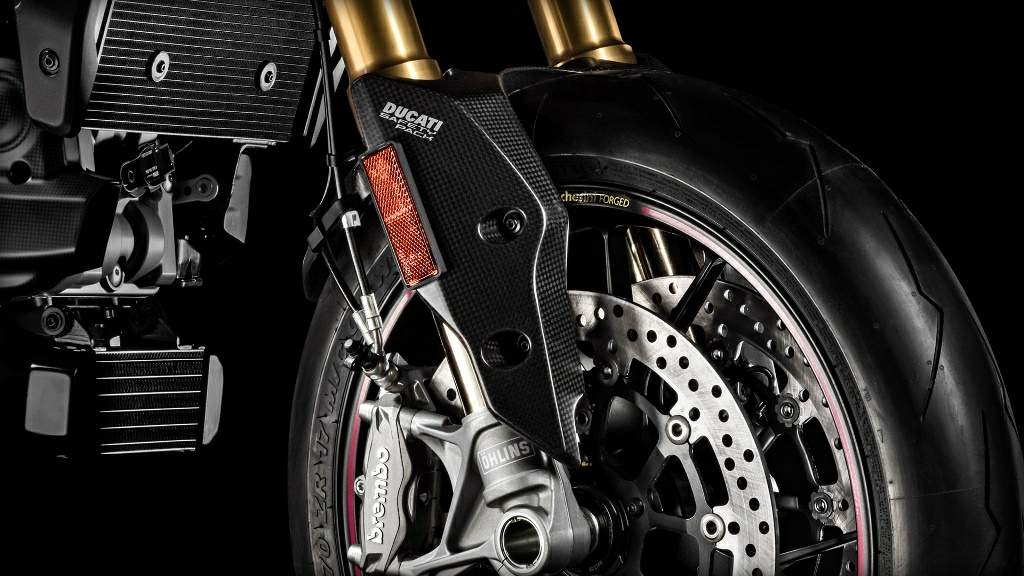

Front Brakes:	2 x 320 mm Semi-floating discs, radially mounted Brembo monobloc callipers, 4-piston 2-pad, axial pump with adjustable lever, with Bosch ABS as standard
Rear Brakes:	245 mm Disc, 2-piston calliper, with Bosch ABS as standard
Front Wheel:	3-Spoke in forged light alloy 3.50x17
Rear Wheel:	3-Spoke forged light alloy 5.50x17
Front Tyre:	Pirelli Diablo Supercorsa SP 120/70 ZR17
Rear Tyre:	Pirelli Diablo Supercorsa SP 180/55 ZR17
Rake:	25.5º
Trail:	104 mm / 4.1 in
Wheelbase:	1498 mm / 59.0 in
Seat Height:	890 mm / 35.0 in
Dry Weight:	178 kg / 392 lbs
Wet Weight:	201 kg / 443 lbs
Fuel Capacity:	16 Litres / 4.2 US gal / 3.5 Imp gal
