Ducati Hypermotard 1100 (2010) technical specifications

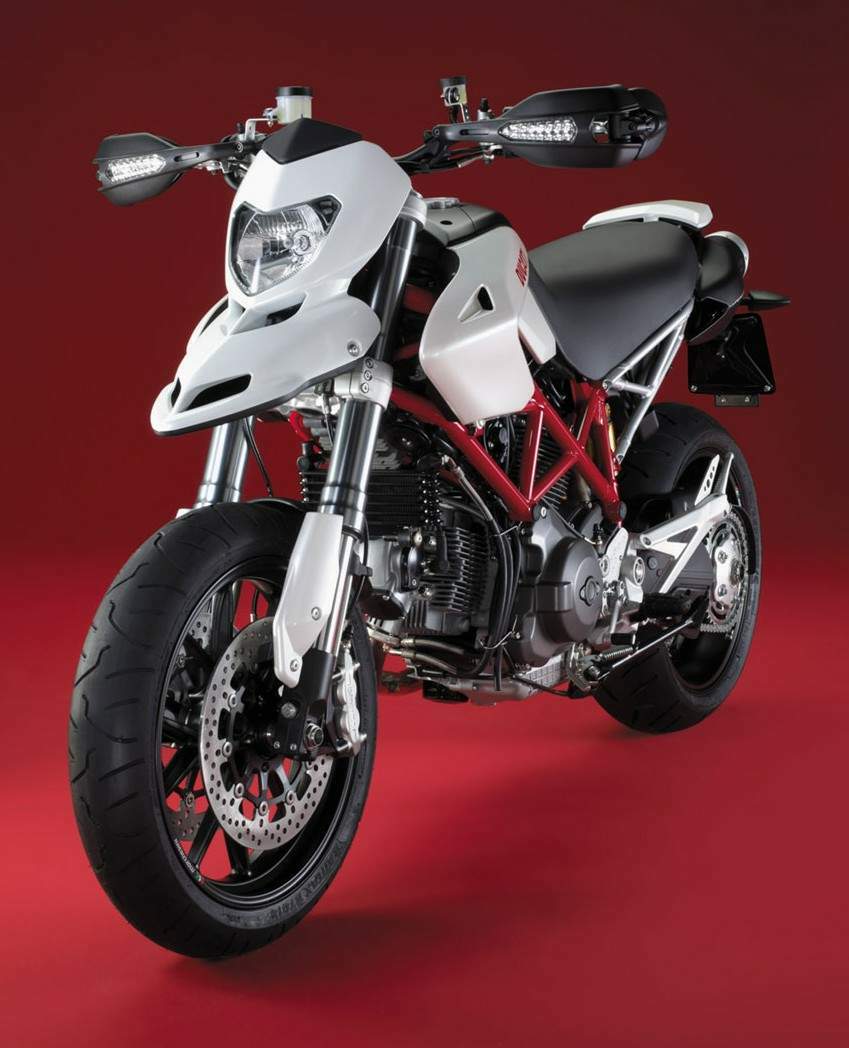

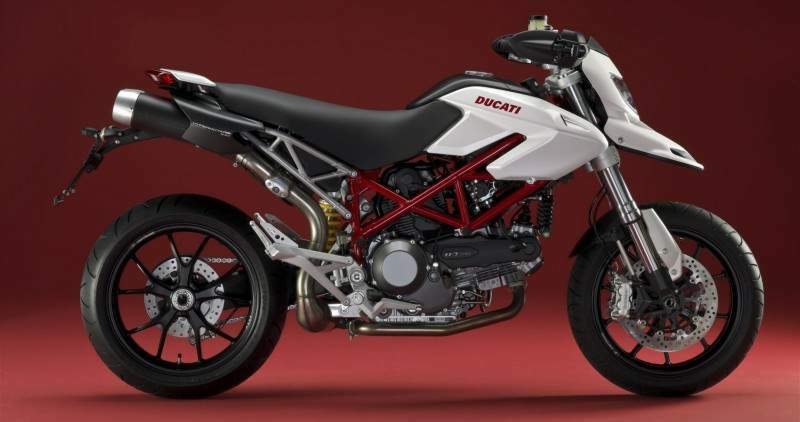

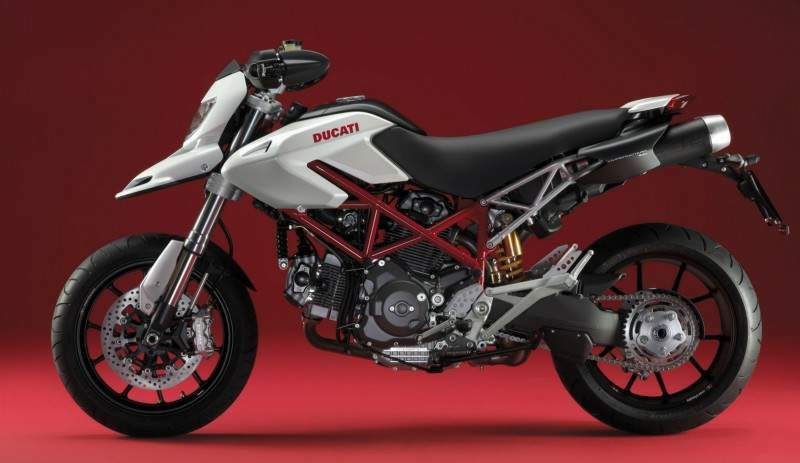

Ducati Hypermotard 1100 is produced in 2010. Engine is Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder, displacement 1078 cc / 65.8 cu in , produces power 69.3 kW / 90 hp / @ 7750 rpm and 102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 4750 rpm. Ducati Hypermotard 1100 weighs 179 kg / 395 lbs. Ducati Hypermotard 1100 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Hypermotard 1100 |
| Years: | 2010 |
| Engine: | Four stroke, 90° “L” twin cylinder, SOHC, desmodromic 2 valves per cylinder |
| Capacity: | 1078 cc / 65.8 cu in |
| Bore x Stroke: | 98 x 71.5 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 10.0:1 |
| Lubrication: | Wet sump |
| Engine Oil: | Synthetic, 15W-50 |
| Induction: | Fuel Injection, 45 mm throttle body |
| Exhaust: | Lightweight 2-1-2 system with catalytic converter and lambda probe |
| Ignition: | Marelli electronic |
| Starting: | Electric |
| Max Power: | 69.3 kW / 90 hp / @ 7750 rpm |
| Max Torque: | 102.9 Nm / 10.5 kgf-m / 76 lb-ft @ 4750 rpm |
| Clutch: | Dry multiplate with hydraulic control |
| Transmission: | 6 Speed |
| Final Drive: | Chain, front sprocket 15, rear sprocket 42 |
| Primary Drive: | Straight cut gears, ratio 1.84:1 |
| Gear Ratio: | 1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28 |
| Frame: | Tubular steel trellis |
| Front Suspension: | 50mm Marzocchi forks |
| Front Wheel Travel: | 165 mm / 6.5 in |
| Rear Suspension: | Fully adjustable Sachs shock mounted to a stout single-sided swingarm |
| Rear Wheel Travel: | 141 mm / 5.6 in |
| Front Brakes: | 2 x 305 mm Semi-floating discs, radially mounted Brembo Monobloc calipers 4-pistons, 2-pads |
| Rear Brakes: | Single 245mm disc, 2-piston caliper |
| Front Wheel: | 5-Spoke in light alloy 3.50 x 17 |
| Rear Wheel: | 5-Spoke light alloy 5,50 x 17 |
| Front Tyre: | 120/70 ZR 17 |
| Rear Tyre: | 180/55 ZR 17 |
| Rake: | 24° |
| Trail: | 100 mm / 3.9 in |
| Wheelbase: | 1455 mm / 57.28 in |
| Seat Height: | 845 mm / 33.2 in |
| Dry Weight: | 179 kg / 395 lbs |
| Fuel Capacity: | 12.4 Litres / 3.3 US gal / 2.7 Imp gal |
| Reviews: | 1000ps / MCN / 1000ps / Motorcycle-USA |
