Ducati Diavel Titanium (2015) technical specifications

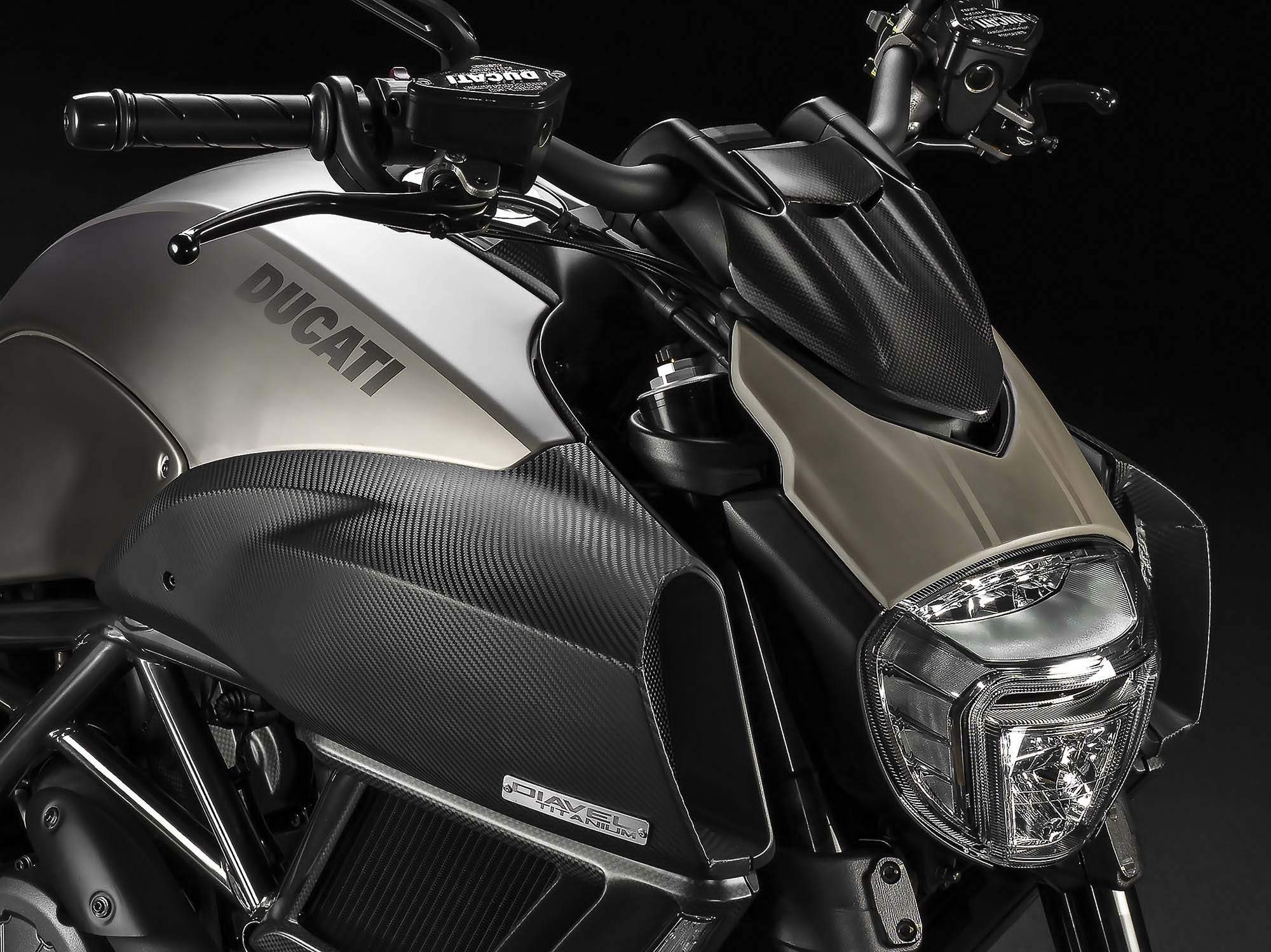

Ducati Diavel Titanium is produced in 2015. Engine is Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder., displacement 1198.4 cc / 73.1 cu-in , produces power 162 hp / 119 kW @ 9500rpm and 94 lb-ft / 127.5 Nm @ 8000rpm. Ducati Diavel Titanium weighs 207 Kg / 456.3 lbs. Ducati Diavel Titanium has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Diavel Titanium
Years:	2015
Engine:	Four stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder.
Capacity:	1198.4 cc / 73.1 cu-in
Bore x Stroke:	106 x 67.9mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5:1
Induction:	Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Exhaust:	Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Ignition:	Marelli electronic
Starting:	Electric
Max Power:	162 hp / 119 kW @ 9500rpm
Max Torque:	94 lb-ft / 127.5 Nm @ 8000rpm
Clutch:	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Transmission:	6 Speed
Final Drive:	Chain Front sprocket 15; Rear sprocket 43
Gear Ratio:	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Frame:	Tubular steel Trellis frame
Front Suspension:	Marzocchi 50mm fully adjustable USD forks,
Front Wheel Travel:	120 mm / 4.72 in
Rear Suspension:	Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rear Wheel Travel:	120 mm / 4.72 in
Front Brakes:	2 x 320mm semi-floating discs, radially mounted Monobloc Brembo callipers, 4-piston with ABS
Rear Brakes:	Single 265mm disc, 2-piston floating calliper with ABS
Front Tyre:	120/70 ZR 17
Rear Tyre:	240/45 ZR17
Rake:	28°
Steering angle (total):	70°
Dimensions:	Length 2235 mm / 87.9 in Width 860 mm / 33.8 in Height 1192 mm / 46.9 in
Wheelbase:	1590 mm / 62.6 in
Seat Height:	770 mm / 30.3 in
Dry Weight:	207 Kg / 456.3 lbs
Wet Weight:	234 kg / 515.8 lbs
Fuel Capacity:	17 Litres / 5.3 US gal
