Ducati 998 R (2002-03) technical specifications

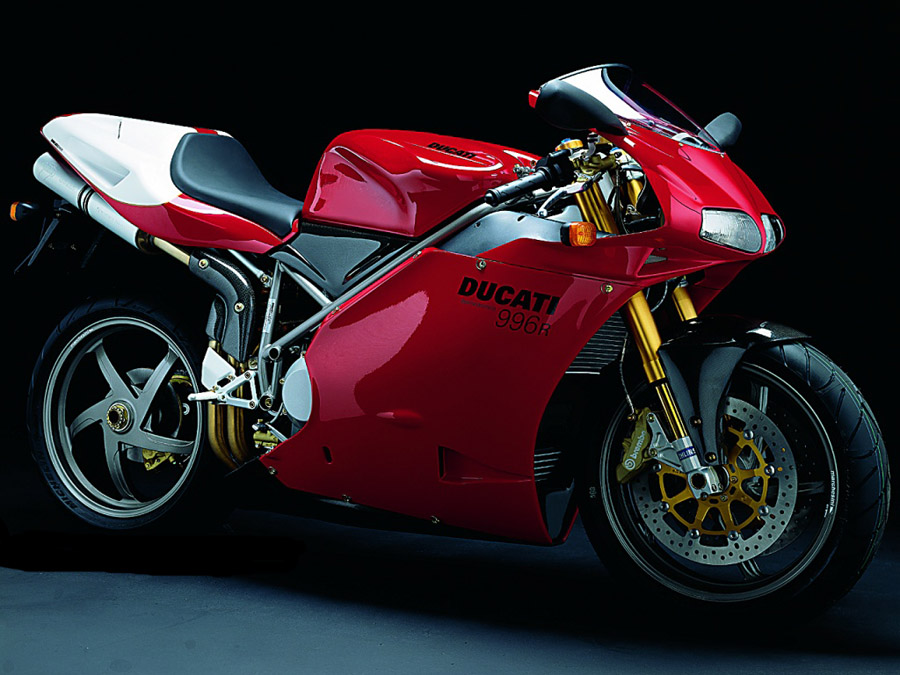

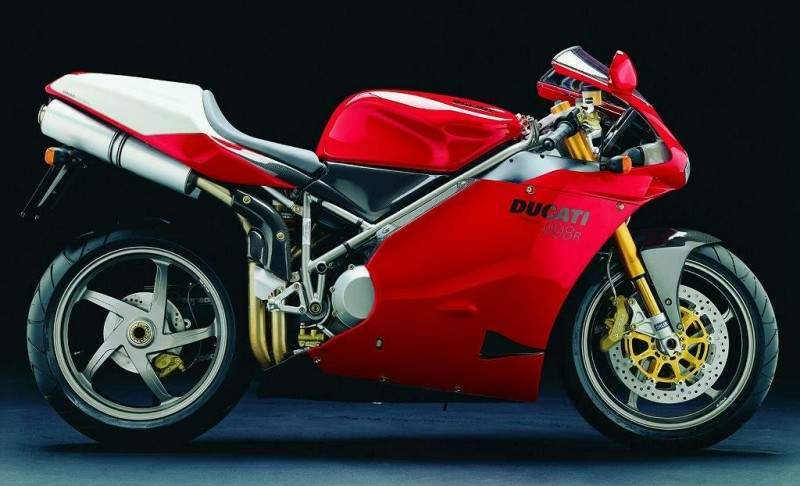

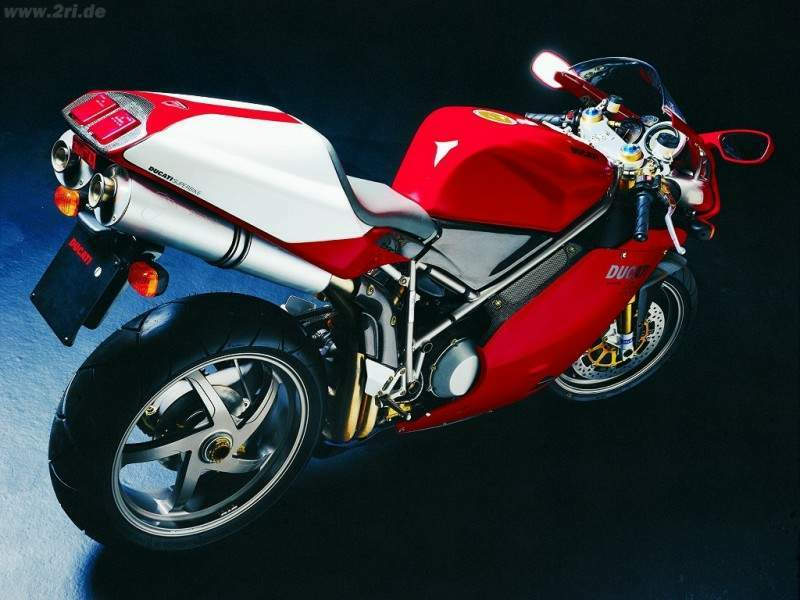

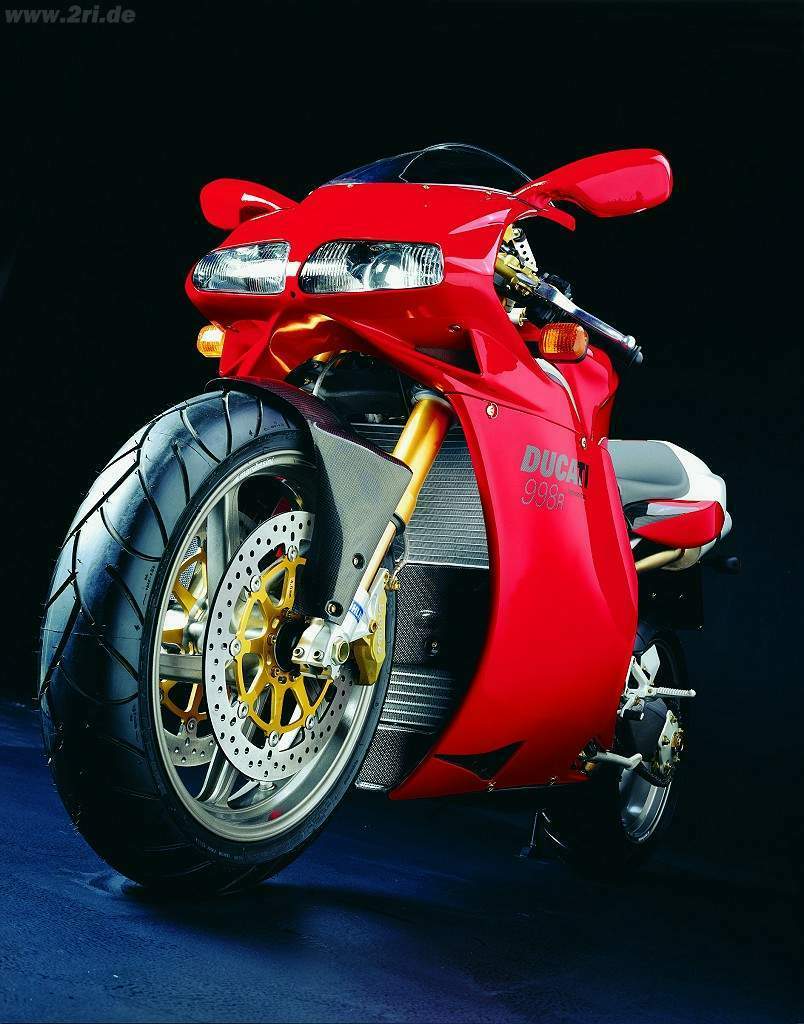

Ducati 998 R is produced in 2002-03. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valve per cylinder, belt driven, displacement 999 cc / 60.9 cu in , produces power 102 kW / 139 hp @ 10000 rpm and 105 Nm / 77.4 lb-ft @ 8000 rpm. Ducati 998 R top speed is 280 km/h / 174 mph. Ducati 998 R weighs 183 kg / 403 lbs. Ducati 998 R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	998 R
Years:	2002-03
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valve per cylinder, belt driven
Capacity:	999 cc / 60.9 cu in
Bore x Stroke:	104 x 58.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.3:1
Lubrication:	Wet sump
Induction:	Weber Marelli CPU 5.9M, 54mm throttle bodies, electronic fuel injection
Spark Plugs:	Champion RG4HC
Exhaust:	2 Aluminum mufflers by Termignoni
Ignition:	Digital CDI
Battery:	12V 10Ah
Starting:	Electric
Max Power:	102 kW / 139 hp @ 10000 rpm
Max Torque:	105 Nm / 77.4 lb-ft @ 8000 rpm
Clutch:	Dry multiplate with hydraulic control
Transmission:	6 Speed
Primary Drive Ratio:	1.84:1 (32/59), straight cut gears
Gear Ratios:	1st 2.466 / 2nd 1.765 / 3rd 1.400 / 4th 1.182/ 5th 1.043 / 6th 0.958:1
Final Drive Ratio:	2.40:1 1(5/36)
Final Drive:	Chain
Frame:	Tubular steel trellis
Front Suspension:	Öhlins upside down fork with 43 mm of condition pipe diameter, TiN coating
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	A arm rocker with progressively working Öhlins central shock strut
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x 320 mm Discs, 4 piston calipers
Rear Brakes:	Single 220 mm disc, 2 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	190/50 ZR17
Dimensions:	Length 2030 mm / 79.9 in Width 780 mm / 30.7 in Height 1080 mm / 42.5 in
Wheelbase:	1410 mm / 55.5 in
Seat Height:	790 mm / 31.1 in
Dry Weight:	183 kg / 403 lbs
Fuel Capacity:	17 L / 4.5 US gal / 3.7 Imp gal
Consumption Average:	5.8 L/100 km / 17.1 km/l / 40.2 US mpg / 48.3 Imp mpg
Standing ¼ Mile:	10.3 sec
Top Speed:	280 km/h / 174 mph
