Technical specifications
|

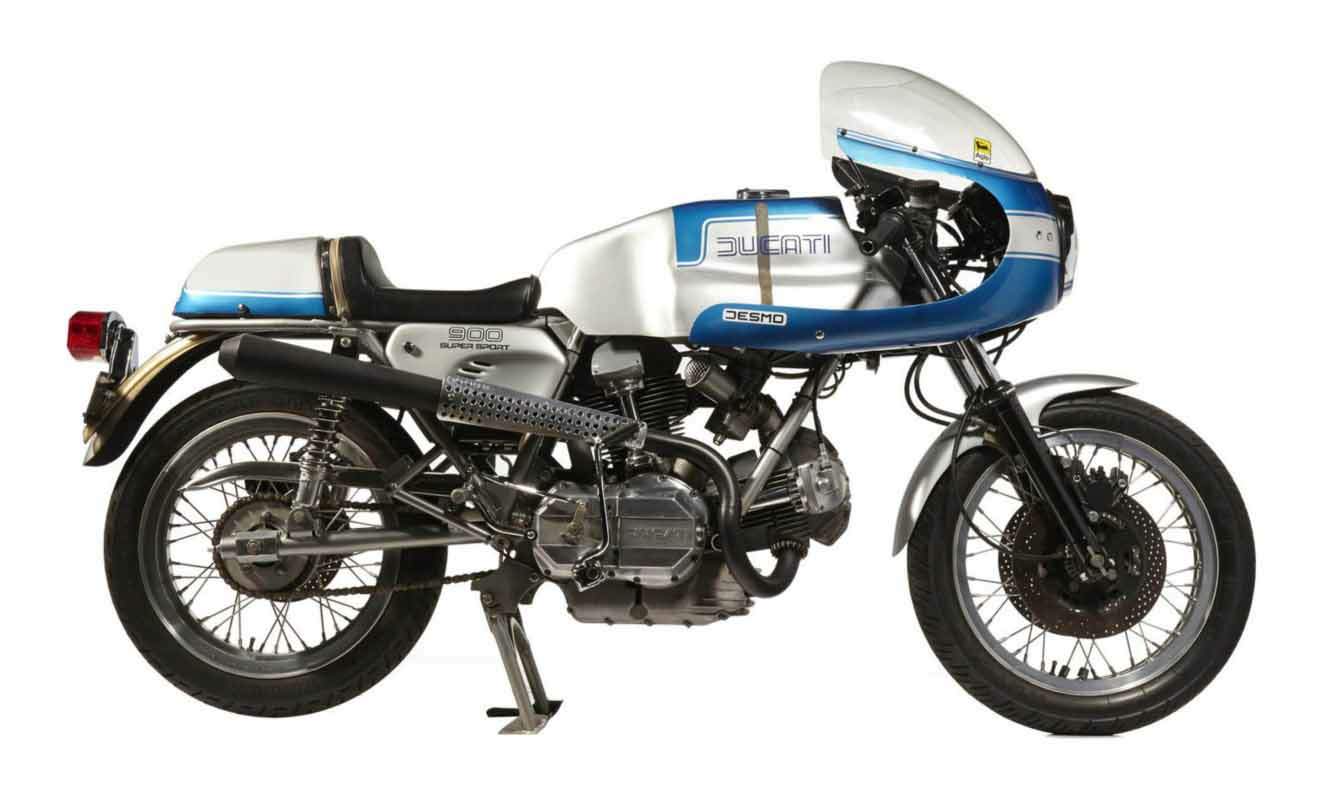

| Model: |
900SS Imola |
| Years: |
1976 |
|
Engine:
|
Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
|
|
Capacity:
|
864 cc / 52.7 cu in
|
|
Bore x Stroke:
|
86 x 74.4 mm
|
|
Compression Ratio:
|
9.5:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
2 x Dell'Orto PHM 40 A, B or C carburetors
|
|
Spark Plugs:
|
Champion L81 / L82Y / L88A / Bosch WM7B
|
|
Ignition:
|
Electronic
|
|
Battery:
|
Yuasa 12N/12A-4A-12V
|
|
Starting:
|
Kick (electric as an option)
|
|
Max Power:
|
58.8 kW / 80 hp @ 7500 rpm
|
|
Clutch:
|
Wet, multiplate
|
|
Transmission:
|
5 Speed
|
|
Primary Drive Ratio:
|
2.187:1 (32/70)
|
|
Gear Ratios:
|
1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887
|
|
Final Drive Ratio:
|
2.312:1 (16/37)
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
38 mm Marzocchi fork
|
|
Rear Suspension:
|
Marzocchi 310 mm dual shocks, 3-way adjustable
|
|
Front Brakes:
|
2 x 280mm Disc, 1 piston caliper
|
|
Rear Brakes:
|
Single 229 mm disc
|
|
Front Wheel:
|
3.50 - 18
|
|
Rear Wheel:
|
4.00 - 18
|
|
Dimensions:
|
Length: 2200 mm / 86.6 in Width: 675 mm / 26.6 in Height: 1050 mm / 41.3 in
|
|
Wheelbase:
|
1500 mm / 59.0 in
|
|
Seat Height:
|
760 mm / 29.9 in
|
|
Dry Weight:
|
188 kg / 414 lbs
|
|
Fuel Capacity:
|
20 L / 5.3 US gal / 4.4 Imp gal
|
|
Standing ¼ Mile:
|
12.6 sec
|
|
Top Speed:
|
217 km/h / 135 mph
|
|
Colours:
|
Silver frame, silver and blue
|
|
Manual:
|
Bevelheaven.com
|
