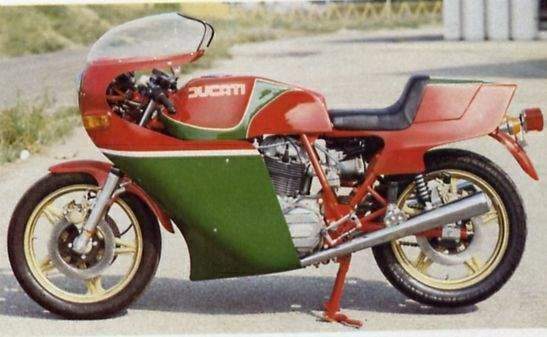

Ducati 900 MHR (Mike Hailwood Replica) (1979-81) technical specifications
Ducati 900 MHR (Mike Hailwood Replica) is produced in 1979-81. Engine is Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven, displacement 864 cc / 52.7 cu in , produces power 58.8 kW / 80 hp @ 7500 rpm. Ducati 900 MHR (Mike Hailwood Replica) top speed is 220 km/h / 137 mph. Ducati 900 MHR (Mike Hailwood Replica) weighs 205 kg / 452 lbs. Ducati 900 MHR (Mike Hailwood Replica) has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 900 MHR (Mike Hailwood Replica) |
| Years: | 1979-81 |
| Engine: | Four stroke, 90°“L”twin cylinder, SOHC, 2 valves per cylinder, bevel gear driven |
| Capacity: | 864 cc / 52.7 cu in |
| Bore x Stroke: | 86 x 74.4 mm |
| Compression Ratio: | 9.5:1 |
| Cooling System: | Air cooled |
| Induction: | 2 x Dell'Orto PHM 40B carburetors |
| Spark Plugs: | Bosch WM7B |
| Ignition: | Bosch electronic |
| Battery: | Yuasa 12N-12A-4A |
| Starting: | Kick |
| Max Power: | 58.8 kW / 80 hp @ 7500 rpm |
| Max Troque: | 86 Nm / 8.8 kgf-m / 63.5 ft-lb @ 5800 rpm |
| Clutch: | Wet, multiplate |
| Transmission: | 5 Speed |
| Primary Drive Ratio: | 2.187:1 (32/70) |
| Gear Ratios: | 1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887 |
| Final Drive Ratio: | 2.400:1 (15/36) |
| Final Drive: | Chain |
| Front Suspension: | 38 mm Marzocchi telescopic fork |
| Rear Suspension: | Marzocchi 330 mm dual shocks, 5-way adjustable |
| Front Brakes: | 2 x 280 mm Disc, 1 piston caliper |
| Rear Brakes: | Single 280 mm disc |
| Front Wheel: | 100/90 - V18 |
| Rear Wheel: | 120/90 - V18 |
| Dimensions: | Length: 2200 mm / 86.6 in Width: 700 mm / 27.6 in Height: 1280 mm / 50.4 in |
| Wheelbase: | 1510 mm / 59.4 in |
| Seat Height: | 780 mm / 30.7 in |
| Dry Weight: | 205 kg / 452 lbs |
| Braking: 100 km/h - 0: | 39 m / 128 ft |
| Fuel Capacity: | 18 L / 4.8 US gal / 4.0 Imp gal |
| Standing ¼ Mile: | 12.5 sec / 175 km/h / 109 mph |
| Top Speed: | 220 km/h / 137 mph |
| Colours: | Red frame, red, white and green |
| Manual: | Bevelheaven.com |
