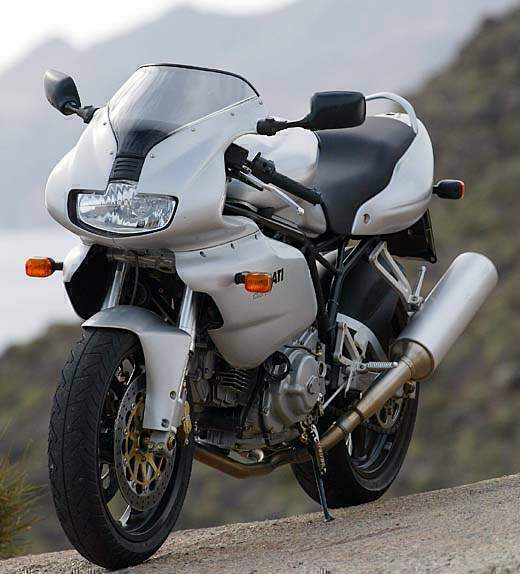

Ducati 620 Sport (2003) technical specifications
Ducati 620 Sport is produced in 2003. Engine is Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valve per cylinder, belt driven, displacement 618 cc / 37.7 cu in , produces power 45 kW / 61hp @ 8750 rpm and 54 Nm / 5.5 kgf-m /39.8ft-lb @ 6500 rpm. Ducati 620 Sport top speed is 195 km/h / 121.2 mph. Ducati 620 Sport weighs 182 kg / 401 lbs. Ducati 620 Sport has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 620 Sport |
| Years: | 2003 |
| Engine: | Four stroke, 90°“L”twin cylinder, SOHC, desmodromic 2 valve per cylinder, belt driven |
| Capacity: | 618 cc / 37.7 cu in |
| Bore x Stroke: | 80 x 61.5 mm |
| Compression Ratio: | 10.5:1 |
| Cooling System: | Air cooled |
| Induction: | Marelli CPU 5.9M electronic fuel injection, 45 mm throttle body |
| Spark Plugs: | ChampionRA4HC / NGK DCPR8E |
| Ignition: | Marelli electronic |
| Battery: | 12V 10Ah |
| Starting: | Electric |
| Max Power: | 45 kW / 61hp @ 8750 rpm |
| Max Torque: | 54 Nm / 5.5 kgf-m /39.8ft-lb @ 6500 rpm |
| Clutch: | Wet, multiplate |
| Transmission: | 5 Speed |
| Primary Drive Ratio: | 1.85:1 (33/61) |
| Gear Ratios: | 1st2.500 / 2nd 1.714 / 3rd 1.333 / 4th 1.074 / 5th 0.966:1 |
| Final Drive Ratio: | 2.60:1 (15/39) |
| Final Drive: | Chain |
| Front Suspension: | Marzocchi 43 mm upside-down fork |
| Rear Suspension: | Progressive cantilever linkage with fully adjustable, Sachs Boge monoshock with position-sensitive damping |
| Front Brakes: | 2x 320 mm Discs, 4 piston calipers |
| Rear Brakes: | Single 245 mm disc, 2 piston caliper |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 160/60 ZR17 |
| Dimensions: | Length: 2030 mm / 79.9 in Width: 780mm / 30.7 in Height: 1110mm / 43.7 in |
| Wheelbase: | 1405 mm / 55.3in |
| Seat Height: | 815mm / 32.1in |
| Dry Weight: | 182 kg / 401 lbs |
| Fuel Capacity: | 16 L / 4.2US gal / 3.5 Imp gal |
| Top Speed: | 195 km/h / 121.2 mph |
