Ducati 450 Scrambler Jupiter (1969-70) technical specifications

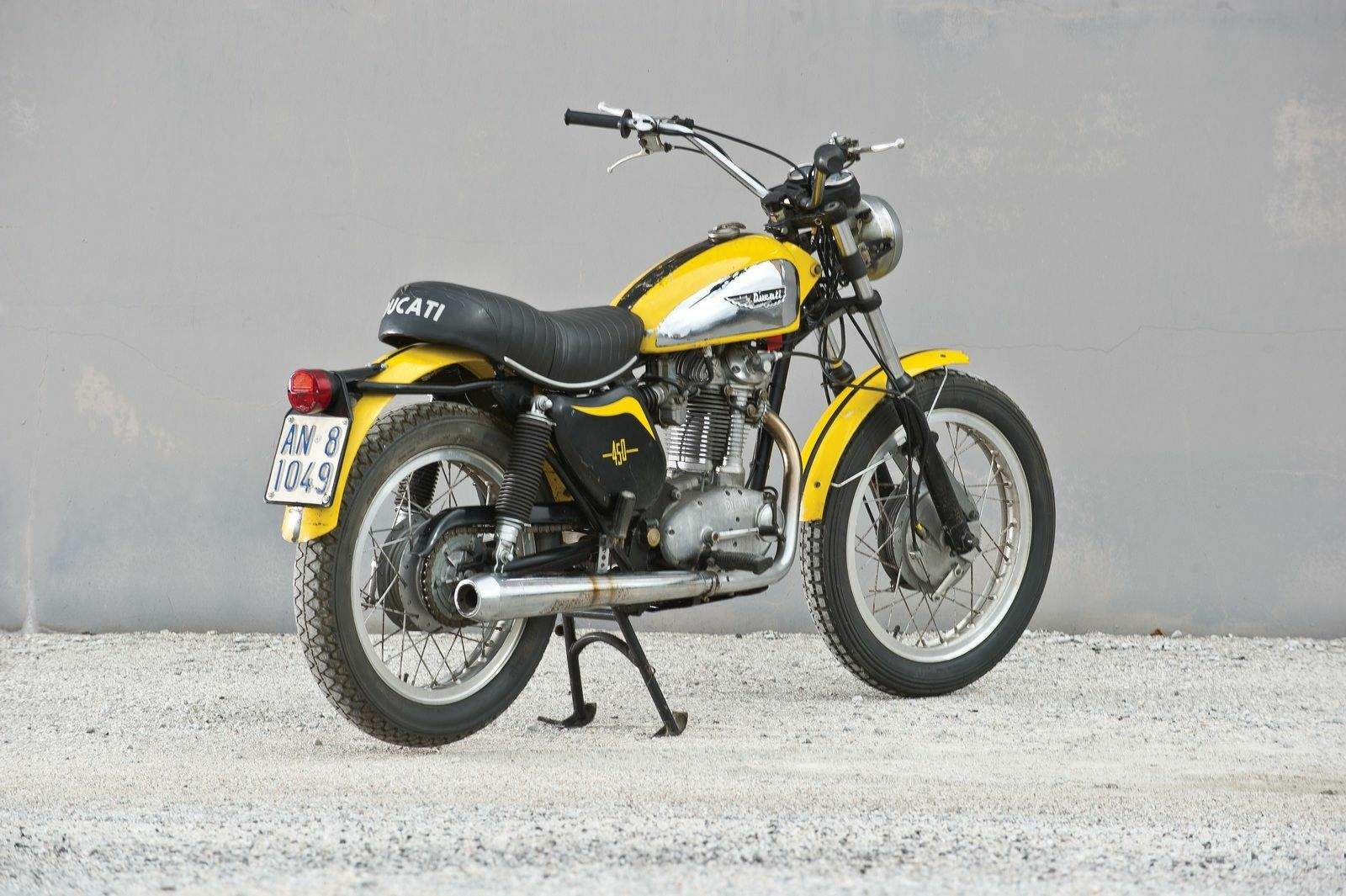

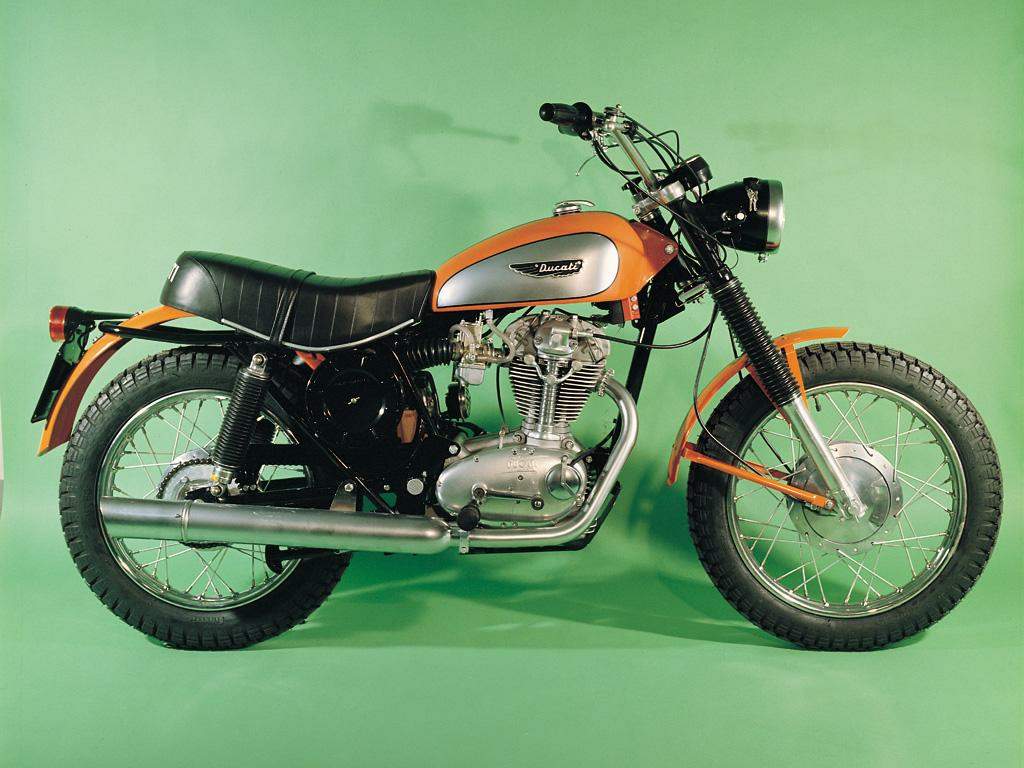

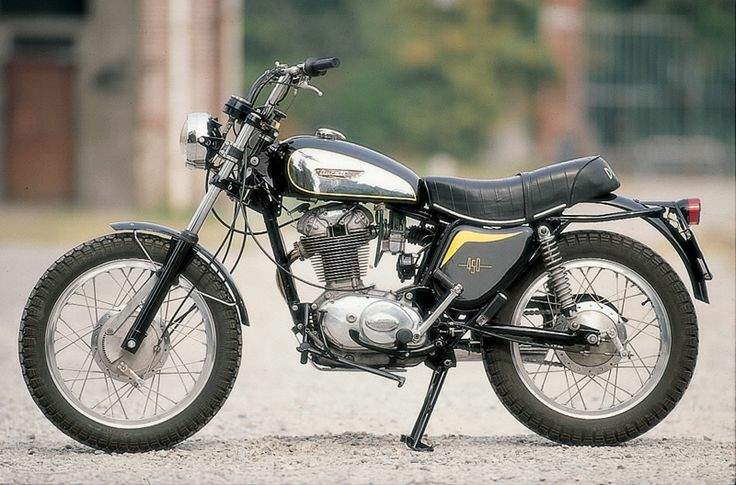

Ducati 450 Scrambler Jupiter is produced in 1969-70. Engine is Four stroke, single cylinder, SOHC, bevel gear driven, displacement 435.7 cc / 26.6 cu in , produces power 23 hp / 16.9 kW @ 6500 rpm. Ducati 450 Scrambler Jupiter weighs 133 kg / 293 lbs. Ducati 450 Scrambler Jupiter has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	450 Scrambler Jupiter
Years:	1969-70
Engine:	Four stroke, single cylinder, SOHC, bevel gear driven
Capacity:	435.7 cc / 26.6 cu in
Bore x Stroke:	86 x 75 mm
Compression Ratio:	9.3:1
Cooling System:	Air cooled
Induction:	Dell'Orto VHB 29 AD
Spark plug:	Marelli CW260N / Lodge 2HN
Ignition:	Points and coil (electronic from 1973)
Starting:	Kick
Battery:	SAFA 3L3, 13.5 Ah
Max Power:	23 hp / 16.9 kW @ 6500 rpm
Clutch:	Wet, multiplate
Transmission:	5 Speed
Primary Drive Ratio:	2.111:1 (27/57)
Gear Ratios:	1st 2.46 / 2nd 1.73 / 3rd 1.35 / 4th 1.10 / 5th 0.97:1
Final Drive Ratio:	2.917:1
Final Drive:	Chain
Front Suspension:	35 mm Marzocchi telescopic fork
Rear Suspension:	Swingarm, dual Marzocchi shocks, 3-way adjustable
Front Brakes:	Drum, 180 mm
Rear Brakes:	Drum, 160 mm
Front Tyre:	3.50 x 19, Pirelli
Rear Tyre:	4.00 x 18, Pirelli
Dimensions:	Length: 2120 mm / 83.5 in Width: 940 mm / 37.0 in Height: 1150 mm / 45.3 in
Wheelbase:	1380 mm / 54.3 in
Seat Height:	770 mm / 30.3 in
Dry Weight:	133 kg / 293 lbs
Fuel Capacity:	13 L / 3.4 US gal / 2.9 Imp gal
