Ducati 250 Monza (1968-72) technical specifications

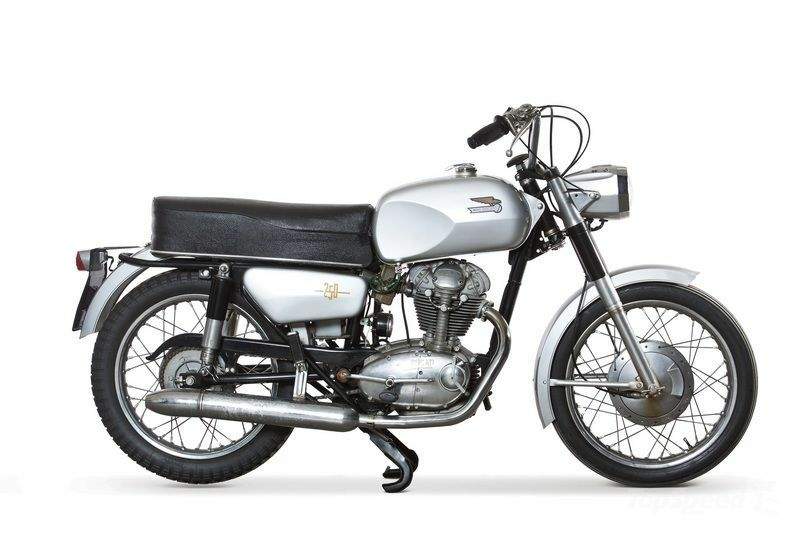

Ducati 250 Monza is produced in 1968-72. Engine is Four stroke, single cylinder, Desmo SOHC, 2 vlave, displacement 248 cc / 15.1 cu-in , produces power 15.33 kW / 21 hp @ 7200 rpm. Ducati 250 Monza weighs 125 Kg. Ducati 250 Monza has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 250 Monza |
| Years: | 1968-72 |
| Engine: | Four stroke, single cylinder, Desmo SOHC, 2 vlave |
| Capacity: | 248 cc / 15.1 cu-in |
| Bore x Stroke: | 74 x 57.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.5 : 1 |
| Induction: | 29mm Dell'Orto carburetor |
| Electrics: | Battery with flywheel alternator and electronic regulator |
| Starting: | Kick |
| Max Power: | 15.33 kW / 21 hp @ 7200 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Hydraulic telescopic fork |
| Rear Suspension: | Swingarm, dual shocks |
| Front Brakes: | 180mm Drum |
| Rear Brakes: | 160mm Drum |
| Front Tyre: | 2.75 -18 |
| Rear Tyre: | 3.00 -18 |
| Dry Weight: | 125 Kg |
| Fuel Capacity: | 13 Litres |
