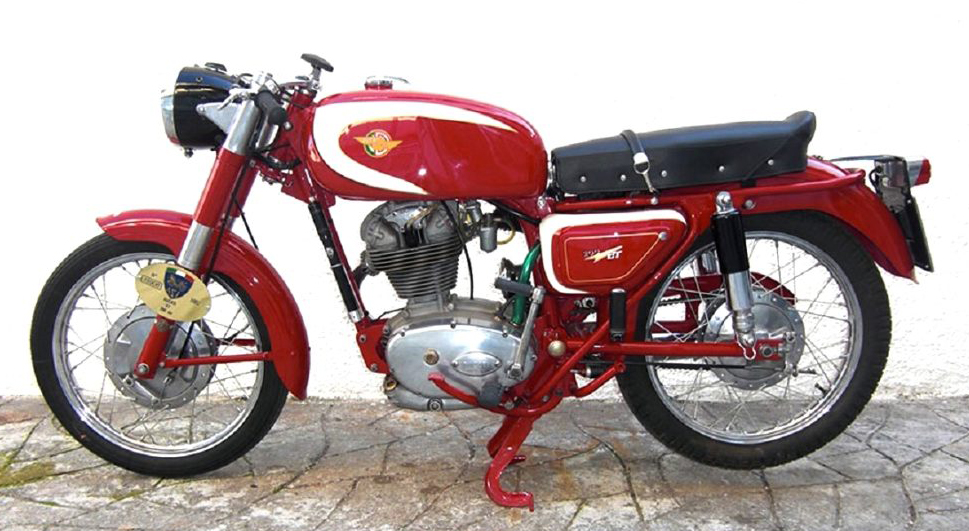

Ducati 200GT (1962-63) technical specifications
Ducati 200GT is produced in 1962-63. Engine is Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder, displacement 203.8 cc / 12.4 cu in , produces power 13.1 kW 18 hp @ 7500 rpm. Ducati 200GT top speed is 135 km/h / 84 mph. Ducati 200GT weighs Elite/SS: 111 kg / 244 lbs GT: 115 kg / 253 lbs. Ducati 200GT has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 200GT |
| Years: | 1962-63 |
| Engine: | Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder |
| Capacity: | 203.8 cc / 12.4 cu in |
| Bore x Stroke: | 67 x 57.8 mm |
| Compression Ratio: | 7.8:1 |
| Induction: | Dell'Orto UBF24BS carburetor |
| Ignition: | Points & coil, 6V 40 W generator |
| Spark Plug: | Marelli CW250A (GT: CW260N) |
| Battery: | SAFA 3L3, 13.5Ah |
| Starting: | Kick |
| Max Power: | 13.1 kW 18 hp @ 7500 rpm |
| Clutch: | Multi wet plate |
| Transmission: | 4 Speed |
| Primary Drive Ratio: | 2.520:1 |
| Gear Ratios: | 1st 2.75 / 2nd 1.65 / 3rd 1.18 / 4th 0.97:1 |
| Final Drive Ratio: | 2.812:1 |
| Final Drive: | Chain |
| Frame: | Single cradle |
| Front Suspension: | Hydraulic telescopic forks, Ducati 31.5 mm |
| Rear Suspension: | Swingarm, dual Marzocchi shocks, 3-way adjustable |
| Front Brakes: | 180 mm Drum |
| Rear Brakes: | 160 mm Drum |
| Front Tyre: | 2.75 -18 |
| Rear Tyre: | 3.00 -18 (GT: 2.75-18) |
| Dimensions: | Length: Elite/SS: 2000 mm / 78.7 in (GT: 1990 mm / 78.3 in) Width: 580 mm / 22.8 in Height: 965 mm / 38.0 in |
| Wheelbase: | 1320 mm / 52.0 in |
| Dry Weight: | Elite/SS: 111 kg / 244 lbs GT: 115 kg / 253 lbs |
| Fuel Capacity: | 17 L / 4.5 US gal / 3.7 Imp gal |
| Top Speed: | 135 km/h / 84 mph |
