Technical specifications
|
| Model: |

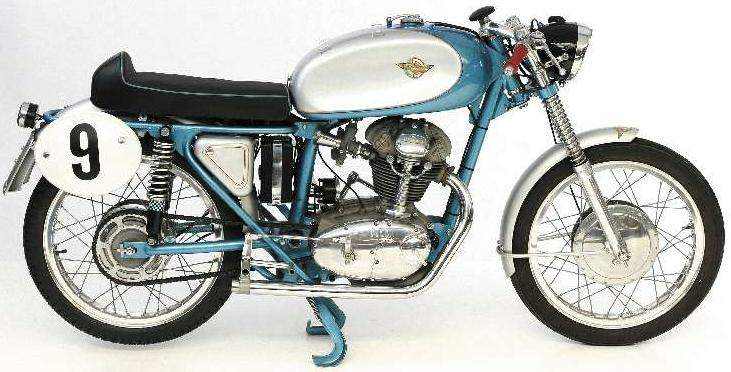

175 Gran Sport |
| Years: |
1957-62 |
|
Engine:
|
Four stroke, single cylinder, SOHC, shaft and bevel gear driven, 2 valves per cylinder
|
|
Capacity:
|
175.4 cc / 10.7 cu in
|
|
Bore x Stroke:
|
62 x 57.8 mm
|
|
Compression Ratio:
|
8.5:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
Dell'Orto SS1 22.5C carburetor
|
|
Ignition:
|
Battery / coil
|
|
Starting:
|
Kick
|
|
Max Power:
|
11.9 kW / 16 hp @ 9000 rpm
|
|
Clutch:
|
Multi wet plate, wet
|
|
Transmission:
|
4 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Single cradle tubular frame
|
|
Front Suspension:
|
Hydraulic telescopic fork
|
|
Rear Suspension:
|
Swingarm, dual shocks
|
|
Front Brakes:
|
Drum, full aluminium
|
|
Rear Brakes:
|
Drum, full aluminium
|
|
Front Tyre:
|
2.50 -18
|
|
Rear Tyre:
|
2.75 -18
|
|
Dry Weight:
|
103 kg / 227 lbs
|
|
Fuel Capacity:
|
17 L / 4.5 US gal / 3.7 Imp gal
|
|
Top Speed:
|
155 km/h / 96 mph
|
