Ducati 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler (1967-68) technical specifications

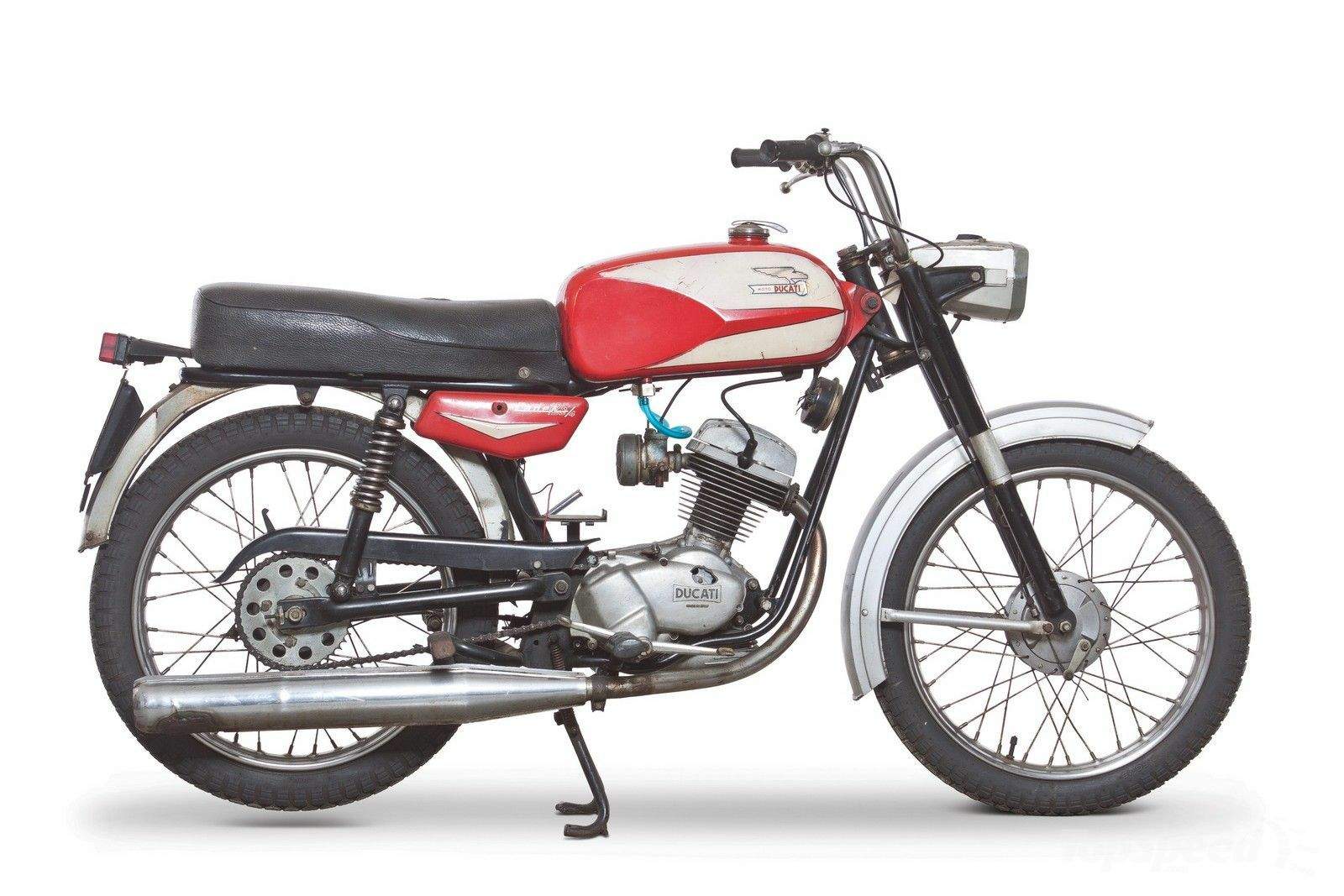

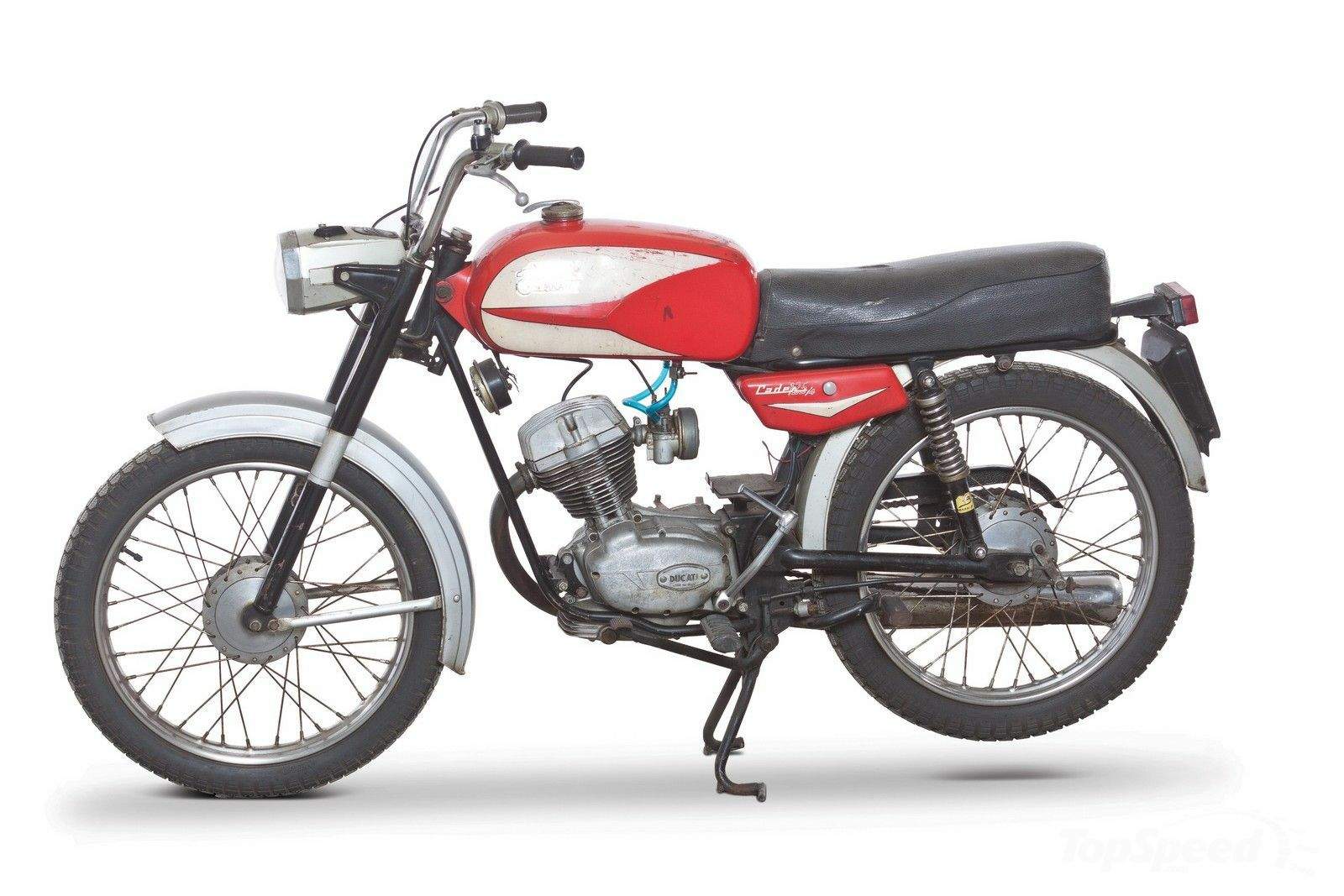

Ducati 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler is produced in 1967-68. Engine is Four stroke, single-cylinder, OHV, pushrod, displacement 121.3 cc / 7.4 cu in , produces power 4.8 kW / 6.5 hp @ 6500 rpm. Ducati 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler top speed is Cadet & Lusso: 95 km/h / 59 mph Scrambler: 80 km/h / 50 mph. Ducati 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler weighs Cadet & Lusso: 72 kg / 59 lbs Scrambler: 75 kg / 165 lbs. Ducati 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler has 2 photos.
Technical specifications
+ Add to 'Compare list'Model: | 125 Cadet/4 / Cadet/4 Lusso / Cadet/4 Scrambler |
Years: | 1967-68 |
Engine: | Four stroke, single-cylinder, OHV, pushrod |
Capacity: | 121.3 cc / 7.4 cu in |
Bore x Stroke: | 53 x 55 mm |
Compression Ratio: | 8.4:1 |
Cooling System: | Air cooled |
Lubrication System: | Dry sump |
Induction: | Dell'Orto ME18BS |
Ignition: | 6V, 28W generator, coil |
Starting: | Kick |
Max Power: | 4.8 kW / 6.5 hp @ 6500 rpm |
Transmission: | 4 Speed |
Final Drive: | Chain |
Front Suspension: | Marzocchi hydraulically damped telescopic forks |
Rear Suspension: | Swingarm, dual chocks |
Front Brakes: | 118 mm Drum |
Rear Brakes: | 118 mm Drum |
Front Tyre: | 1967 Cadet: 2.25 x 18 1968 Cadet & Lusso: 2.50 x 18 Scrambler: 2.75 x 18 |
Rear Tyre: | 1967 Cadet: 2.50 x 18 1968 Cadet & Lusso: 2.75 x 18 Scrambler: 3.25 - 3.50 x 16 |
Dimensions: | Length: 1810 mm / 71.3 in Height: 770 mm / 30.3 in |
Wheelbase: | 1160 mm / 45.7 in |
Seat Height: | 670 mm / 26.4 in |
Dry Weight: | Cadet & Lusso: 72 kg / 59 lbs Scrambler: 75 kg / 165 lbs |
Fuel Capacity: | 14 L / 3.7 Us gal / 3.1 Imp gal |
Top Speed: | Cadet & Lusso: 95 km/h / 59 mph Scrambler: 80 km/h / 50 mph |
