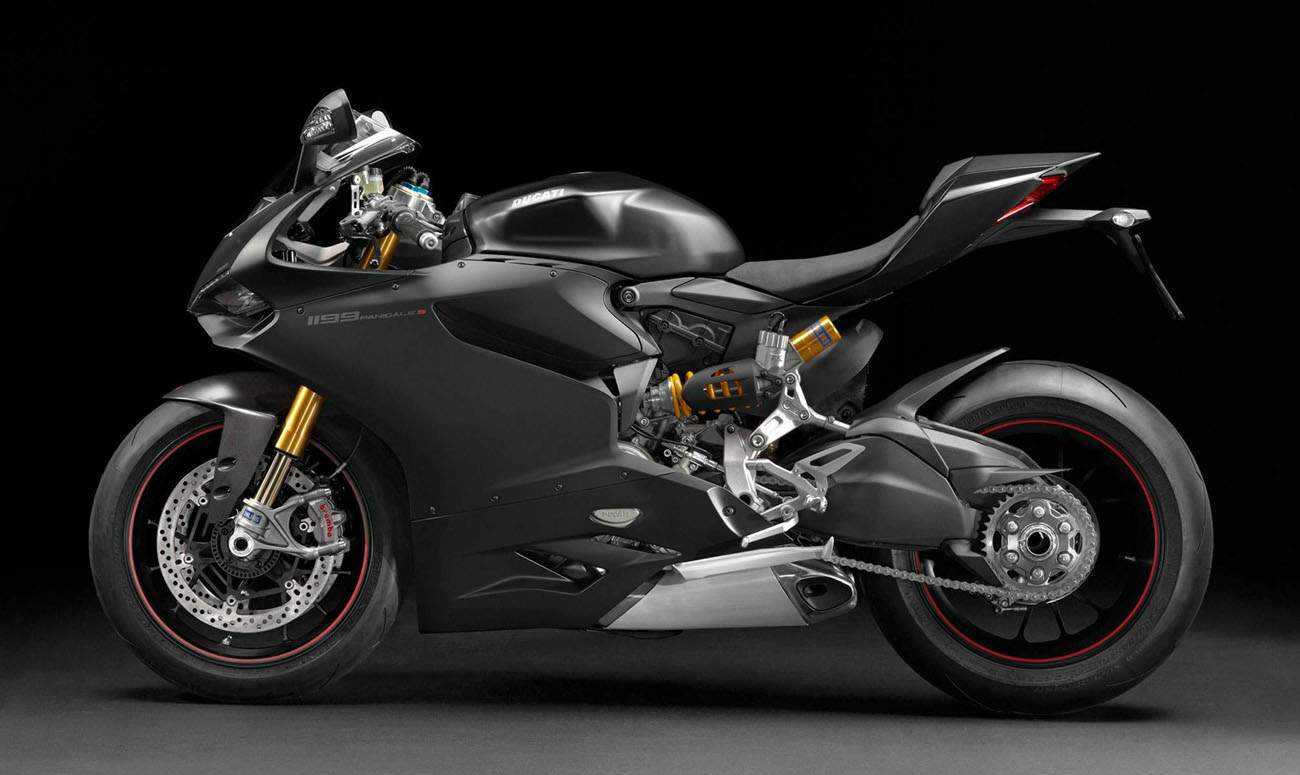

Ducati 1199S Panigale (2014) technical specifications

Ducati 1199S Panigale is produced in 2014. Engine is Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder., displacement 1199 cc / 71.2 cu in , produces power 143 kW / 195 hp @ 10750rpm and 132 Nm / 13.5 kgf-m / 97.4.1 lb-ft / @ 9000rpm. Ducati 1199S Panigale top speed is 287 km/h / 178 mph. Ducati 1199S Panigale weighs 164 kg / 361.5 lbs. Ducati 1199S Panigale has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	1199S Panigale
Years:	2014
Engine:	Four stroke, 90° “L” twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Capacity:	1199 cc / 71.2 cu in
Bore x Stroke:	112 x 60.8 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.5:1
Lubrication:	Wet sump
Induction:	Mitsubishi EFI, Full ride-by-wire elliptical throttle bodies
Exhaust:	2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Ignition:	Digital CDI
Starting:	Electric
Max Power:	143 kW / 195 hp @ 10750rpm
Max Torque:	132 Nm / 13.5 kgf-m / 97.4.1 lb-ft / @ 9000rpm
Clutch:	Slipper and self-servo wet multiplate clutch with hydraulic control
Transmission:	6 Speed
Primary Drive:	Straight cut gears, ratio 1.77:1
Gear Ratios:	1st 37/15, 2nd 30/16, 3rd 27/18, 4th 25/20, 5th 24/22, 6th 23/24
Final Drive:	Chain 525; front sprocket 15; rear sprocket 39
Frame:	Monocoque aluminum
Front Suspension:	Marzocchi 50 mm pressurised and fully adjustable USD fork with hard anodized aluminium lightweight slider
Front Wheel Travel:	120 mm / 4.72 in
Rear Suspension:	Fully adjustable Sachs unit. Electronic compression and rebound damping adjustment. Adjustable linkage: Progressive/flat. Aluminum single-sided swingarm
Rear Wheel Travel:	130mm / 5.12in
Front Brakes:	2 x 330 mm Semi-floating discs, radially mounted Brembo Monobloc M50 4-piston callipers, ABS optional +2.5kg (+5.5lb)
Rear Brakes:	Single 245 mm disc, 2 piston caliper
Front Tyre:	120/70 ZR17 Pirelli Diablo Supercorsa SP
Rear Tyre:	200/55 ZR14 Pirelli Diablo Supercorsa SP
Rake:	24.5°
Trail:	100 mm / 3.9 in
Dimensions:	Height 1100 mm / 43.31in Length 2075 mm / 81.69 in
Wheelbase:	1437 mm / 56.6 in
Seat Height:	824 mm / 32.4 in
Dry Weight:	164 kg / 361.5 lbs
Fuel Capacity:	17 L / 4.5 US gal / 3.7 Imp gal
Consumption Average:	5.95 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg
Standing ¼ Mile:	10.8 sec / 227.6 km/h / 141.4 mph
Standing Mile:	27 sec / 283 km/h / 176 mph
Top Speed:	287 km/h / 178 mph
